C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-342 Rev.1

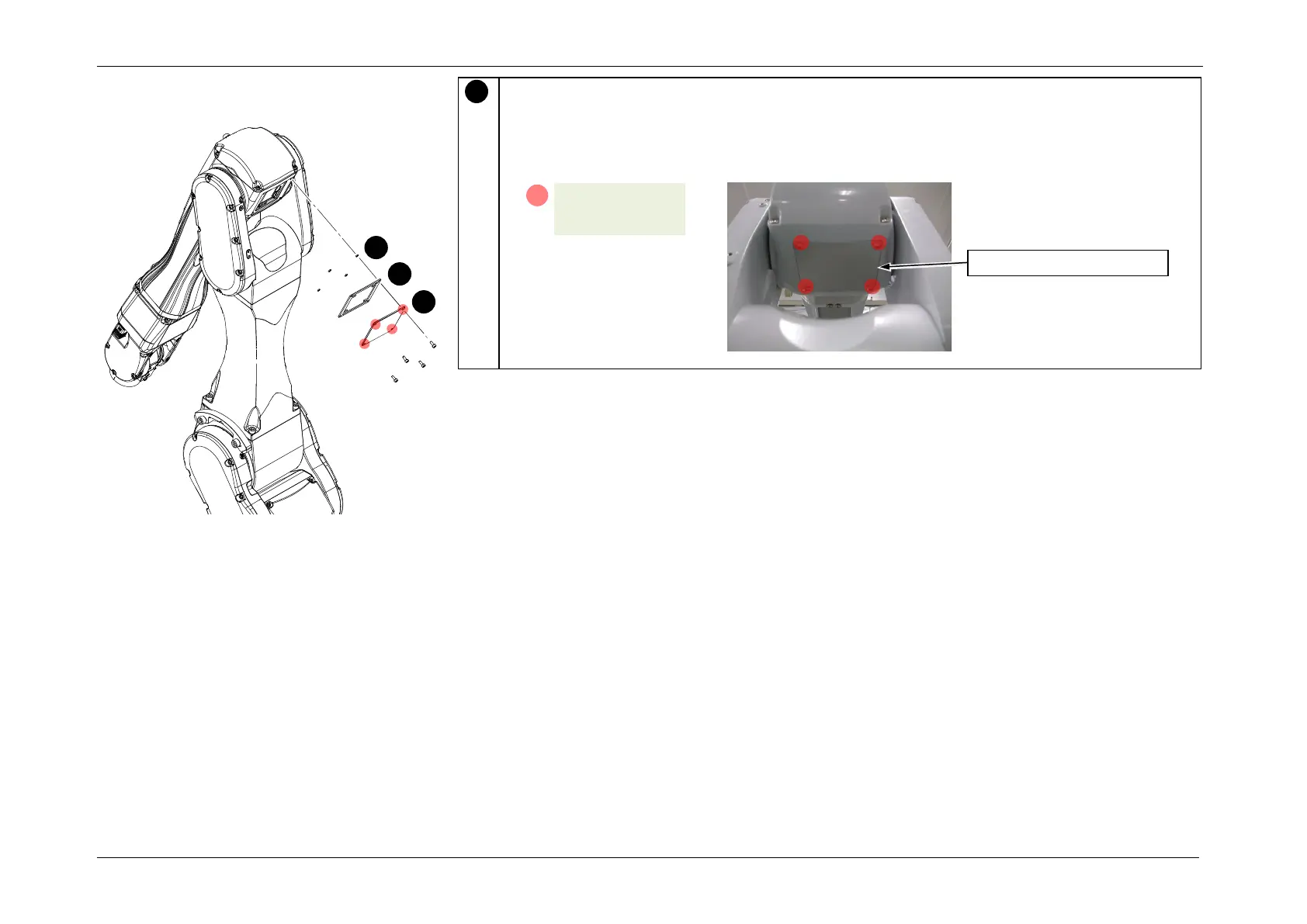

Install the Base Maintenance Cover.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
3
S01: 4-M4x10
(4.0 +/- 0.2 N⋅m)
A
Arm3 maintenance cover
Arm3 Maintenance Cover: Protection
Model Installation
1
2
3
Installation
