C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-341 Rev.1
B. Installation

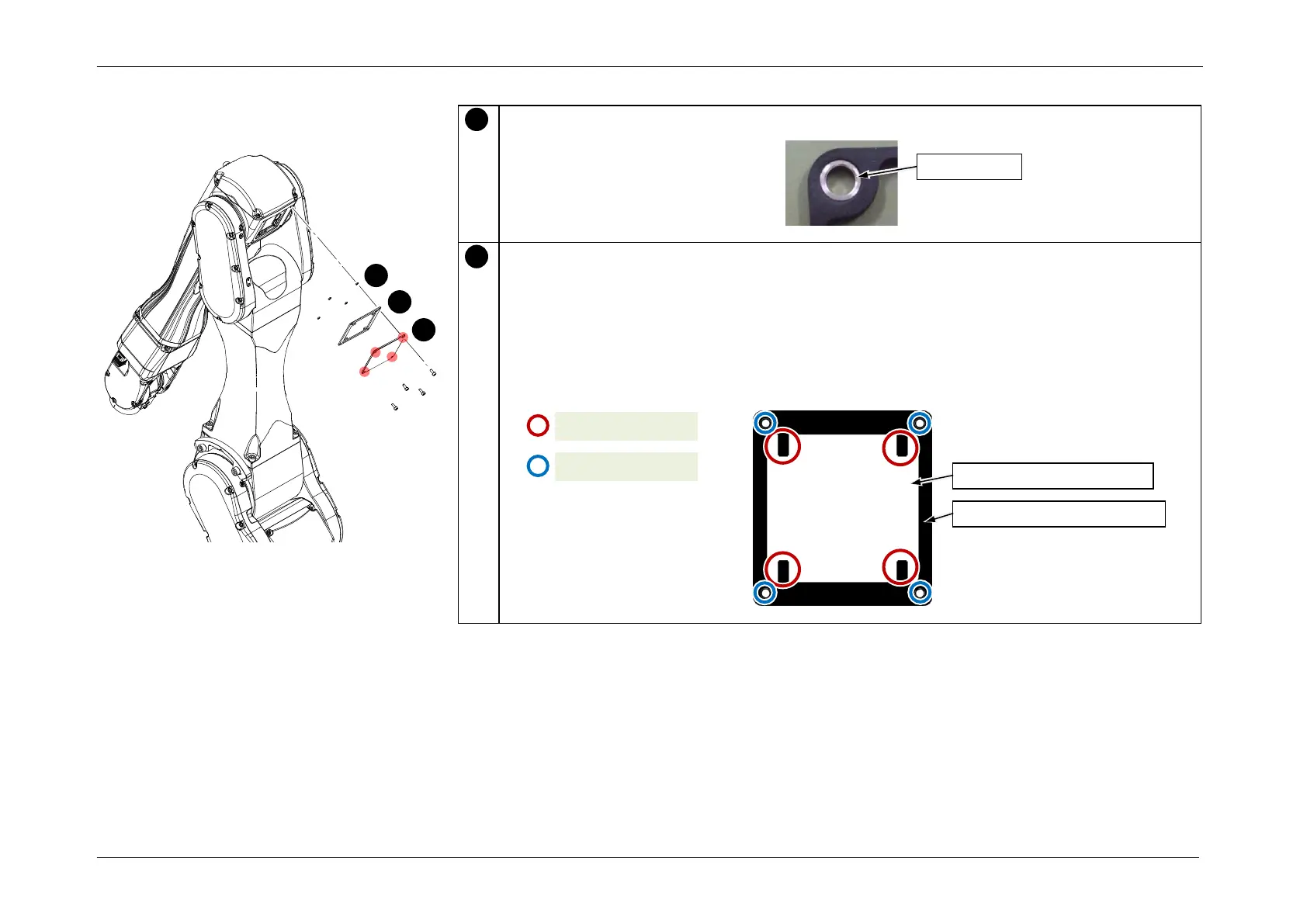

Install the spacers on the holes in the Rubber Gasket. (4 places)
Apply the liquid gasket to the Arm3 maintenance gasket, and secure the Arm3
maintenance gasket to the Arm3 maintenance cover.
POINT
• After applying the liquid gasket, leave it until the liquid gasket becomes solid and the
Rubber Gasket is fixed.
• If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
1
Spacer
2
Arm3 maintenance cover
Arm3 maintenance gasket
Gasket applying
position
Spacer
1
2
3
