C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-340 Rev.1

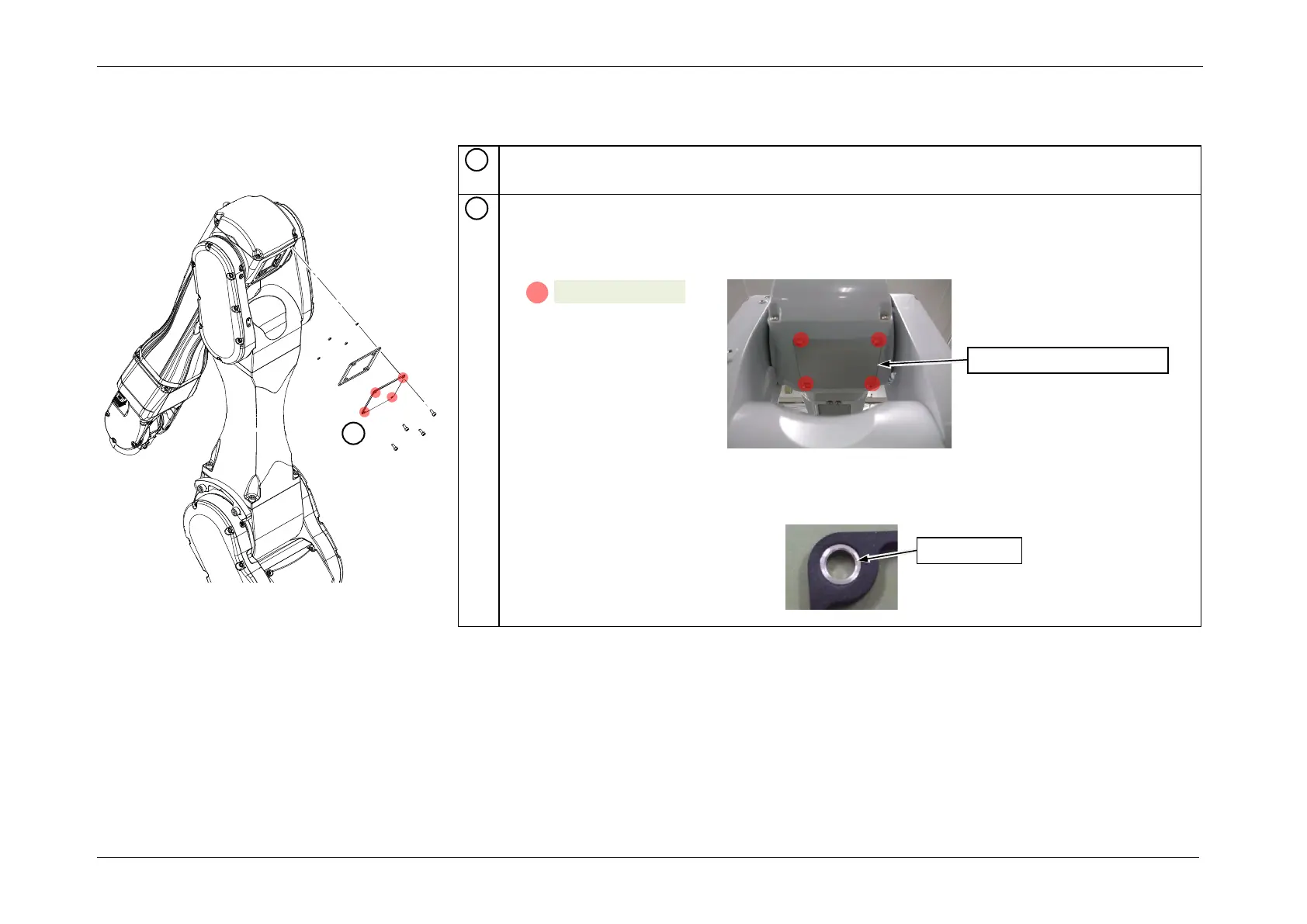

Protection Model
A. Removal
Move the arm to a position where the cover can be easily removed.
Remove the Arm3 maintenance cover.
POINT
When removing the Arm3 maintenance cover, also remove the Arm3 maintenance gasket.
CAUTION
The Rubber Gasket has spacers. Be careful not to lose these spacers.
1
2
Spacer
S01: 4-M4x10
A
Arm3 maintenance cover
2
