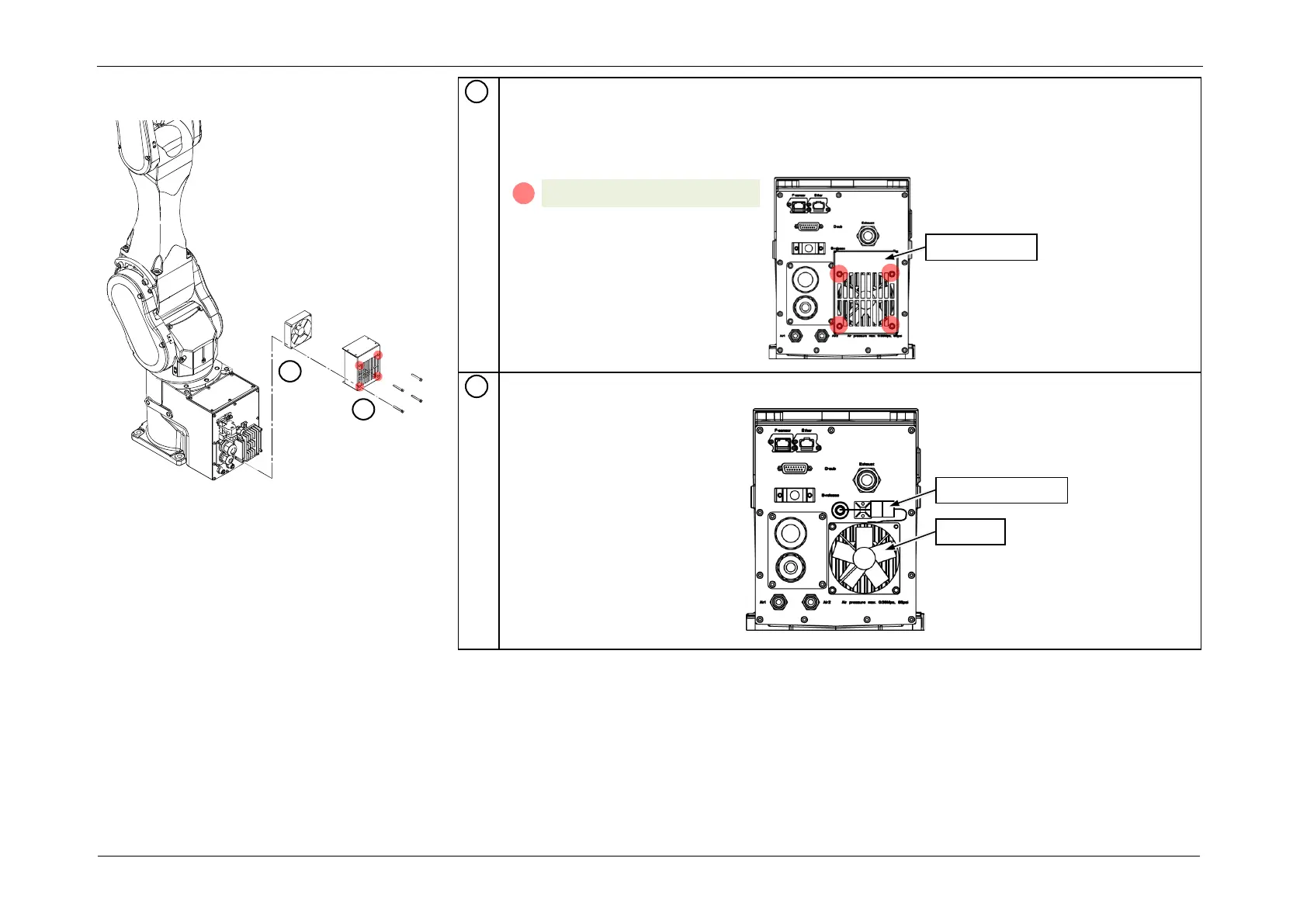

Remove the fan cover.
POINT
Removing the screws will cause the fan cover to drop, so remove the screws while
supporting the fan cover.
Disconnect the connector (FAN), and remove the fan.
1
S04: 4-M4x35 with washer
A
Fan cover
2
Connector (FAN)
Fan
2
1
Removing the Fan
