C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-83 Rev.1

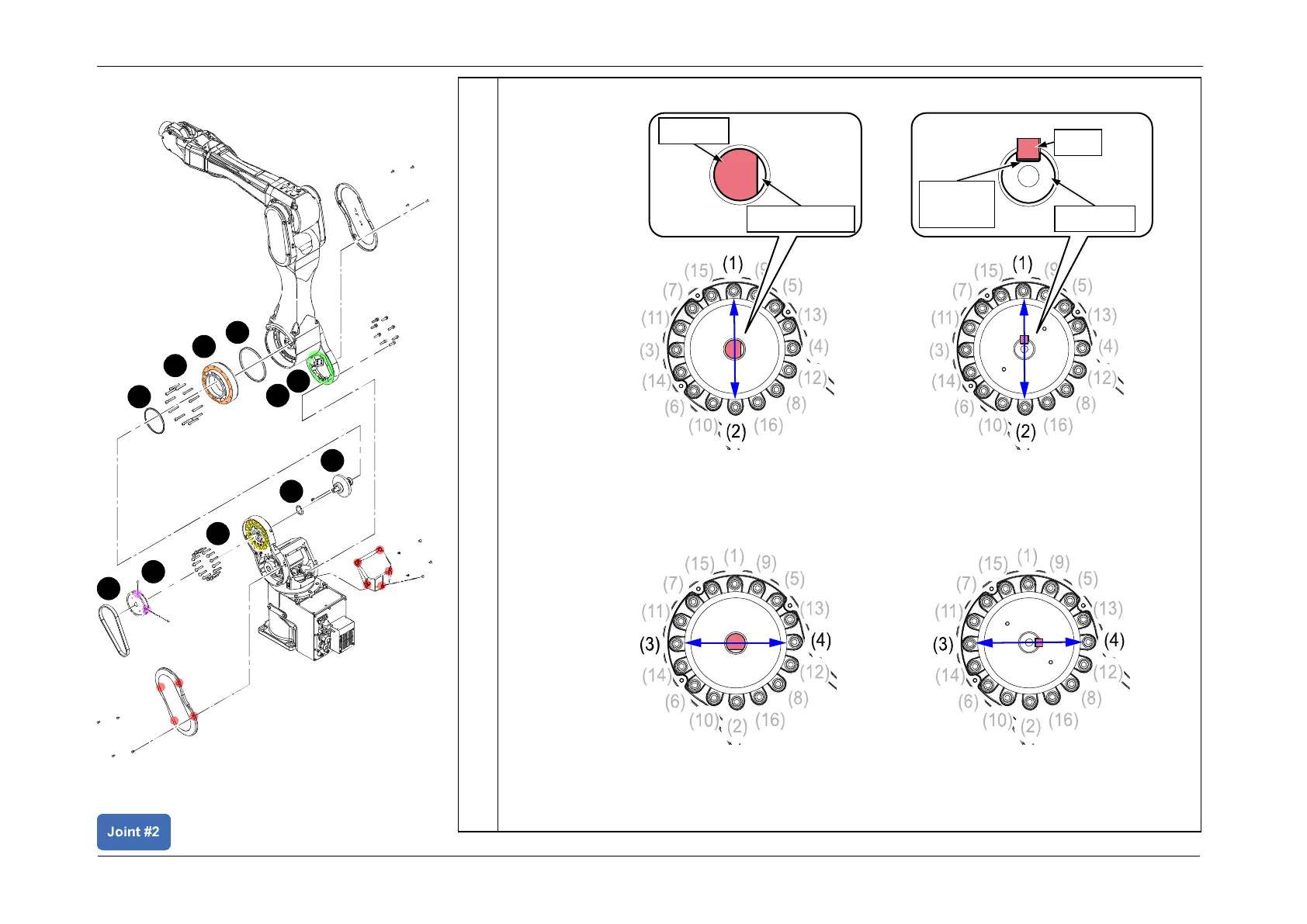

1. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
2. Tighten screws (1) and (2) to 20% of the torque value.
3. Tighten screws (1) and (2) to 40% of the torque value.
4. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
5. Tighten screws (3) and (4) to 20% of the torque value.
6. Tighten screws (3) and (4) to 40% of the torque value.
C8L
C8XL/C12XL
Shaft
Key
D-cut surface
Shaft
D-cut
surface
C8L
C8XL/C12XL
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
