C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-87 Rev.1

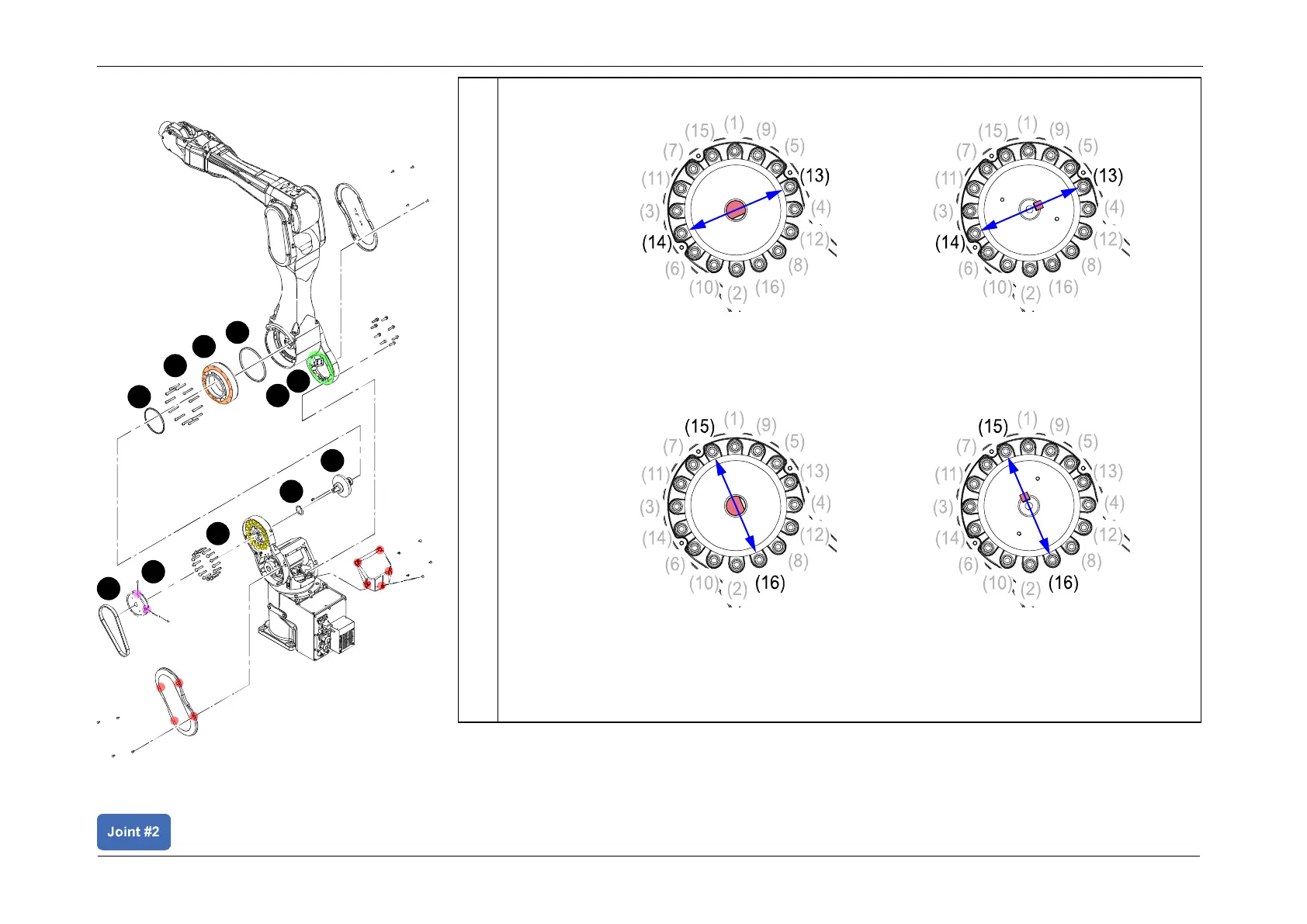

21. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
22. Tighten screws (13) and (14) to 40% and 100% of the torque value.
23. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
24. Tighten screws (15) and (16) to 40% and 100% of the torque value.
POINT
After securing the arm, manually move the arm to check that there is no rattling or
misalignment of the Reduction Gear.
C8L
C8XL/C12XL
C8L
C8XL/C12XL
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
