C8-B/C12-B Service Manual Maintenance Information Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 1-11 Rev.1
How to check the Manipulator operation hours
The Manipulator operation hours can be checked in [Controller Status Viewer] dialog - [Motor On Hours].
1. Select EPSON RC+ menu- [Tools] - [Controller] to open the [Controller Tools] dialog.
2. Click the <View Controller Status> button to open the [Browse For Folder] dialog.
3. Select the folder where the information is stored.

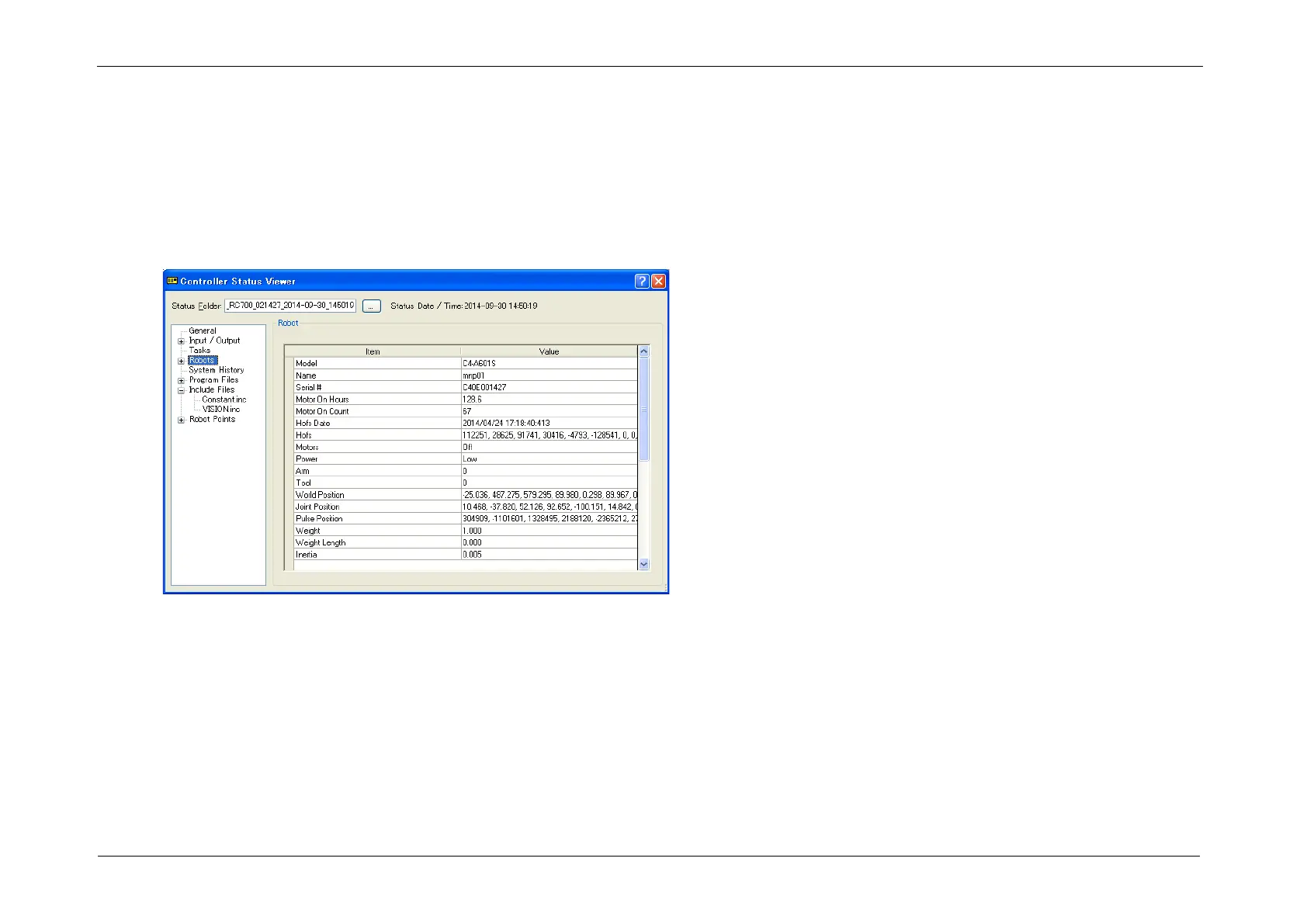

4. Click <OK> to view the [Controller Status Viewer] dialog.
5. Select [Robots] from the tree menu on the left side (Dialog image: EPSON RC+ 7.0)
To Next Page
