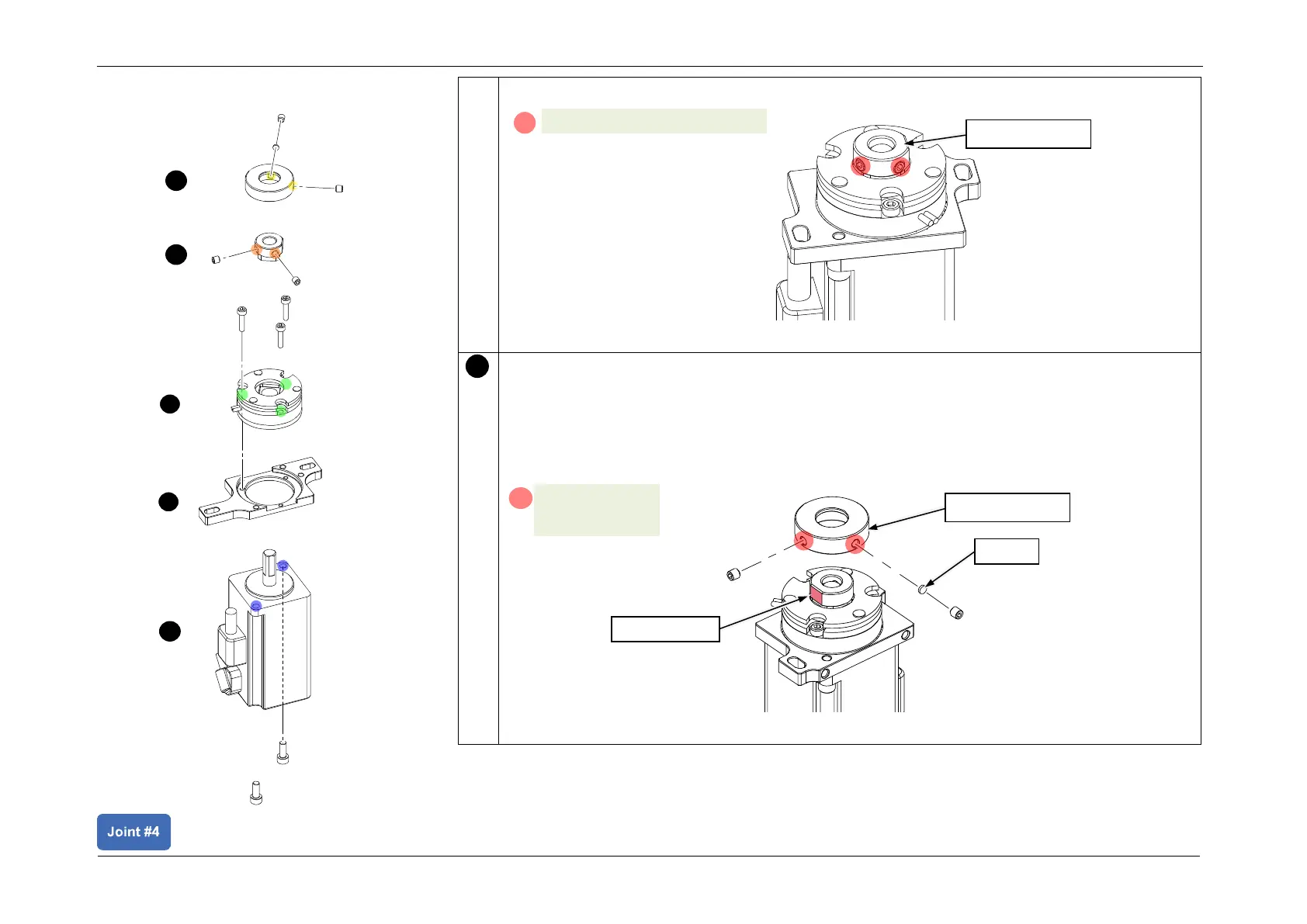

3. Secure the Brake Hub with set screws.
Install the Motor Pulley.
POINT
• Align the D-cut surfaces with the screw holes, and install the Motor Pulley.
• Install the bushing on the side without the D-cut.
• Tighten the screws while pressing the Motor Pulley against the Brake Hub.
A
Brake Hub
S05: 2-M4x4 (1.6 +/- 0.1 N⋅m)
4
S05: 2-M4x4
(1.6 +/- 0.1 N⋅m)
A
Motor Pulley
D-cut surface
Bushing
1
2
3
4
5
Motor Unit Assembly
