C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-203 Rev.1

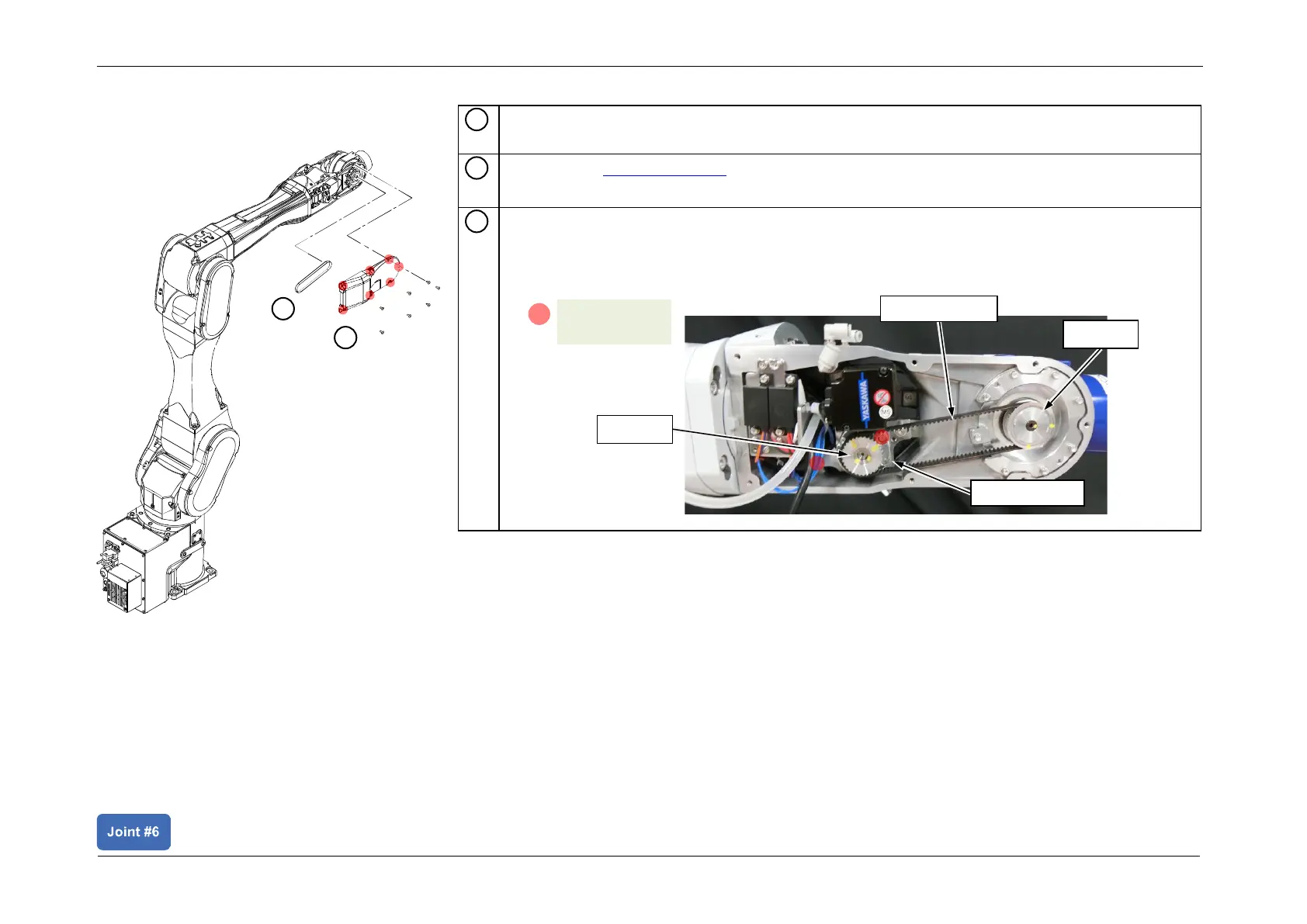

Removing the Timing Belt
Turn OFF the Controller.
Remove the Arm4 side cover (right).
Loosen the screws securing the J6 Motor unit, and remove the J6 Timing Belt.
POINT
First, remove the belt on pulley 1.
1
2
3
S01: 2-M4x15
and washer
A
J6 Motor unit
Pulley 1
Pulley 2
J6 Timing Belt
2
3
