C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-296 Rev.1

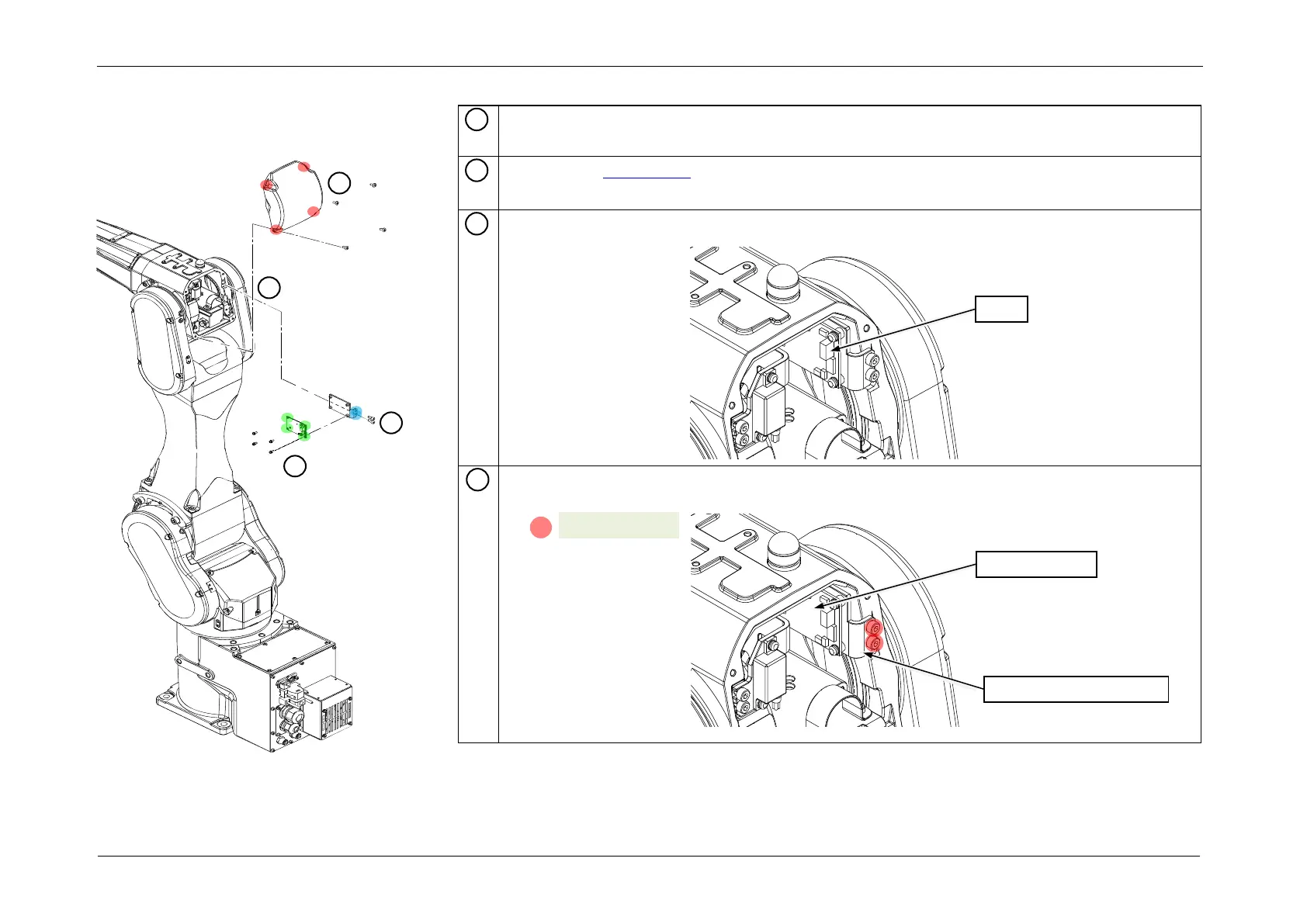

Removing Gyro Board 2
Turn OFF the Controller.
Remove the Arm3 cover.
Disconnect the connector (CN3).
Remove the screws fixing the plate, and pull out gyro board 2 and the plate from Arm3.
1
2
3
CN3
4
S01: 2-M4x10
A
Gyro board 2
Gyro board 2 fixing plate
金
4
3
2
5
