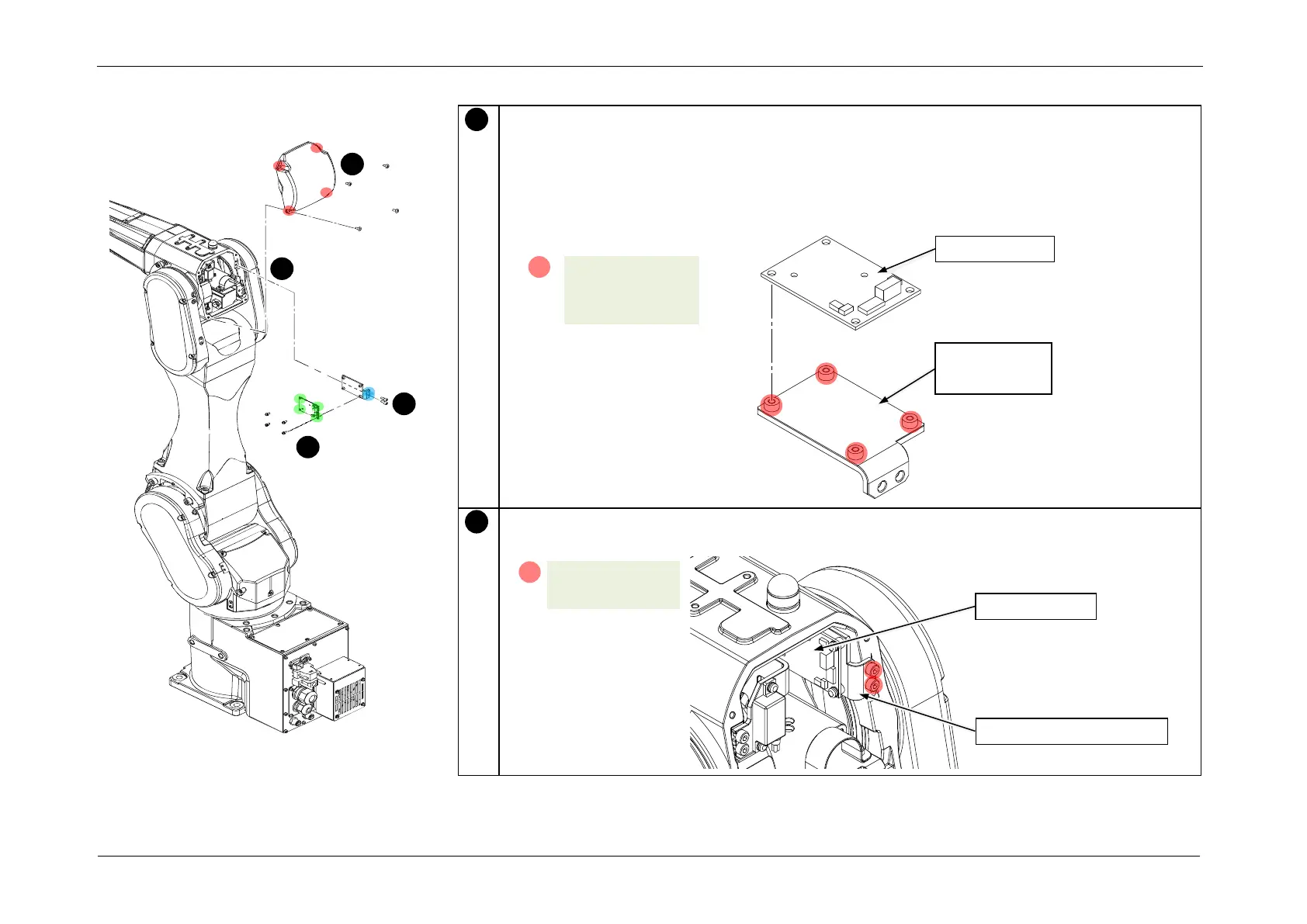

Installing Gyro Board 2
Install gyro board 2 on the plate.
CAUTION
Gyro board 2 installation has an assembly orientation.
Be careful with the installation position.
Install the plate with gyro board 2 installed on Arm3.
1
Gyro board 2
2
Gyro board 2
fixing plate
A
S03: 4-M3x8
with washer
(0.45 +/- 0.1 N·m)
2
Gyro board 2
Gyro board 2 fixing plate
