C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-301 Rev.1

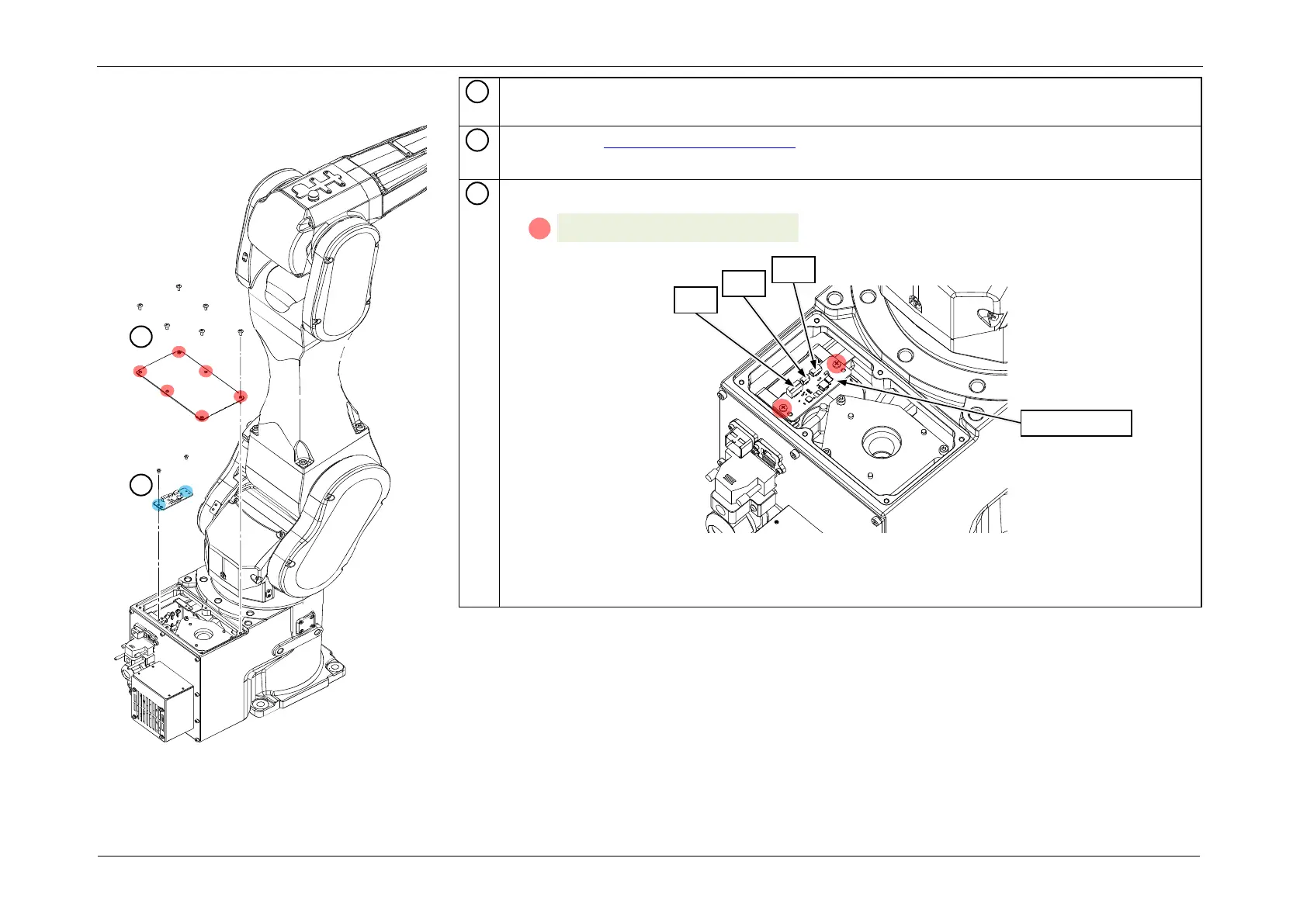

Turn OFF the Controller.
Remove the Base Maintenance Cover.
Disconnect the connectors (CN1, CN2, CN3), and remove the DC/DC Board.
CAUTION
When installing the DC/DC Board, align so that the side without connectors is toward the
Motor Unit.
1
2
3
S07: 2-M3x6（0.45 +/- 0.1 N·m）
A
DC/DC Board
CN1
CN2
CN3
3
2
Replacing the DC/DC Board
