C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-312 Rev.1

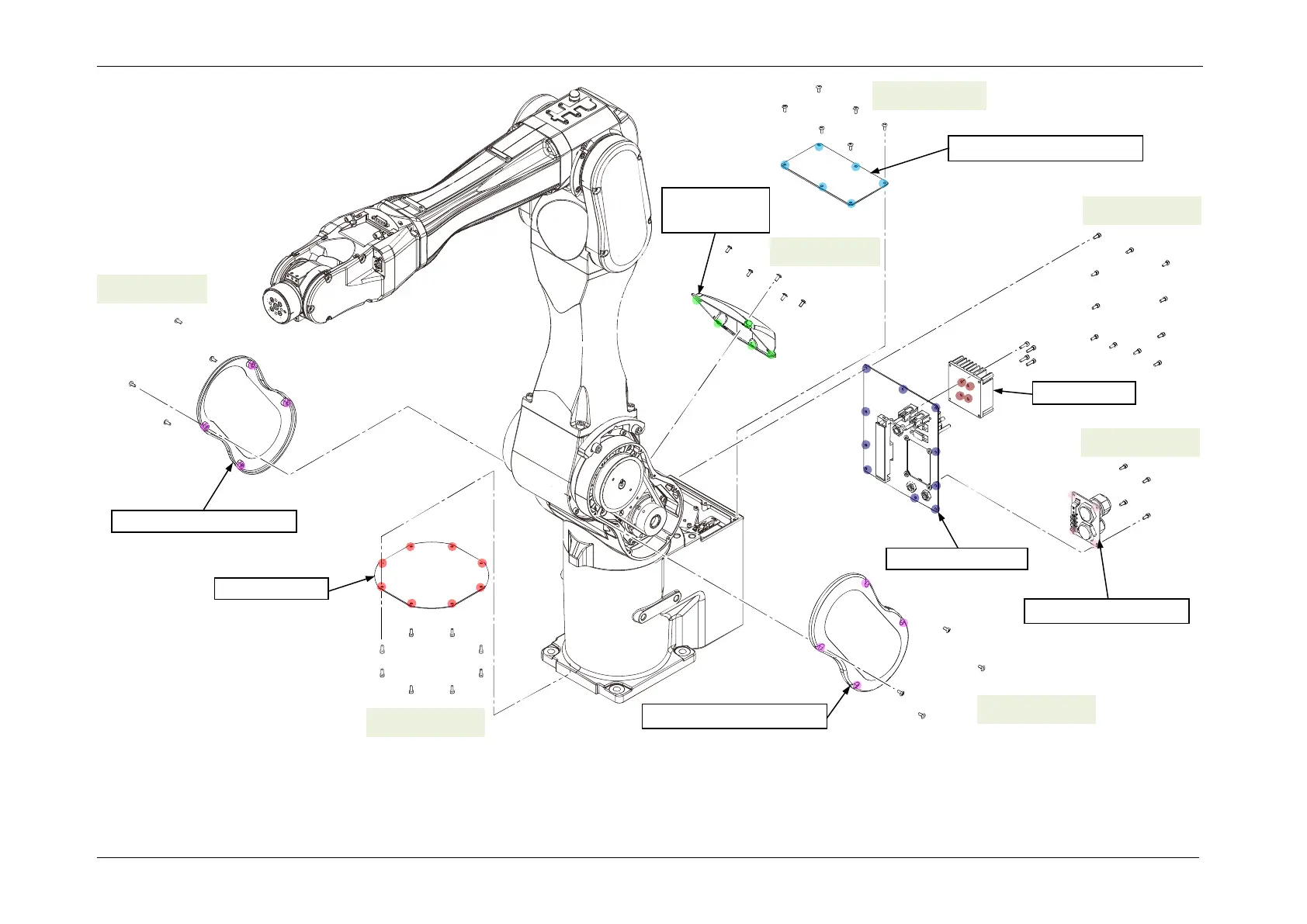

S01: 8-M4x10
Arm1 side cover
Arm1 side cover
S06: 4-M4x10
S01: 11-M4x10
Connector sub plate
S01: 4-M4x10
Heat sink
Arm1
center cover
S06: 6-M4x10
Base Maintenance Cover
Base cover
Connector Plate
S06: 5-M4x10
S06: 4-M4x10
