C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-323 Rev.1

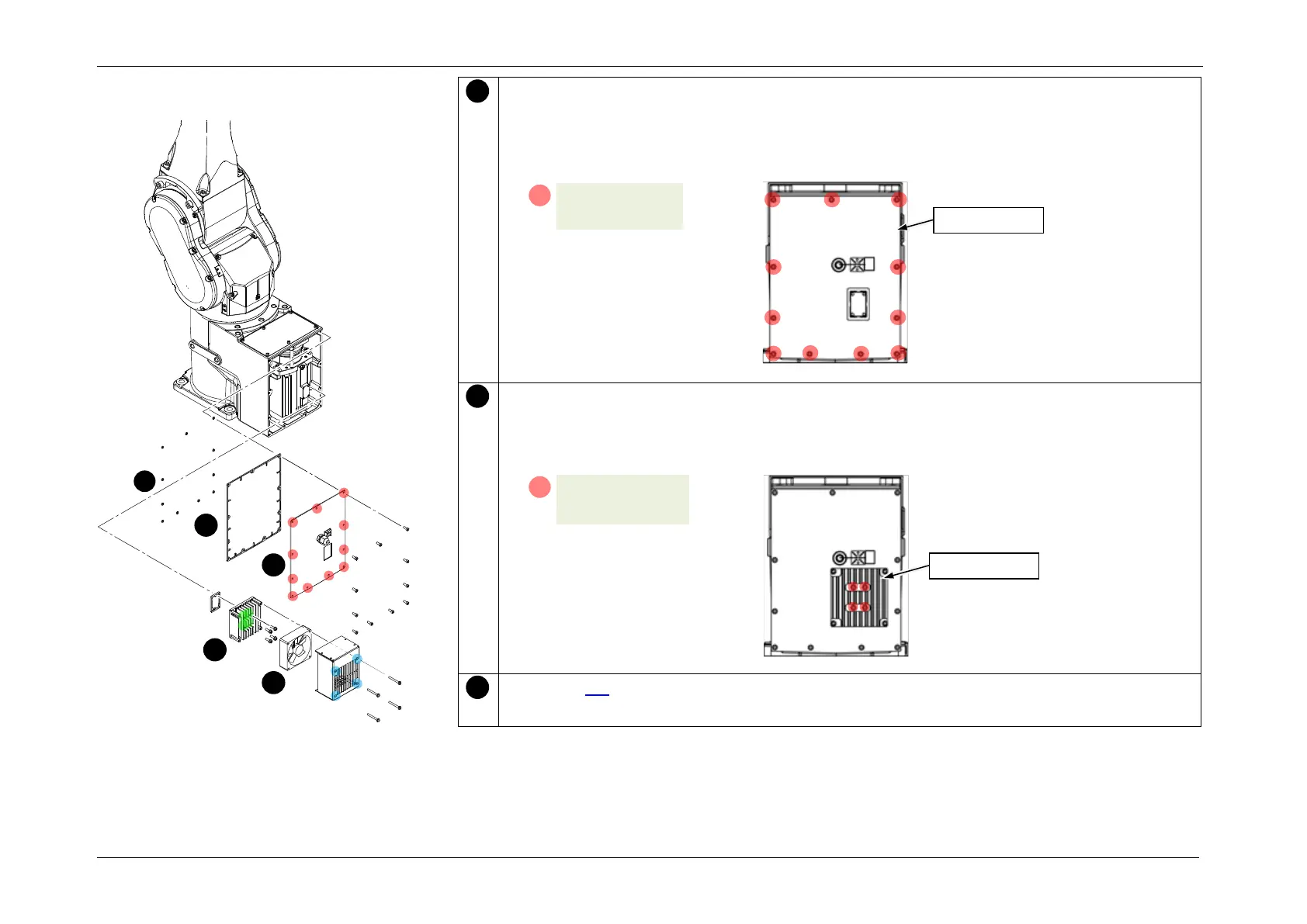

Install the base cover on the Manipulator.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
Install the heat sink.
POINT
Install a Rubber Gasket between the heat sink and the base cover.
Install the fan.
3
S01: 11-M4x10
(4.0 +/- 0.2 N⋅m)
A
Base cover
4
S01: 4-M4x15
(4.0 +/- 0.2 N⋅m)
A
Heat sink
5
5
3
2
1
4
Installation
