B. Installation

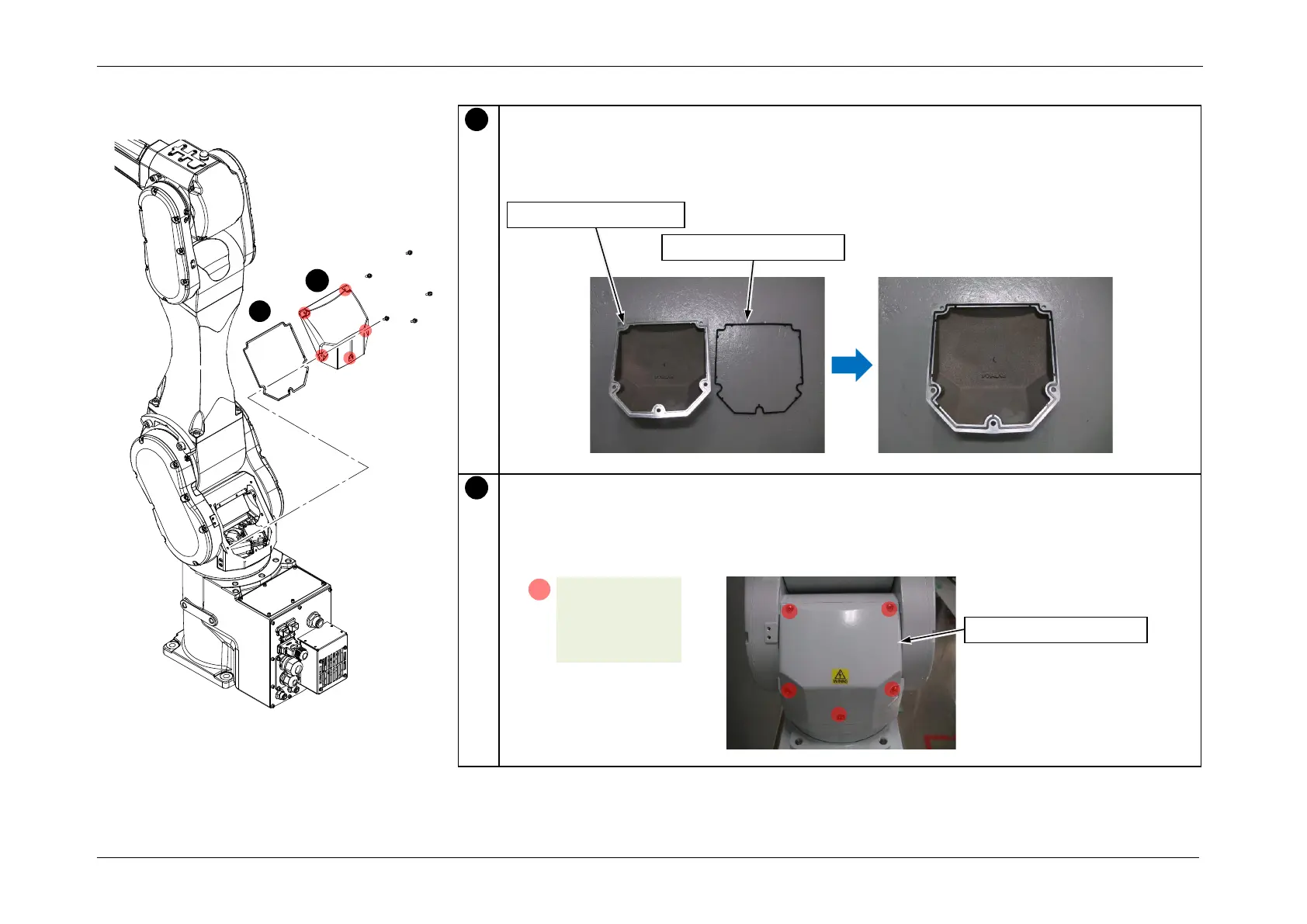

Install the Arm1 center gasket in the groove on the Arm1 center cover.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the Arm1 center cover.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
1
Arm1 center cover
Arm1 center gasket
2
S01: 5-M4x12
with washer
(4.0 +/- 0.2 N·m)
A
Arm1 center cover
2
1
