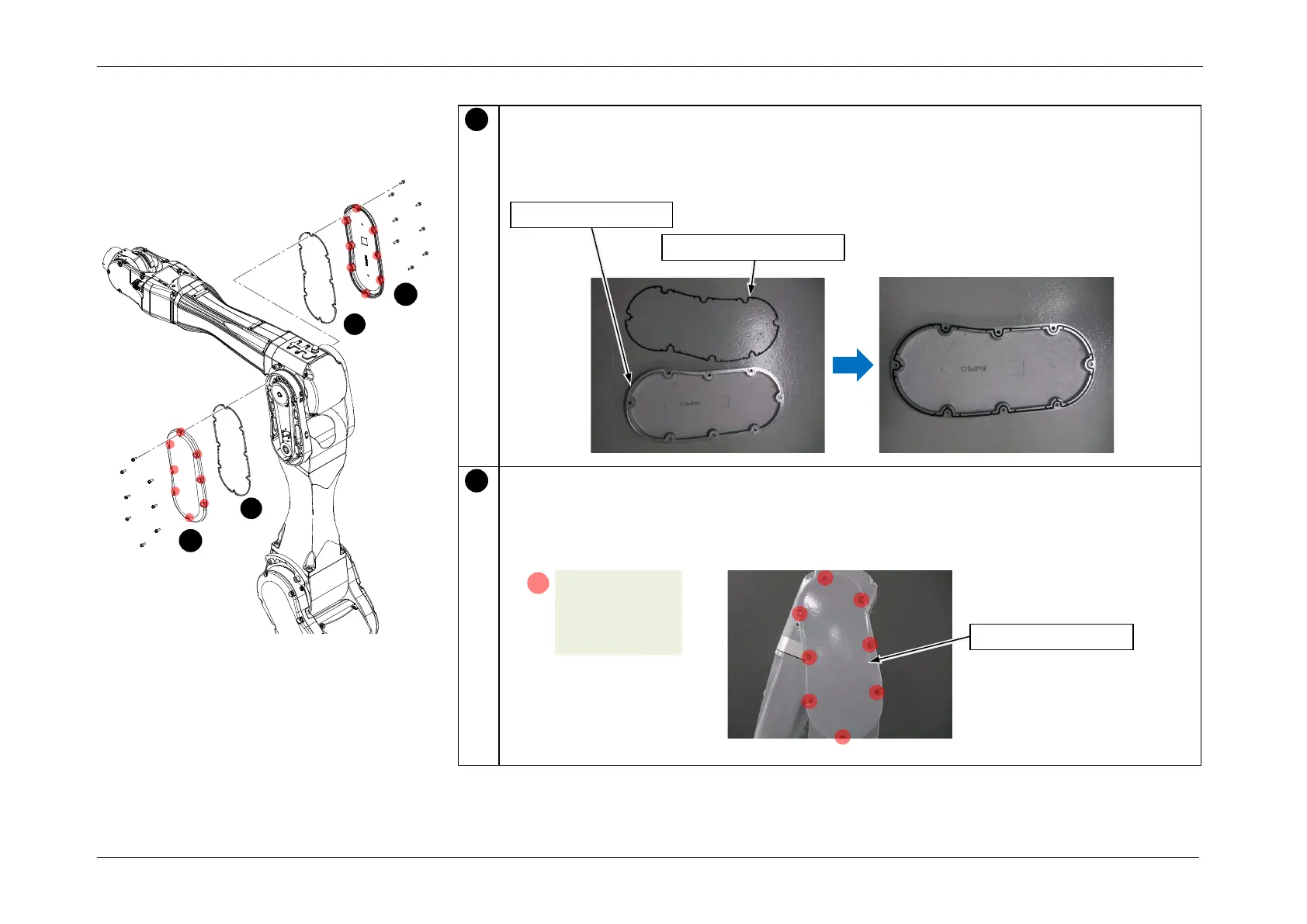

B. Installation
Install the Arm2 side gasket in the groove on the Arm2 side cover.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the Arm2 side cover on the Manipulator.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
1
Arm2 side cover
Arm2 side gasket
2
S01: 8-M4x12
with washer
(4.0 ± 0.2 N·m)
A
Arm2 side cover
2
1
2
1
