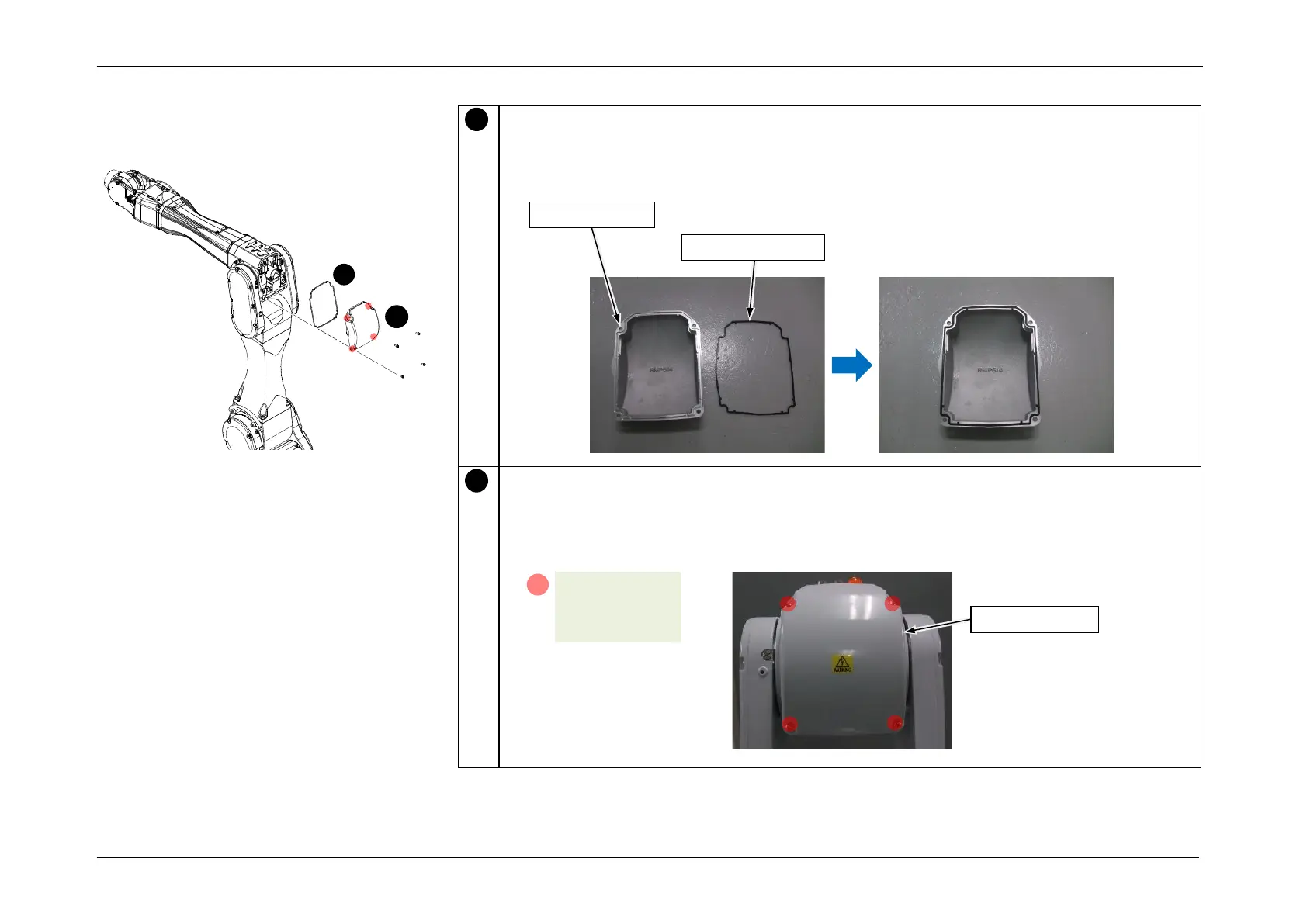

B. Installation
Install the Arm3 gasket in the groove on the Arm3 Cover.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the Arm3 Cover on the Manipulator.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
1
Arm3 cover
Arm3 gasket
2
S01: 4-M4x12
with washer
(4.0 ± 0.2 N·m)
A
Arm3 cover
2
1
