C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-354 Rev.1
Protection Model

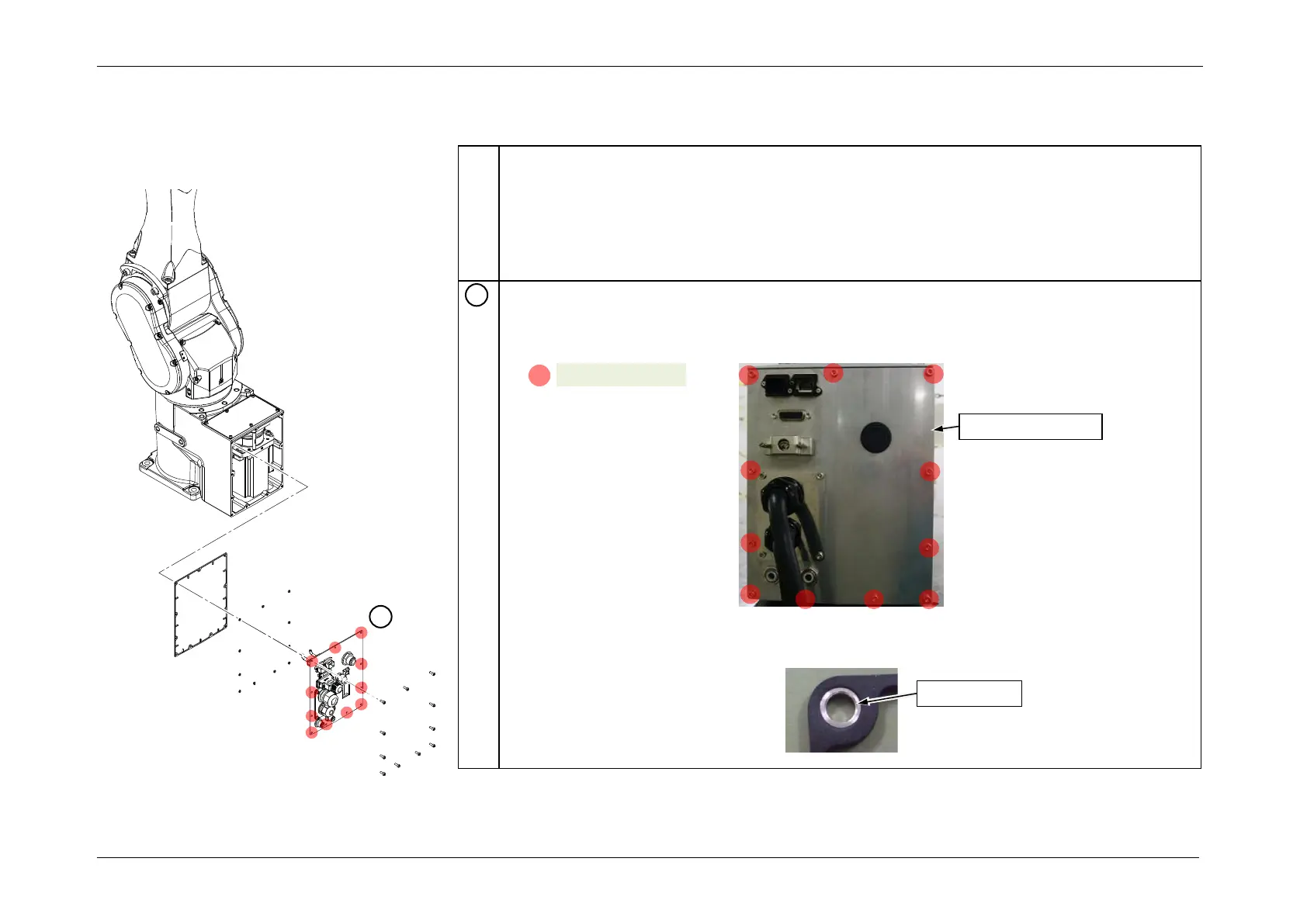

A. Removal
CAUTION
• Do not pull the Connector Plate with force. It may result in damage to the cables,
disconnection, and/or contact failure. These are extremely hazardous and may result
in electric shock and/or improper function of the robot system.
• At reassembly, check the cable arrangement when removing the Connector Plate in
order to return to a reasonable wiring arrangement.
Remove the Connector Plate.
POINT
When removing the Connector Plate, also remove the base rear gasket.
CAUTION
The Rubber Gasket has spacers. Be careful not to lose these spacers.
To Next Page
