C8-B/C12-B Service Manual Adjustment Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 3-6 Rev.1

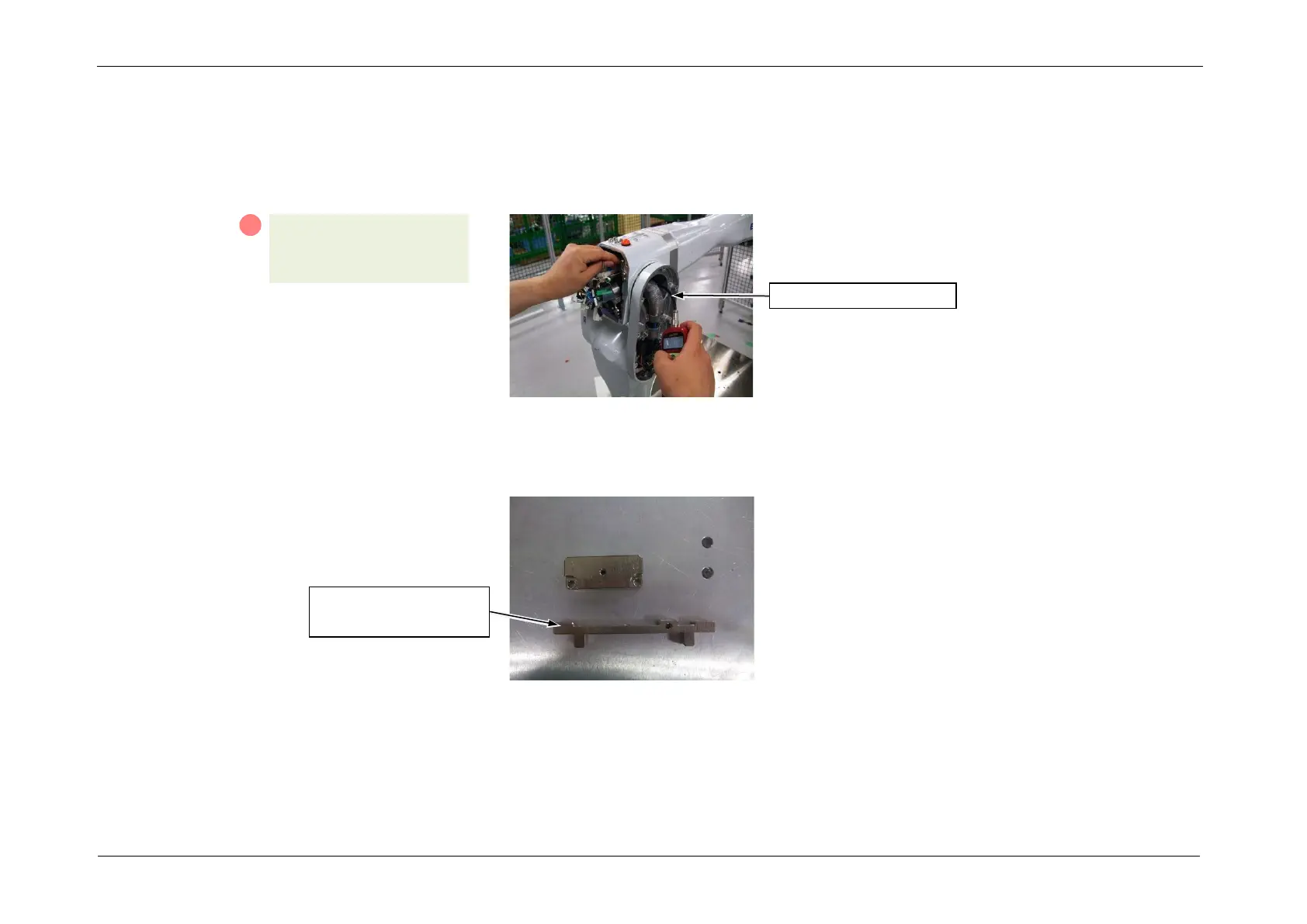

Joint #4 Timing Belt
1. Apply the proper tension to the Joint #4 timing belt and secure the Joint #4 motor unit.
Joint #4 timing belt tension: 15 to 30 N
Belt tension meter setting values
Weight: 2.5 g/mm width x m span, Width: 6 mm, Span: 61 mm
NOTE
When using the belt tensile jig (maintenance part):
Fix the belt tensile jig (for J4, J5, J6) to the Joint #4 motor plate.
A
S01: 2-M4x15
and washer
(4.0 +/- 0.2 N·m)
Joint #4 timing belt
Belt tensile jig
(for J4, J5, J6)
