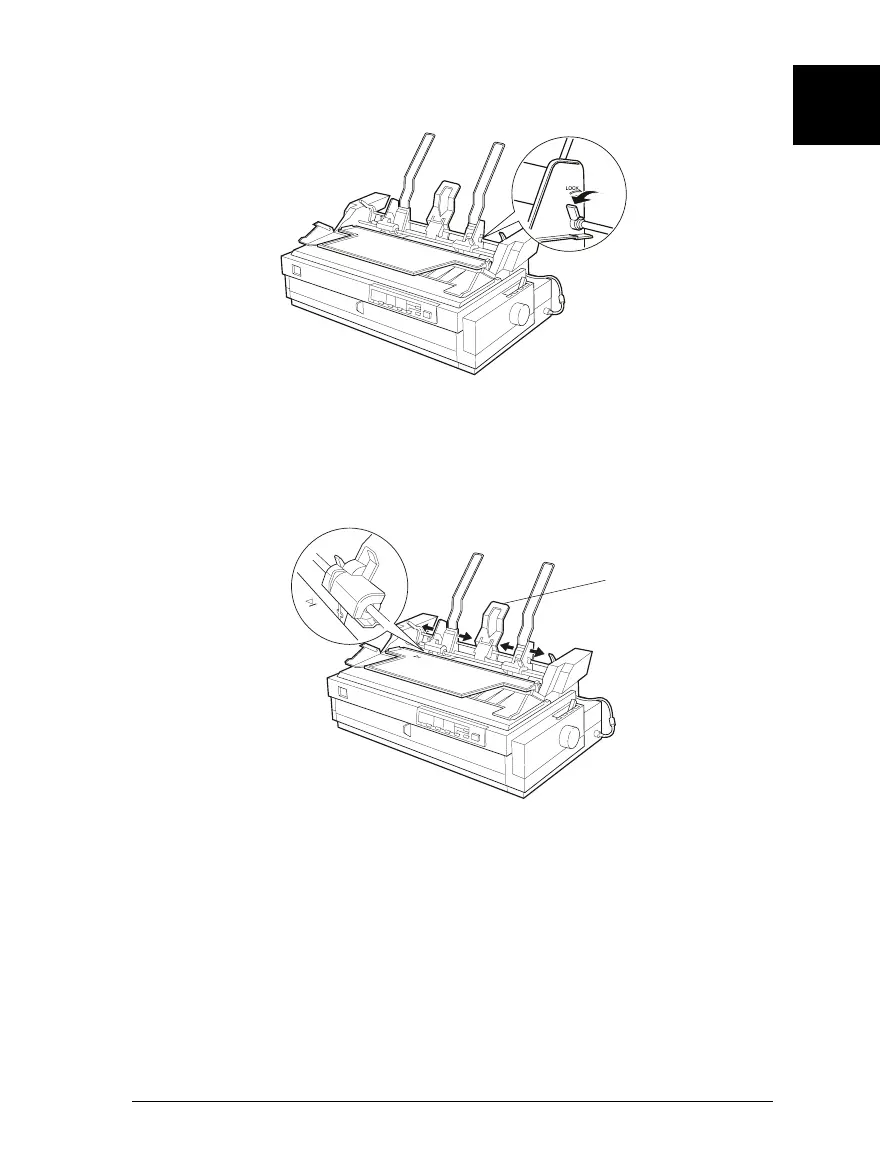

3. Release the left and right paper guides of the cut-sheet feeder by
pulling the lock levers forward.
4. Holding the lower portion of the left paper guide, slide it until it is
aligned with the arrow mark on the back of the center support. Then
push the left lock lever backward to lock it in place. Holding the
lower portion of the right paper guide, slide it to match the width of
your paper, but do not lock it.
5. Slide the paper stacker midway between the paper guides as shown
above.
4-2-2A
paper stacker
4-2-3
A
R
Sun-G+ Rev.C
A5 size Appendix A
97/11/14 pass 1
Enhancing Your Printer With Options A-7
