L1800 Revision A
Adjustment Adjustment without Using Adjustment Program 125
Confidential
3. Load Adapter of all colors into the Carriage Unit.
4. Loosen the screw that secures the Parallelism Adjust Bushing.
5. Turn the Parallelism Adjust Bushing upward to align the frame edge and the
bottom of the Parallelism Adjust Bushing gear.

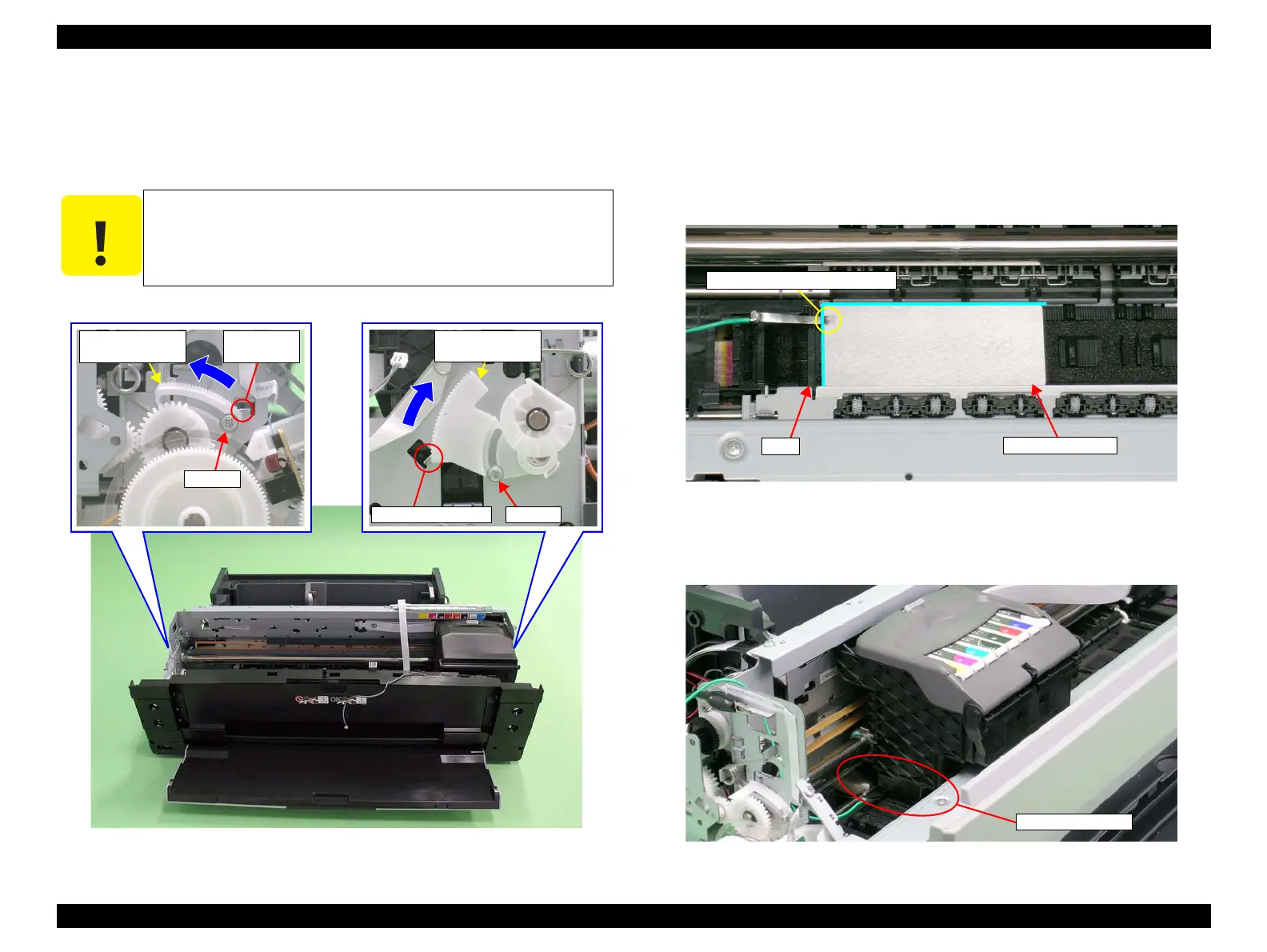

Figure 4-12. Setting the Parallelism Adjust Bushing
6. With its conductor connection portion up, set the Adjustment Gauge in the
specified position (on the left side of the Front Paper Guide).
Setting Position
Rear direction: Align the rear end of the Gauge with the Driven Roller Shaft
of the Upper Paper Guide.
Left direction: Release the left end of the Gauge from the Tab on the Front
Paper Guide in Figure 4-13.
Figure 4-13. Setting the Adjustment Gauge
7. Move the Carriage Unit onto the Adjustment Gauge.
Moving position
Align the left end of the Gauge with the left end of the Carriage Unit.
Figure 4-14. Moving the Carriage Unit
C A U T I O N
When the Parallelism Adjust Bushing is turned upwards, the frame
rises up and PG narrows. Make sure that the frame does not come
into contact with the Print Head when performing the following
procedure.
Parallelism Adjust
Bushing
Positioning Point
Screw
Positioning
Point
Screw
Parallelism Adjust
Bushing
Setting Position
Conductor Connection Point
Tab
Setting Position
