L1800 Revision A
Maintenance Overview 138
Confidential

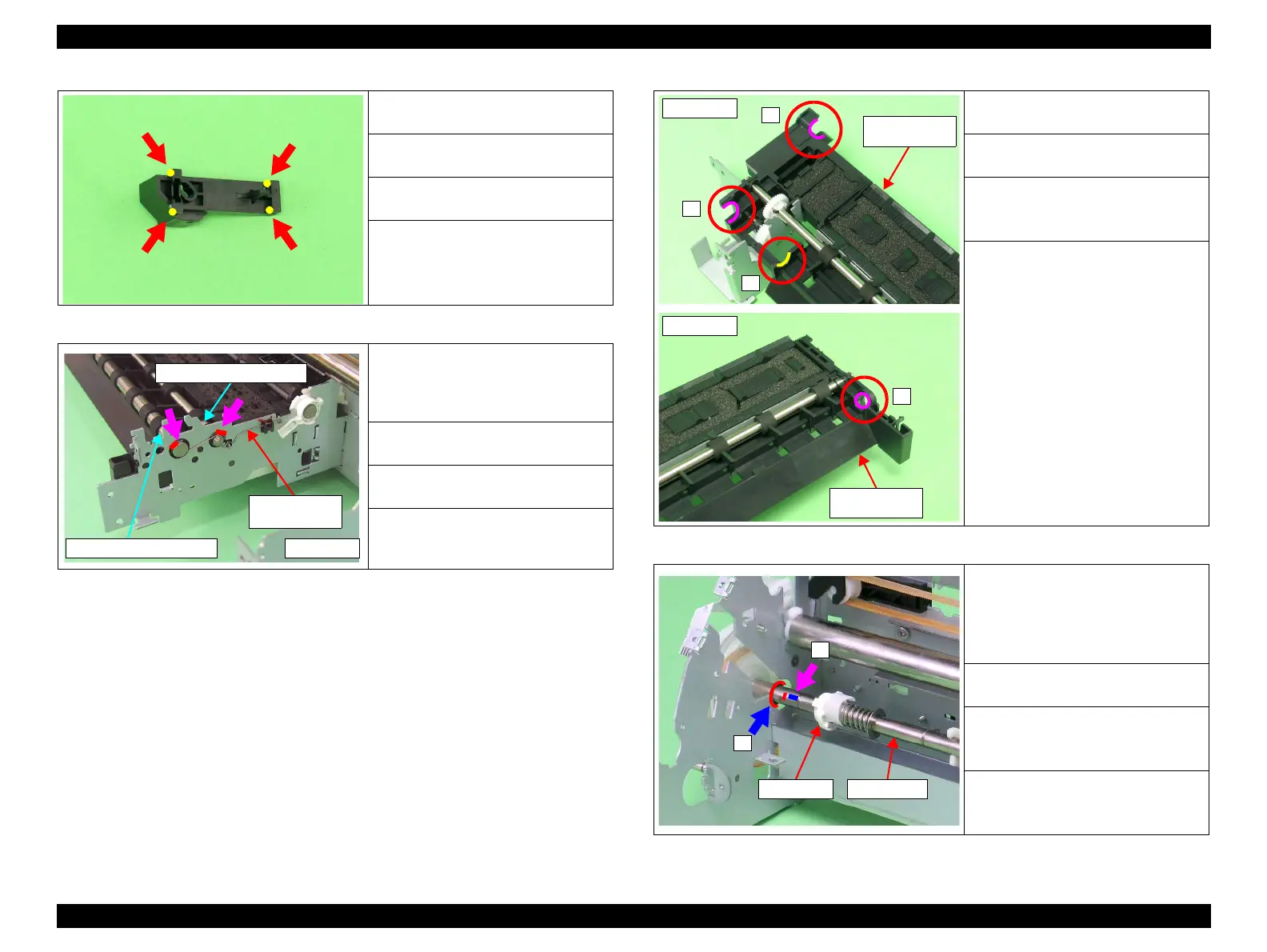

Figure 5-7. Lubrication (7)
Figure 5-8. Lubrication (8)
Figure 5-9. Lubrication (9)
Figure 5-10. Lubrication (10)
<Lubrication Point>
The Driven Pulley Holder
<Lubrication Type>
G-26
<Lubrication Amount>
1mm x 2mm x 4 points
<Remarks>
Apply with a syringe.
(Pin Head: 1mm)
<Lubrication Point>
Contact point of the EJ Grounding
Spring and Front and Rear Paper EJ
Rollers
<Lubrication Type>
G-45
<Lubrication Amount>
1mm x 2mm x 2 points
<Remarks>
Apply with a syringe.
(Pin Head: 1mm)
Rear Paper EJ Roller
EJ Grounding
Spring
Front Paper EJ Roller
Right Side
<Lubrication Point>
The bushing of the Front Paper Guide
<Lubrication Type>
G-45
<Lubrication Amount>
1. Apply evenly.
2.
1mm x 2mm
<Remarks>
Apply with a brush.
<Lubrication Point>
1. Left side of the PF Roller Shaft
(Left of the E-Ring)
2. Mounting location of the Bushing
8
<Lubrication Type>
G-45
<Lubrication Amount>
1. Approx.
1mm x 5mm
2. All around the Shaft
<Remarks>
1. Apply with a syringe.
2. Apply with a brush.
1
1
2
Front Paper
Guide
Right Side
1
Front Paper
Guide
Left Side
To Next Page
