L1800 Revision A
Maintenance Overview 139
Confidential

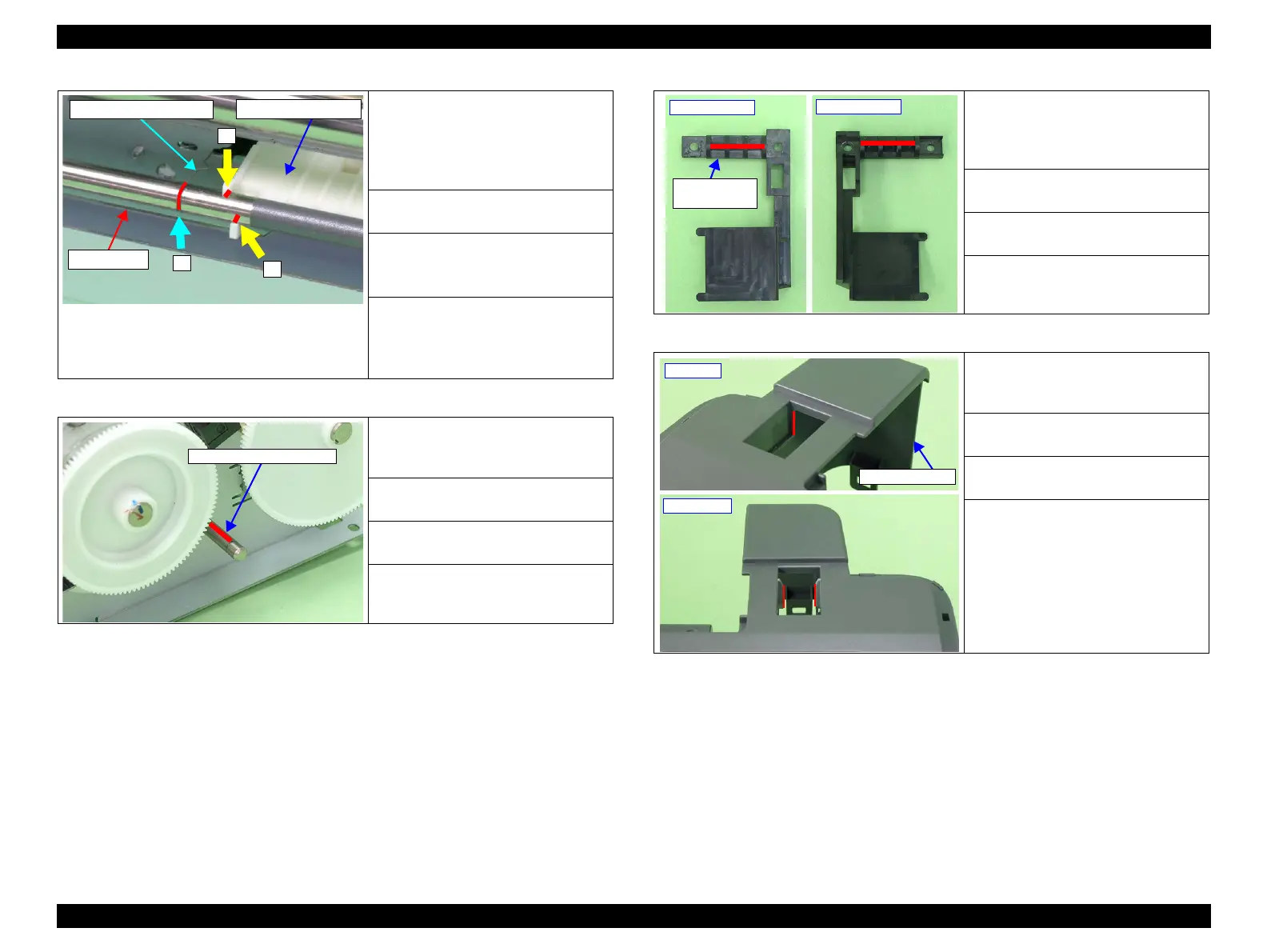

Figure 5-11. Lubrication (11)
Figure 5-12. Lubrication (12)
Figure 5-13. Lubrication (13)
Figure 5-14. Lubrication (14)
<Lubrication Point>
1. Contact point of the Rear Paper
Guide and the PF Roller
2. Contact point of the PF Grounding
Spring and the PF Roller
<Lubrication Type>
G-45
<Lubrication Amount>
1. Apply evenly.
2.
1mm x 2mm
<Remarks>
1. Apply with a brush.
2. Apply with a syringe.
(Pin Head:
1mm)
<Lubrication Point>
Contact point of the Shaft of the Main
Frame and Spur Gear 31.5
<Lubrication Type>
G-45
<Lubrication Amount>
1mm x 2mm
<Remarks>
Apply with a syringe.
1
1
2
Rear Paper GuidePF Grounding Spring
PF Roller
Shaft of the Main Frame
<Lubrication Point>
Contact point of the Printer Cover
Holder (Left/Right) and the Printer
Cover
<Lubrication Type>
G-26
<Lubrication Amount>
20mm x 2mm x 2 points
<Remarks>
Apply with a brush.
<Lubrication Point>
Contact point of the Housing Upper
and the Printer Cover
<Lubrication Type>
G-74
<Lubrication Amount>
Apply evenly.
<Remarks>
Apply with a brush.
Upper surface
Printer Cover
Holder Right
Lower surface
Housing Upper
Left Side
Right Side
