Epson L1800 - Page 145

L1800 Revision A
Maintenance Overview 140
Confidential

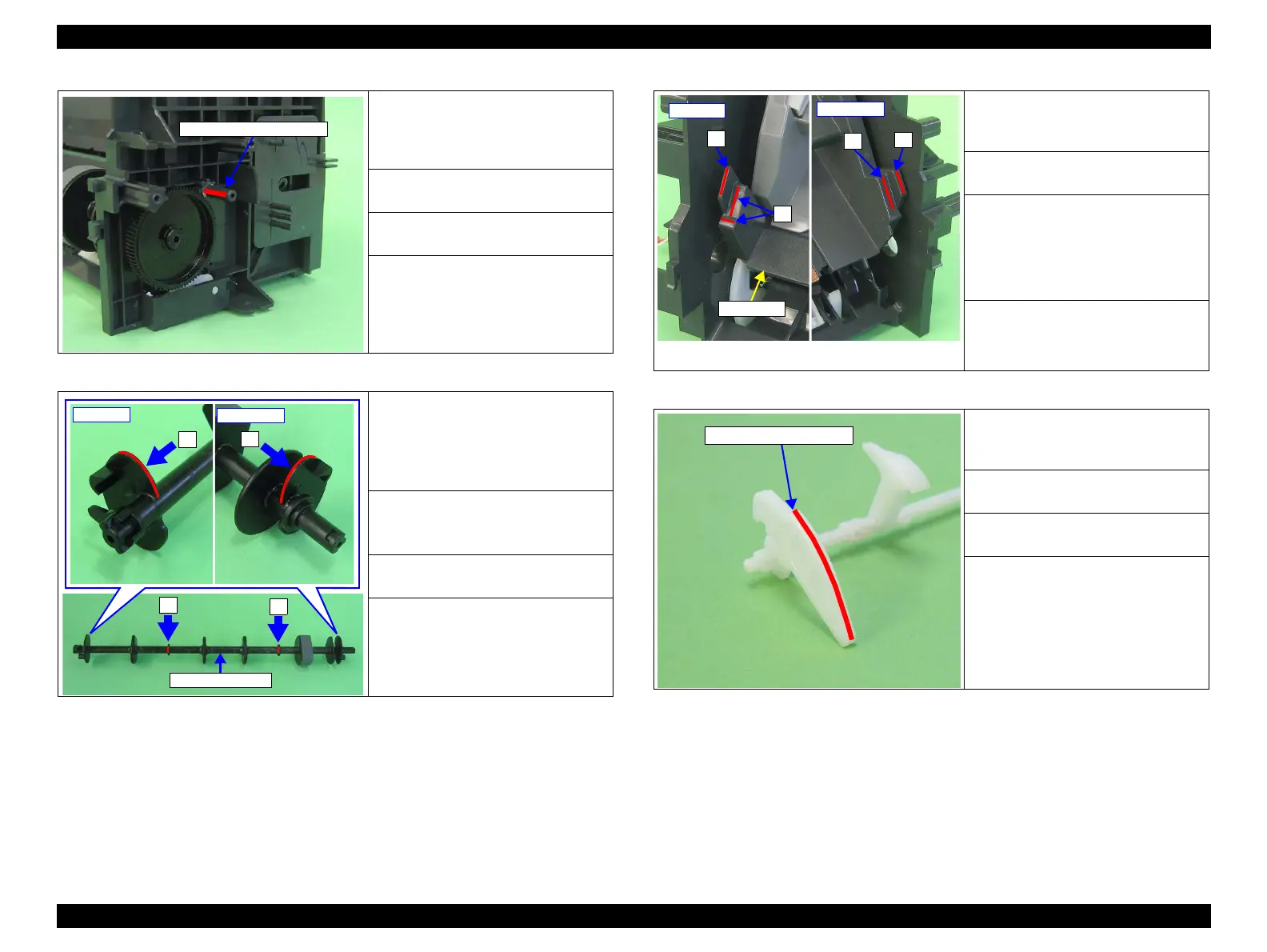

Figure 5-15. Lubrication (15)
Figure 5-16. Lubrication (16)
Figure 5-17. Lubrication (17)
Figure 5-18. Lubrication (18)
<Lubrication Point>
Contact point of the Shaft of the ASF
Frame and the Combination Gear
29.11
<Lubrication Type>
G-26
<Lubrication Amount>
Apply evenly.
<Remarks>
Apply with a brush.
<Lubrication Point>
1. Contact point of the LD Roller
Shaft and the Hopper
2. Contact point of the LD Roller
Shaft and the Guide Roller LD
<Lubrication Type>
1. G-26
2. G-75
<Lubrication Amount>
Apply evenly.
<Remarks>
Apply with a brush.
Shaft of the ASF Frame
LD Roller Shaft
2
2
Right Side
1
Left Side
1
<Lubrication Point>
Contact point of the Housing Upper
and the Printer Cover
<Lubrication Type>
G-26
<Lubrication Amount>
1.
1mm x 10mm
2.
1mm x 15mm
3.
1mm x 10mm
4. Apply evenly.
<Remarks>
1. 2. 3. Apply with a syringe.
4. Apply with a brush.
<Lubrication Point>
Contact point of the Paper Back Lever
Right and the LD Roller Shaft
<Lubrication Type>
G-26
<Lubrication Amount>
2mm x 15mm
<Remarks>
Apply with a syringe.
Right Side
22
1
Left Side
Hopper
4
3
Paper Back Lever Right
