Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 70
Confidential

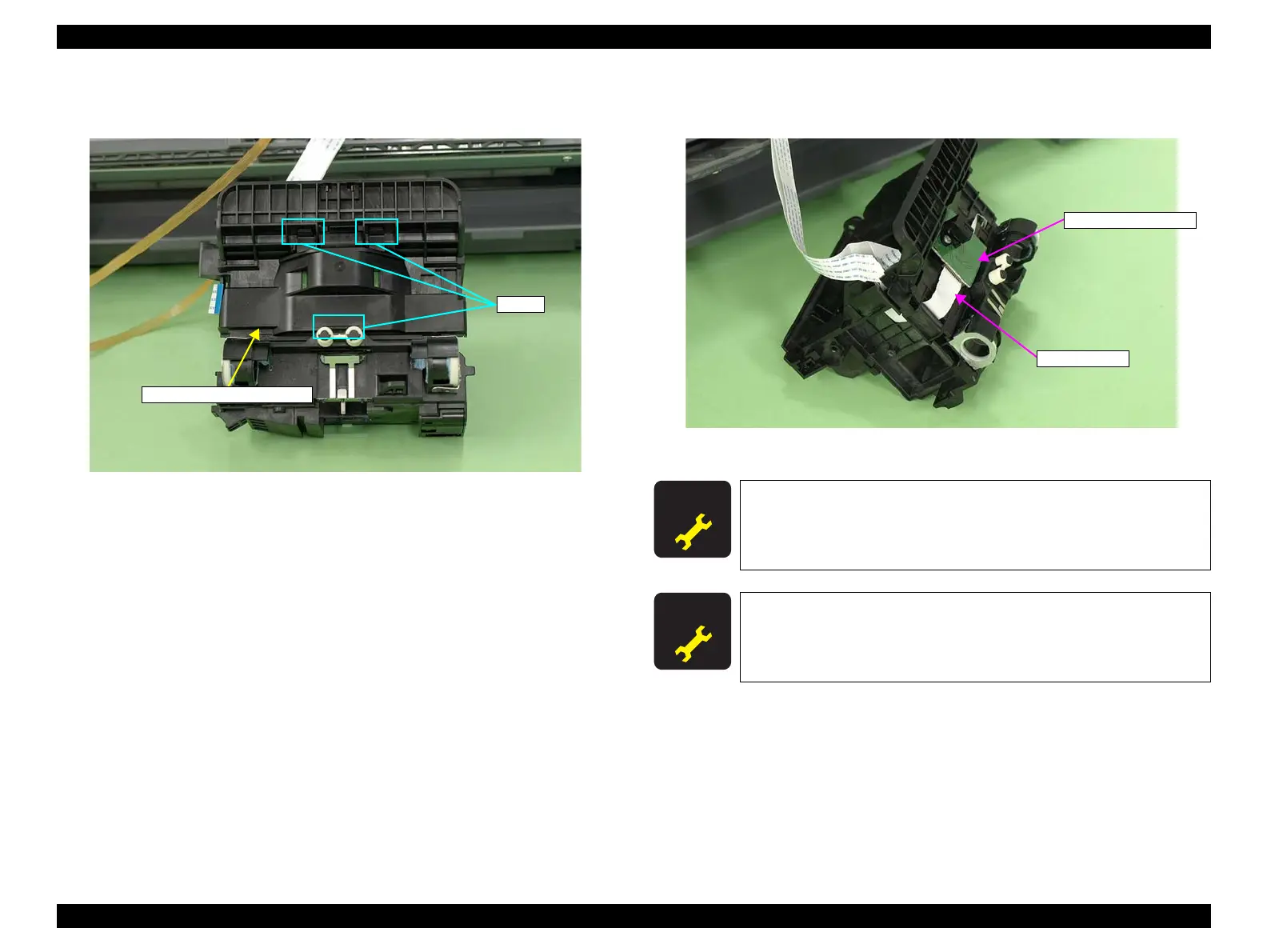

24. Release the CR Encoder Board Holder from the three Tabs to remove it from the
Carriage Unit.
Figure 3-80. Removing the Belt Holder
25. Disconnect the Sensor FFC from the connector on the CR Encoder Board, pull out
the Sensor FFC from the Carriage Unit, and remove the Carriage Unit.
Figure 3-81. Removing the Carriage Unit
Tabs
CR Encoder Board Holder
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Carriage Shaft and Carriage Unit,
always make the required adjustments referring to the following.
 “Chapter 4 Adjustment (p.109)”
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Carriage Shaft and Carriage Unit,
be sure to perform the required lubrication referring to below.
 “Chapter 5 Maintenance (p.133)”
CR Encoder Board
Sensor FFC
