L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 84
Confidential
11. Remove the Ink System Unit downwards from the Main Frame.

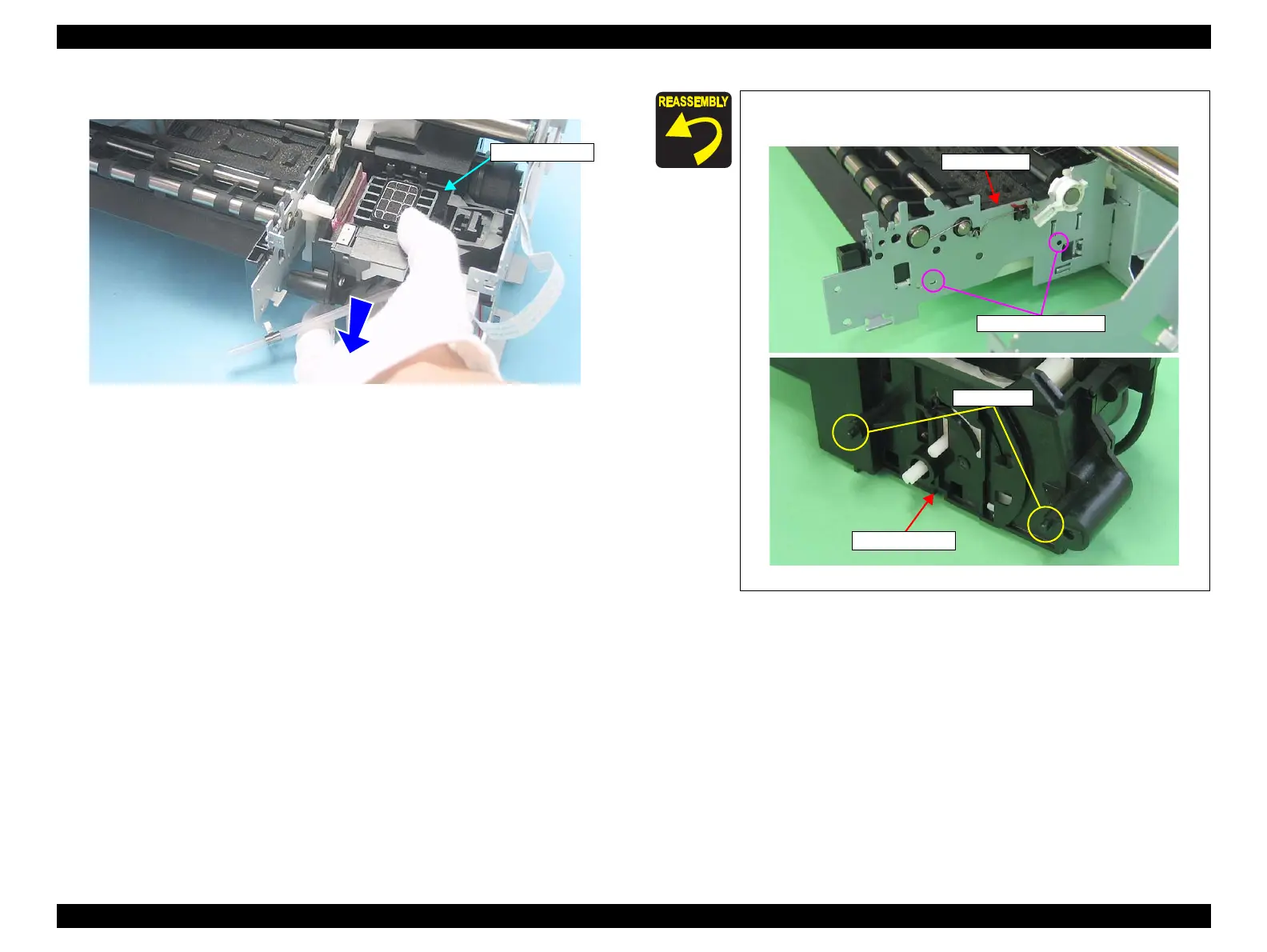

Figure 3-115. Removing the Ink System Unit
Ink System Unit
Align the positioning two holes on the Main Frame with the two
guide pins on the Ink System Unit.
Figure 3-116. Reinstalling the Ink System Unit
Positioning holes
Main Frame
Guide pins
Ink System Unit
