Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Removing the Motors 94
Confidential

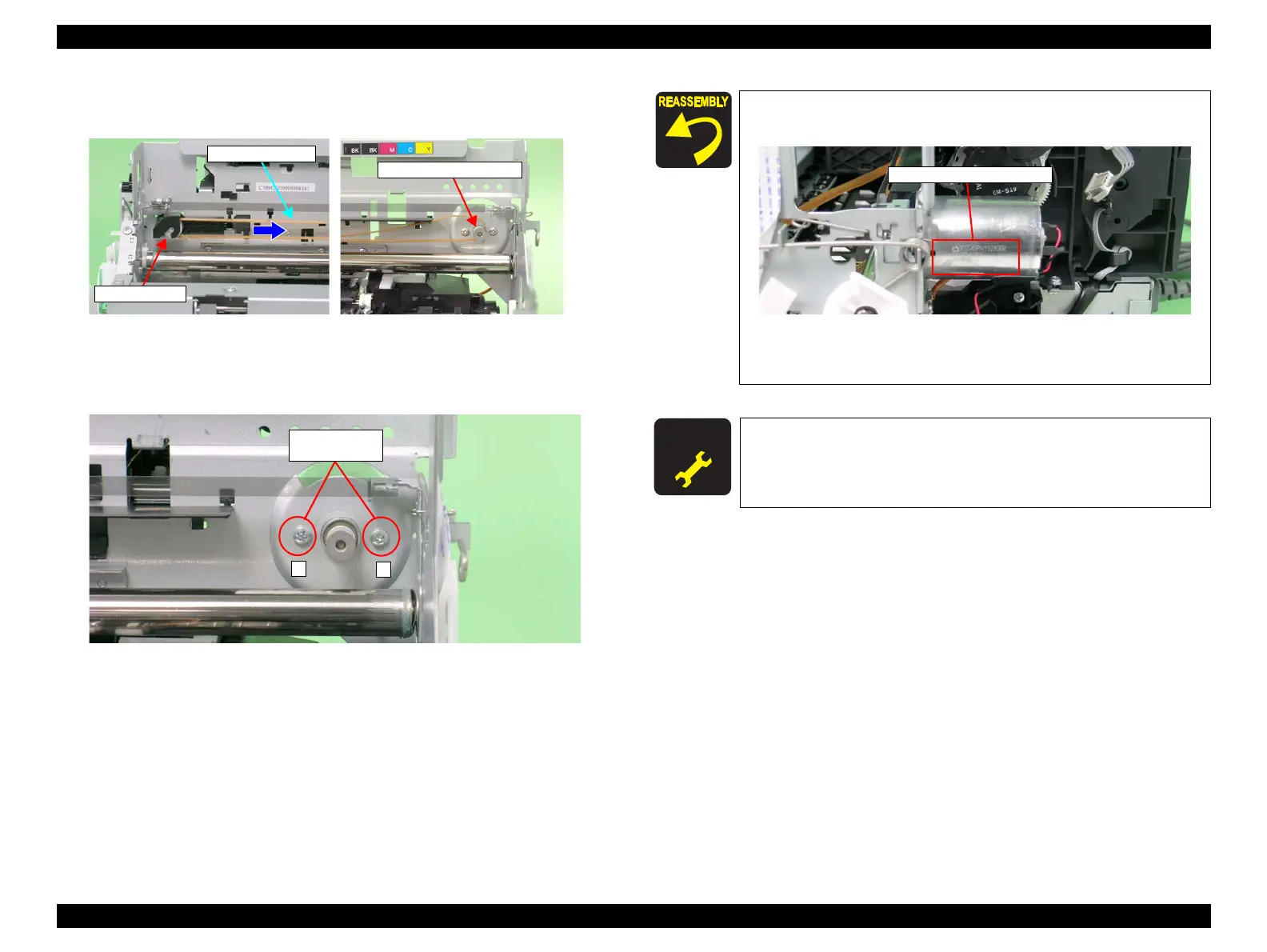

6. .Press the Driven Pulley toward the center to loosen the CR Drive Belt, and
remove the CR Drive Belt from the CR Motor Pinion Gear.
Figure 3-142. Removing the CR Motor
7. Remove the two C.B. M3 x 4 screws that secure the CR Motor, and remove the CR
Motor from the Main Frame.
Figure 3-143. Removing the CR Motor
CR Drive Belt
Driven Pulley
CR Motor Pinion Gear
2
1
19) C.B. M3x4
(4±0.5 kgf.cm)
 Make the Lot No. printed surface on the CR Motor face the
direction shown in the figure below.
Figure 3-144. Reinstalling the CR Motor
 Tighten the screws in the order shown in Figure 3-143
A D J U S T M E N T
R E Q U I R E D
After replacing the CR Motor, always make the required adjustments
referring to the following.
 “Chapter 4 Adjustment (p.109)”
Lot No. Printed Surface
