3.2.10.13 Rear Paper Guide Removal
1. Remove the printer mechanism unit. (Refer to Section 3.2.6.)
2. Remove the paper eject frame. (Refer to Section 3.2.10.7.)
3. Remove the CR unit. (Refer to Section 3.2.10.9.)
4. Remove the base frame assembly. (Refer to Section 3.2.10.10.)
5. Remove the PF roller. (Refer to Section 3.2.10.12.)
6. Remove the edge guide. (Refer to Section 3.2.10.6.)
7. Remove 2 screws (CBS, 3X6) securing the paper load guide frame to the left and middle frame
assemblies.
8. Release the hook fixing the rear paper guide at the right side of the main bottom frame assembly.
Then slide the rear paper guide left slightly and remove it.
Paper Load Guide Frame
Rear Paper Guide
Hook
Screw (CBS 3x6)
Middle Frame Assembly
Main Bottom Frame Assembly
Left Frame Assembly
Screw (CBS 3x6)

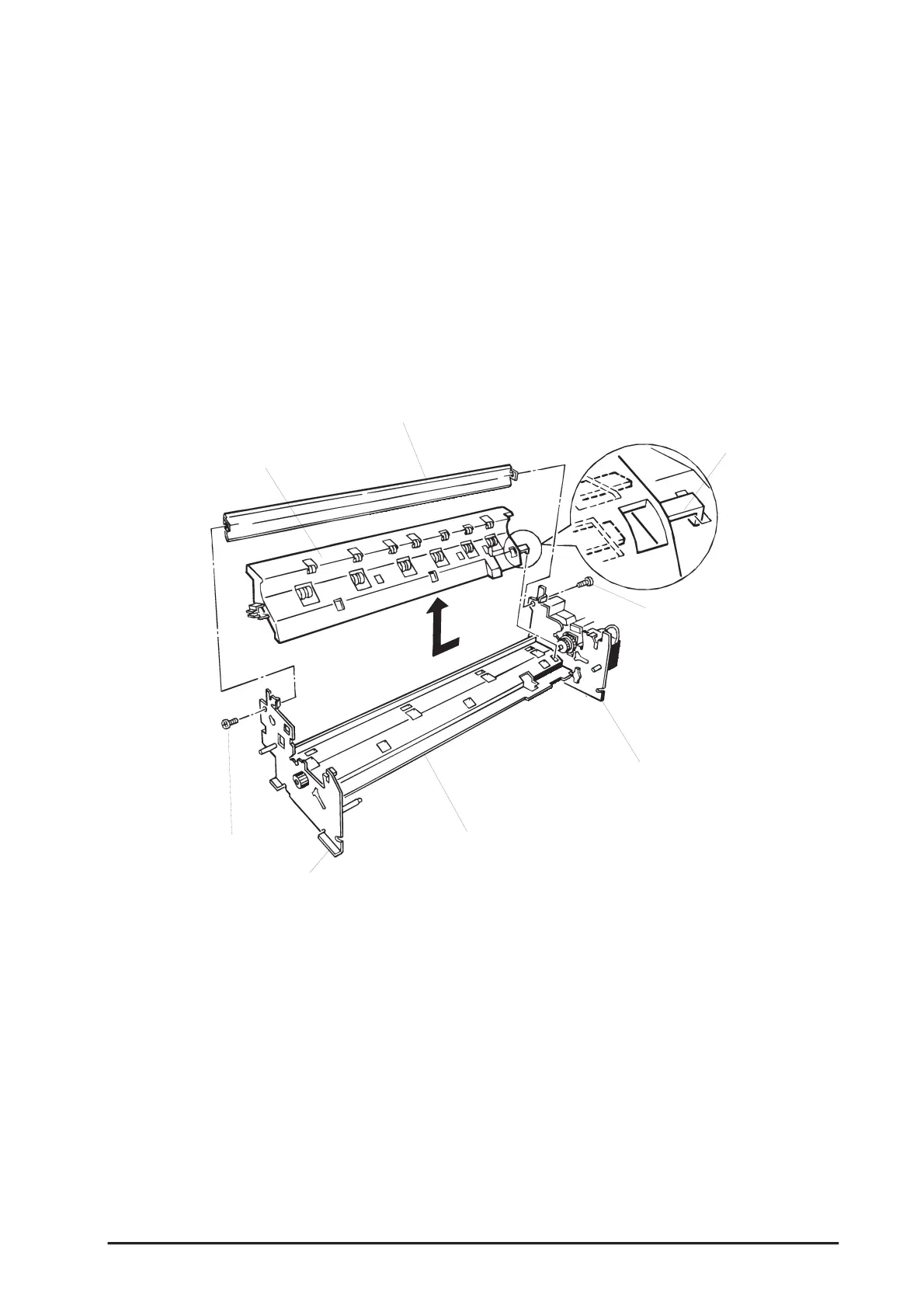

Figure 3-29. Rear Paper Guide Removal
