Epson Stylus Color 1520 Service Manual

Disassembly and Assembly
Rev. A
3-
9
3.2.4 Home Position (HP) Sensor Removal
1. Remove the upper housing. (Refer to Section 3.2.1.)
2. Disconnect the connector cable from the HP sensor connector.
3. Release the hooks fixing the HP sensor to the paper eject frame using the tweezers, then remove
the HP sensor.

After reassembling the HP sensor to the paper eject frame, be sure to fix the hooks to the frame
using the specified adhesive. (Refer to Chapter 6.)
WORK POINT
HP Sensor
Paper Eject Frame
Tweezers
Connector Cable for the
HP Sensor

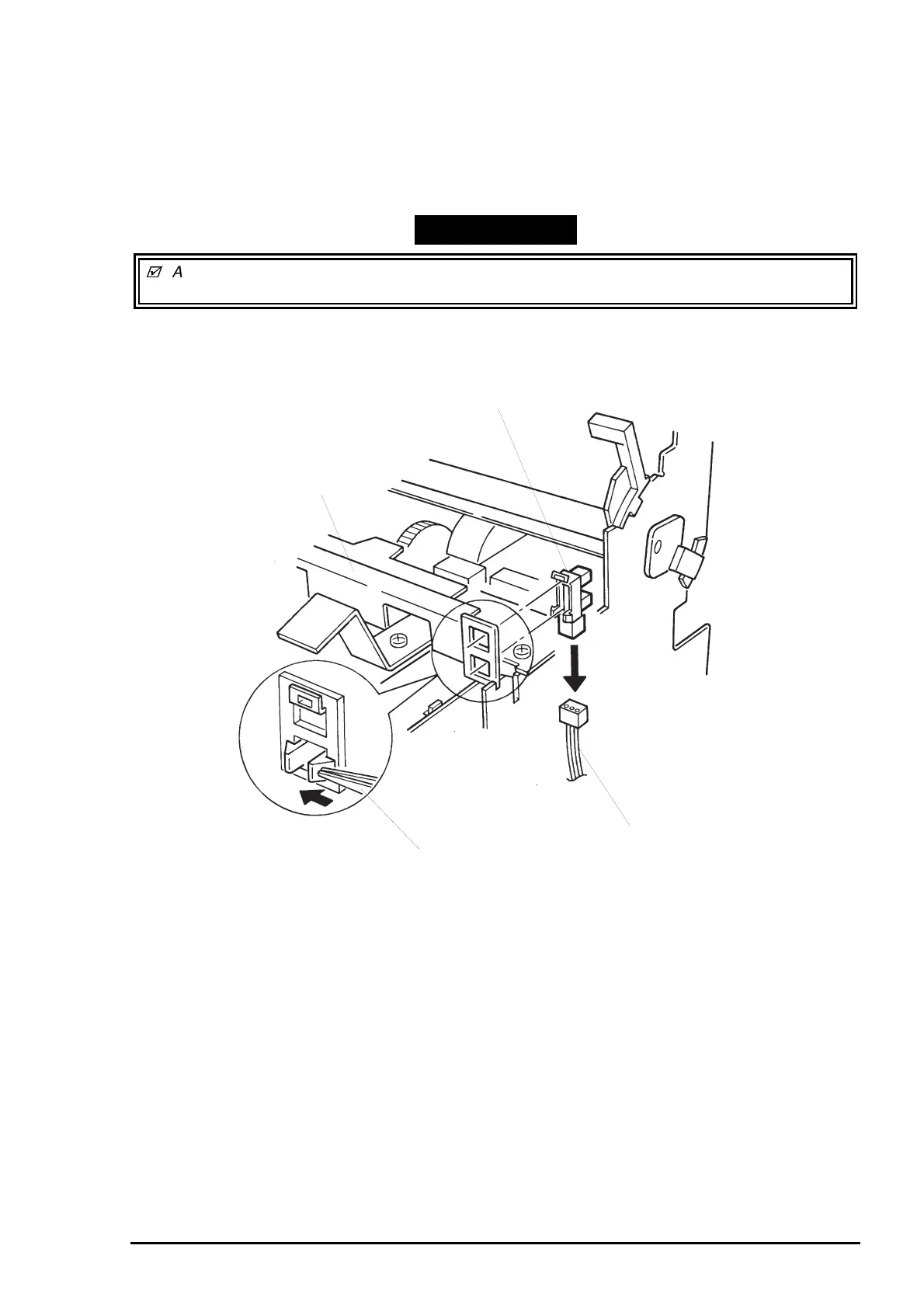

Figure 3-6. HP Sensor Removal
