Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
3-2
8
3.2.10.11 Paper Load Roller Unit Removal
1. Remove the printer mechanism unit. (Refer to Section 3.2.6.)
2. Remove the paper eject frame. (Refer to Section 3.2.10.7.)
3. Remove the CR unit. (Refer to Section 3.2.10.9.)
4. Remove the base frame assembly. (Refer to Section 3.2.10.10.)
5. Attach the knob to the PF roller shaft, and press the trigger lever down. Then rotate the paper load
roller unit by turning the knob clock wise to hold the edge guide unit down.
6. Remove 1 screw (CBP, 3X8) securing the paper eject drive unit to the left frame assembly, and
remove the paper eject drive unit by lifting up the front edge.
7. Release the joints for the right and left slide covers and the edge guide.
8. Remove the E-ring located at left end of the paper load roller .
9. Adjust the paper load roller bushing with the cutout on the right frame.
10. Disengage the paper load gear at the right end of the paper load roller unit from the ASF
transmission gears in the middle frame. Then remove the paper load roller unit by sliding it toward
the left frame assembly.

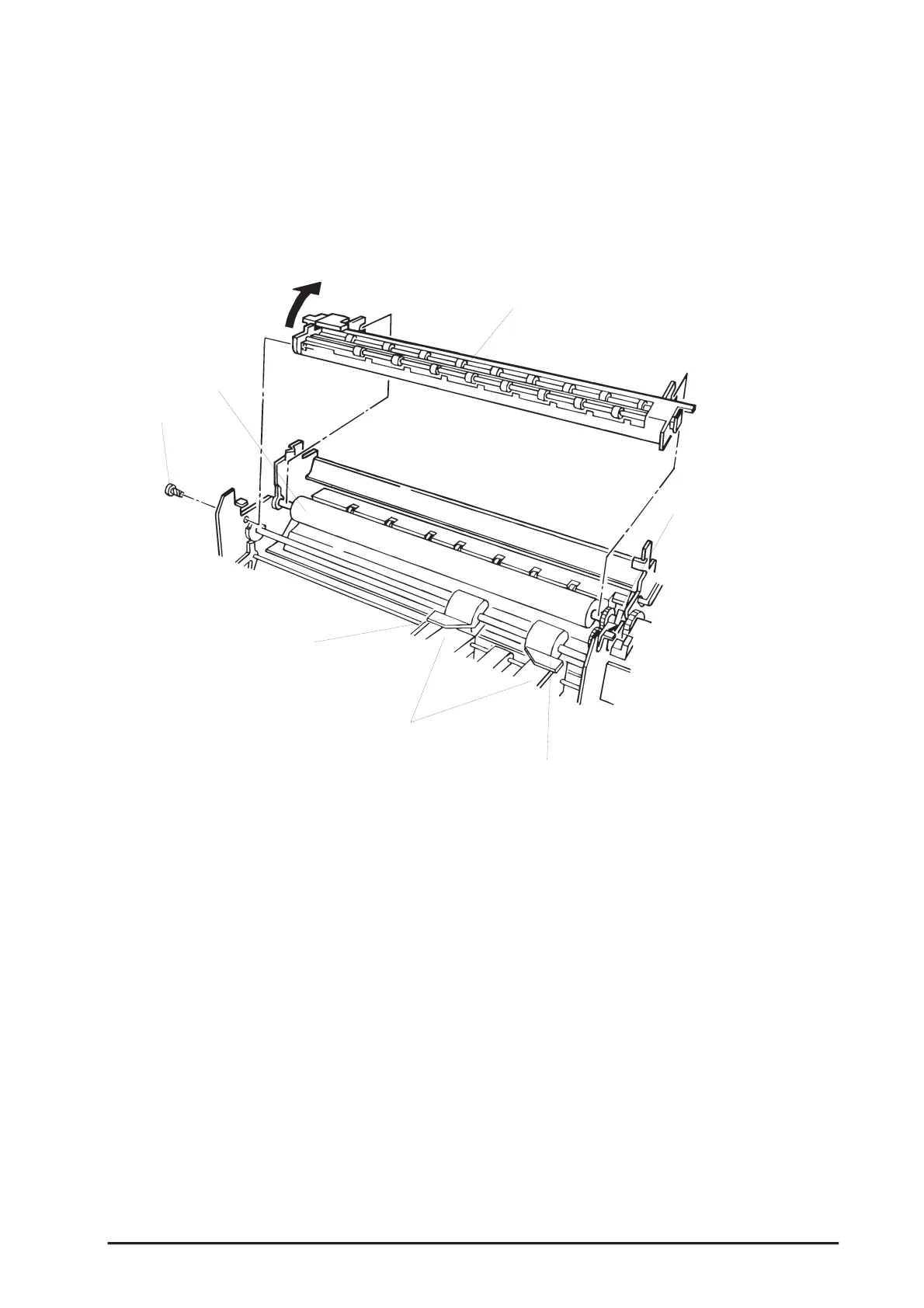

Paper Eject Drive Unit
Trigger Lever
Right Slide Cover in the
Paper Load Roller Unit
Edge Guide Unit
Left Slide Cover in the
Paper Load Roller Unit
PF Roller Unit
Screw (CBP 3X8)
Figure 3-25. Paper Eject Drive Unit Removal

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
