Epson Stylus Color 1520

Disassembly and Assembly
Rev. A
3-1
9
3.2.10.3 DE (Disengage) Sensor Removal
1. Remove the printer mechanism unit. (Refer to 3.2.6.)
2. Using the tweezers, release the hooks fixing the DE sensor to the cam select assembly, then
remove the DE sensor.
3. Remove the connector cable from the connector for the DE sensor.
Cam Select Assembly
Connector Cable for the DE Sensor
Hook fixing the DE Sensor
DE Sensor
Tweezers

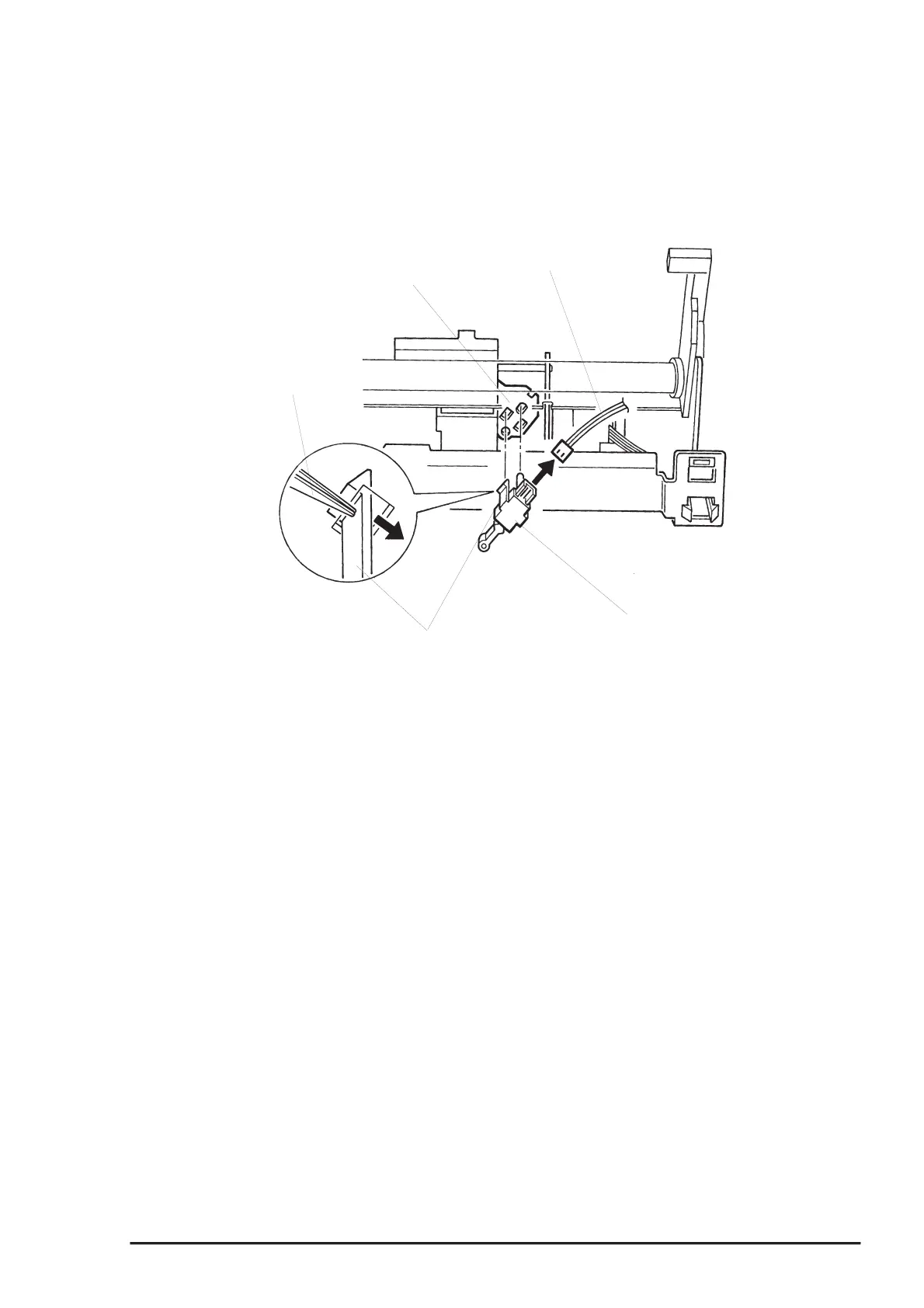

Figure 3-15. DE Sensor Removal
