3.2.1 Upper Housing Removal
1. Remove the knob, release lever, rear sheet guide, output tray, and paper support.
2. Remove the tractor unit by releasing the hook using the tweezers, then remove it from the printer
mechanism unit by lifting up the rear edge of the tractor unit.
3. Open the printer cover, and insert the tweezers into the cutouts at the back of the Panel Unit to
release the hooks securing the panel unit to the upper housing. Then disconnect the connector cable
for the Panel Unit and remove the Panel Unit.

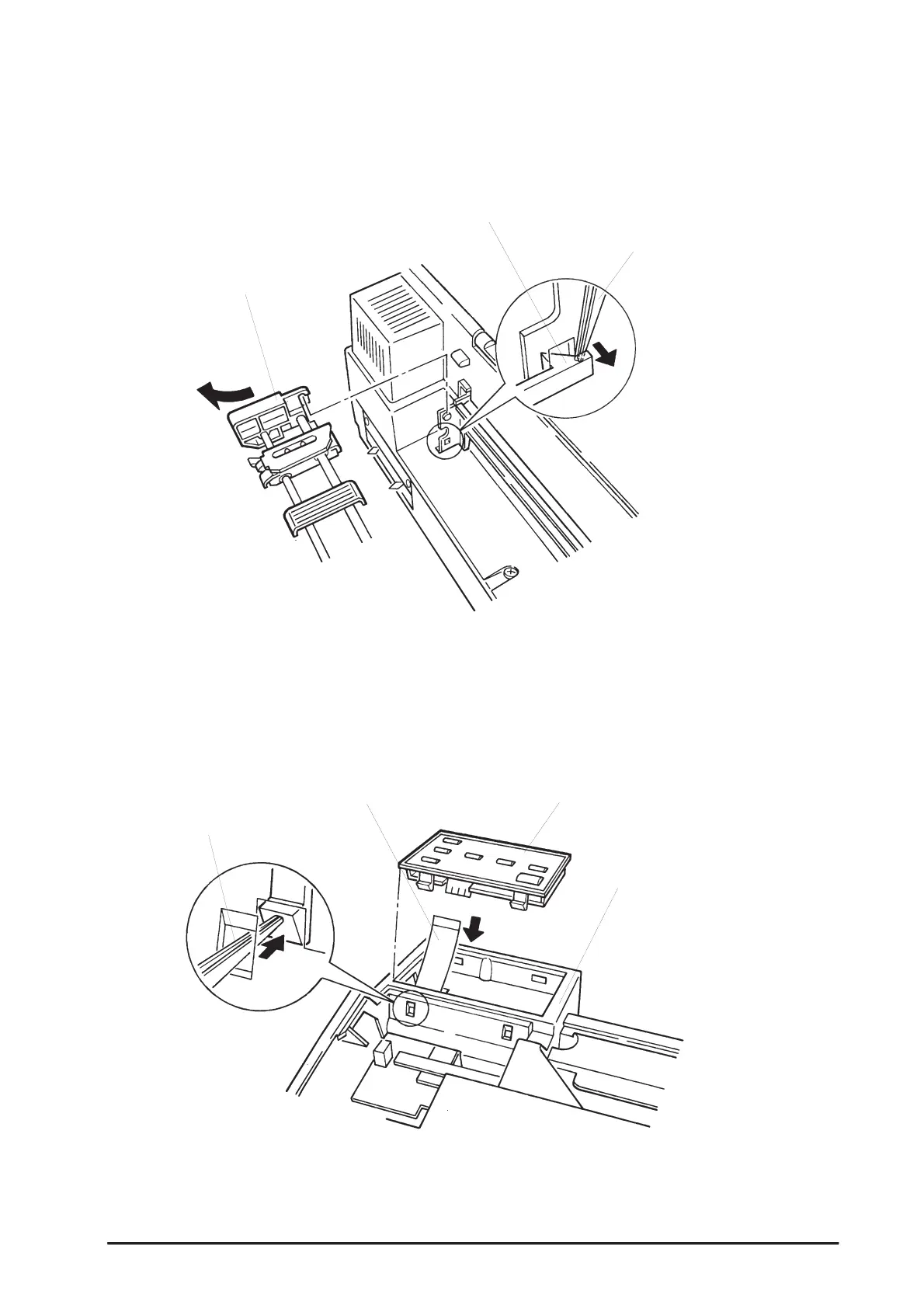

Tractor Unit
Hook in the Tractor Unit
Tweezers
Figure 3-2. Tractor Unit Removal
Tweezers
Connector Cable for the Panel Unit
Upper Housing
Control Panel
Figure 3-3. Panel Unit Removal
