Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
2-1
0
2.2.6 Ink System
The ink system for this printer is composed of the following mechanisms.
 Ink cartridge
 Pump mechanism
 Capping mechanism
 Waste ink drain pads
 Wiping mechanism

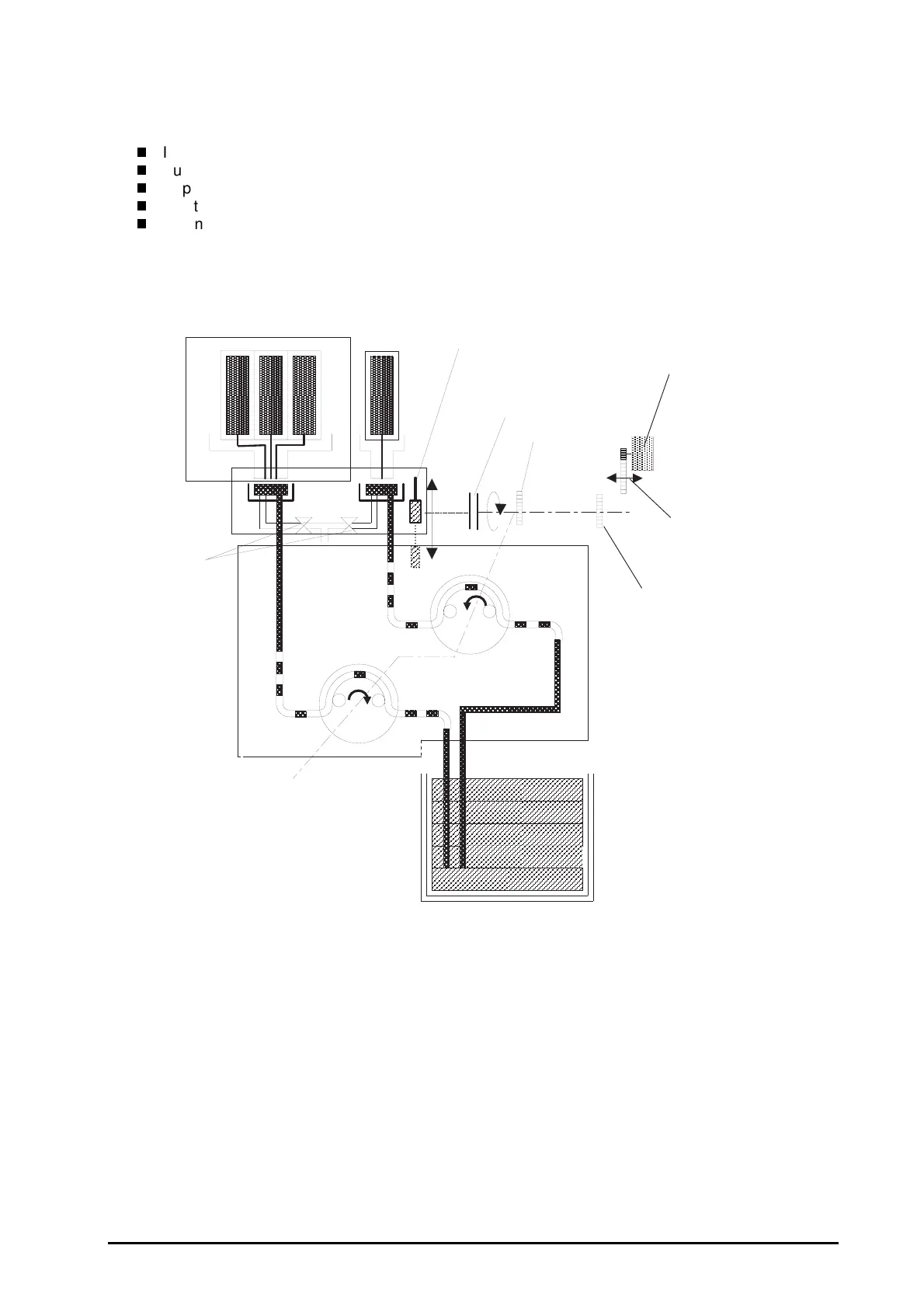

Figure 2-9 shows the block chart of the ink system.
Color Ink Cartridge
Black Ink
Cartridge
Cleaner Head for
Black and Color Inks
Clutch Unit
Combination Gear
Disengage Gear
Gear
Pump Unit
Pump 1
Pump 2
Air Valves
PF Motor
Waste Ink Drain Pads
Figure 2-9. Ink System Mechanism

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
