2.2.6.1 Pump Mechanism
1. Switching operation from the paper feed mechanism to the pump mechanism
The PF motor also functions as the pump motor by the switching operation of the PF motor drive
disengage mechanism. When the CR unit returns to the home position, the switch lever in the CR
unit pushes the cam lever. Then the disengage gear switches the torque from the ASF to the pump

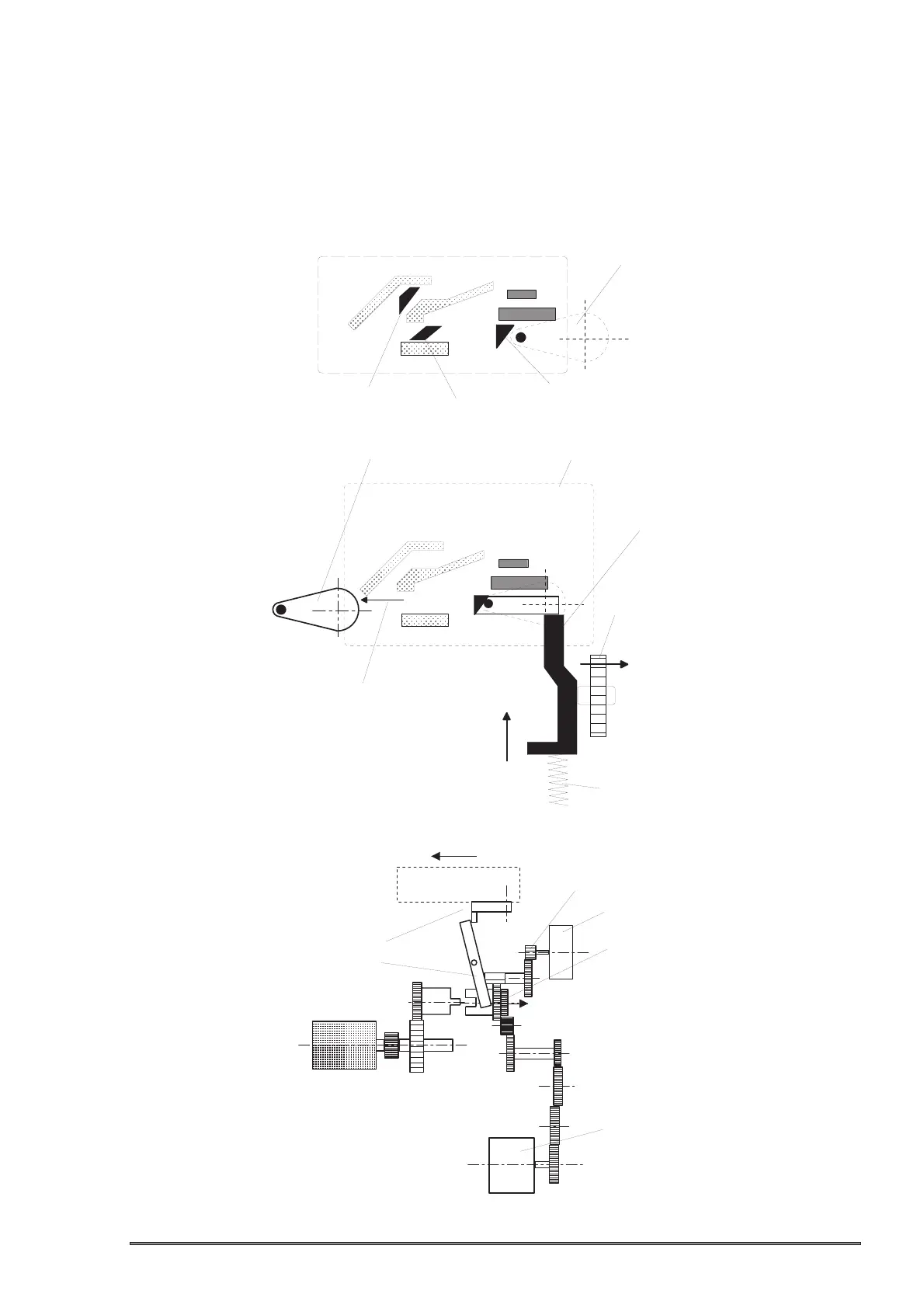

mechanism via the gear train. Figure 2-11 illustrates how the torque is transmitted from the paper
feed mechanism to the pump mechanism.
PF Motor Drive Disengage Mechanism
Switch Lever
(CR)
Release Cam Set Lever
ASF Transmission Gear set Lever
Release Lever
Release Cam
Switch Lever (CR)
PF Motor Drive Disengage Mechanism
Disengage Gear
Torsion Spring
The direction in which the CR moves.
Figure 2-10. Release Cam Reset
CR Unit
PF Motor Pinion Gear
PF Motor
Disengage Gear
Switch Lever
Release Cam
Pump Mechanism
Figure 2-11. Paper Feed Mechanism Function
