3.2.5 Cover Open Sensor Removal
1. Remove the upper housing. (Refer to Section 3.2.1.)
2. Disconnect the cover open sensor connector cable from the cover open sensor connector.
3. Release the hooks fixing the Cover Open Sensor to the paper eject frame using the tweezers then
remove the Cover Open Sensor.
Cover Open Sensor
Hook

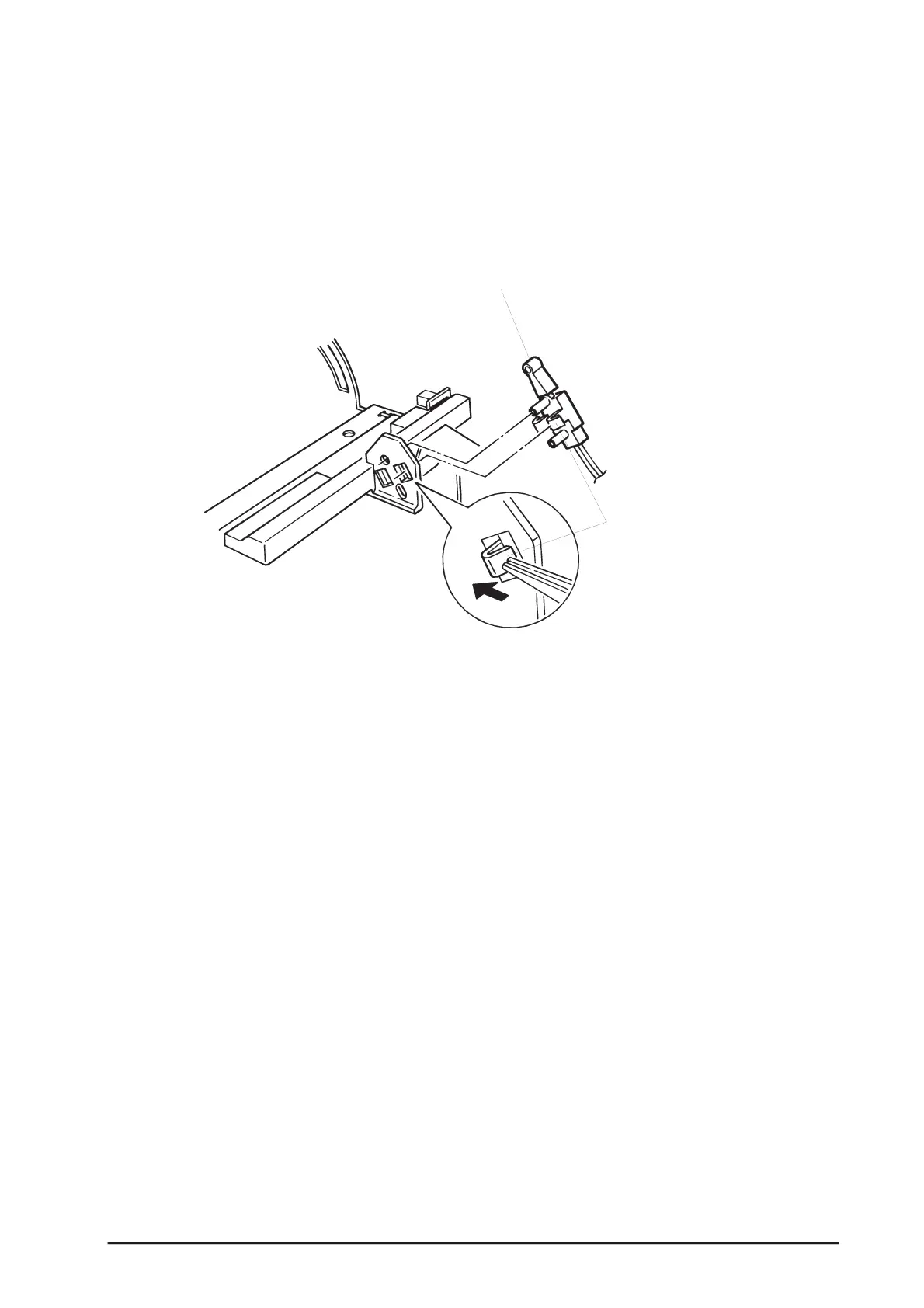

Figure 3-7. Cover Open Sensor Removal
