Epson Stylus Color 1520 Service Manual

Disassembly and Assembly
Rev. A
3-3
3
3.2.10.14 Middle Frame Assembly Removal
1. Remove the printer mechanism unit. (Refer to Section 3.2.6.)
2. Remove the paper eject frame. (Refer to Section 3.2.10.7.)
3. Remove the pump unit. (Refer to Section 3.2.10.8.)
4. Remove the CR unit. (Refer to Section 3.2.10.9.)
5. Remove the base frame assembly. (Refer to Section 3.2.10.10.)
6. Remove the PF roller assembly. (Refer to Section 3.2.10.12.)
7. Remove the edge guide unit. (Refer to Section 3.2.10.6.)
8. Remove 1 screw (CBS, 3X6) securing the paper load guide frame to the middle frame assembly.
9. Remove the connector cable for the middle frame assembly from the clump.
10. Remove 2 screws (CBS, 3X6) securing the middle frame assembly to the bottom main frame
assembly. Then remove the middle frame assembly.

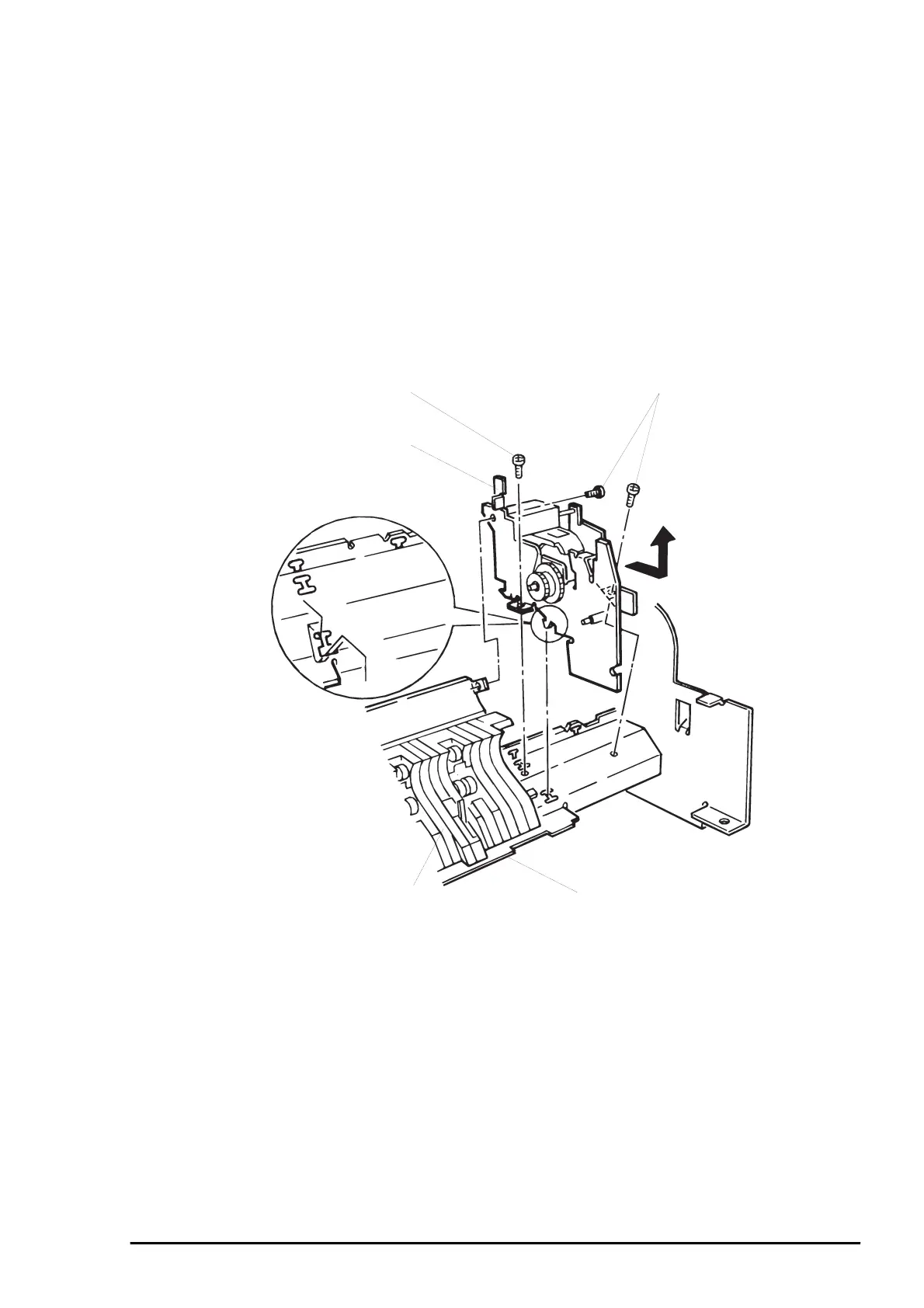

Screws (CBS 3X6)
Middle Frame Assembly
Main Bottom Frame Assembly
Paper Load Guide Frame Assembly
Screw (CBS 3X6)
Figure 3-30. Middle Frame Assembly Removal
