Disassembly and Assembly
Rev. A
3-2
3
3.2.10.7 Paper Eject Frame Removal
1. Remove the printer mechanism unit. (Refer to Section 3.2.6.)
2. Disconnect the connector cables for HP sensor and cover open sensor from the connectors.
3. Remove 3 screws (CBS, M3X6) securing the paper eject frame to the printer mechanism unit.
4. Remove the paper eject frame by releasing the joints.
When removing the paper eject frame, place a clean piece of paper between the platen surface in
the front paper guide assembly and printheads in the CR unit to protect the printheads.
Screw (CBS 3X6)
Paper Eject Frame
Printer Mechanism Unit
Screws (CBS 3X6)

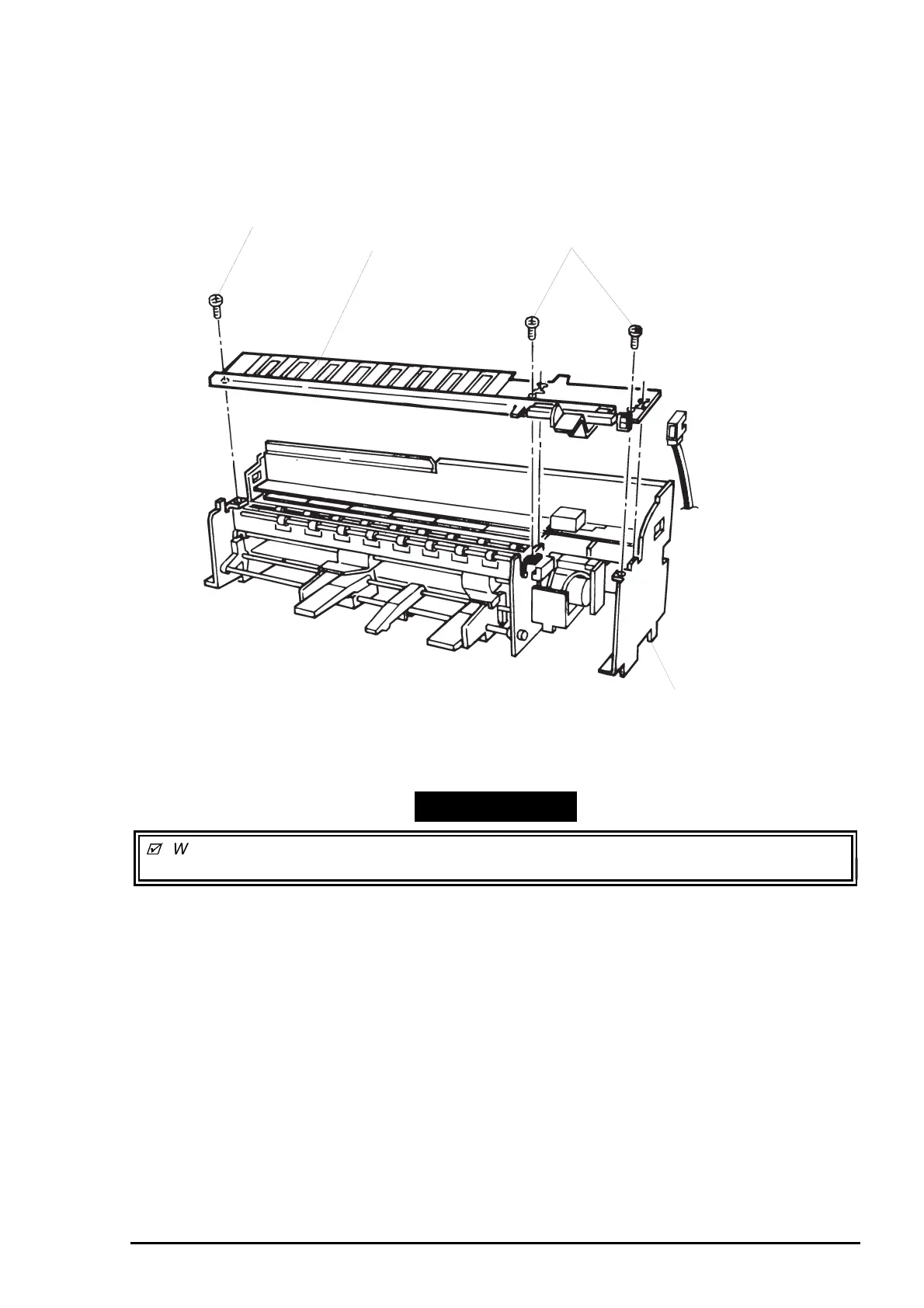

Figure 3-20. Paper Eject Frame Removal
WORK POINT
