Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
5-
8
5. Control panel operation is abnormal.
START
END
END
Is the problem
corrected?
NO
YES
Is the control
panel properly
connected?
Replace the control panel.
Connect the control panel
properly.
Is the problem
corrected?
Replace the MAIN board.
Replace the control panel.
YES
YES
NO
NO

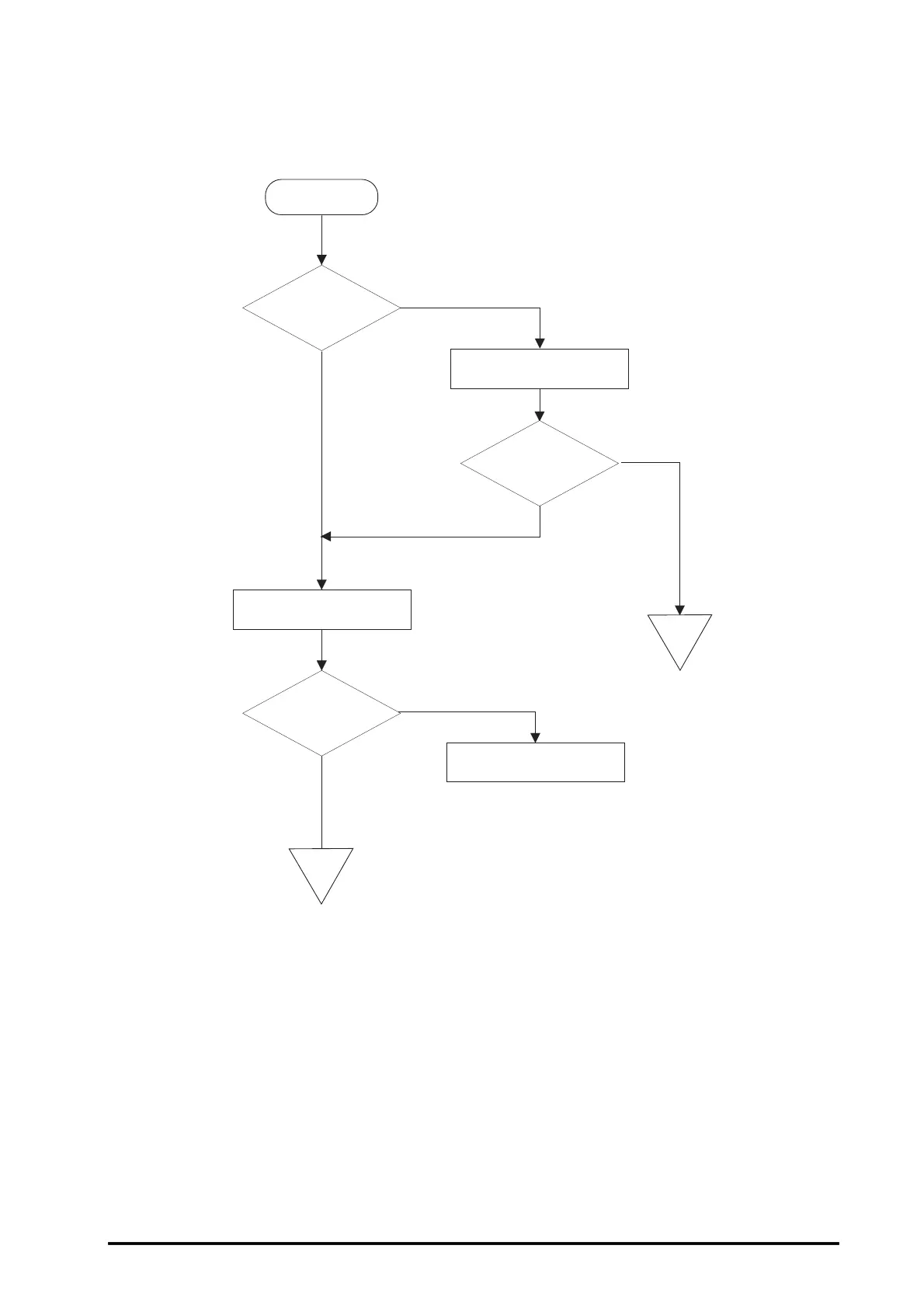

Figure 5-6. Flowchart (5)

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
