3.2.10.2 PF (Paper Feed) Motor Assembly Removal
1. Remove the printer mechanism unit. (Refer to 3.2.6.)
2. Remove the connector cable for the PF motor assembly from the connector cable clump on the
printer mechanism unit.
3. Remove 2 hexagon nuts securing the PF motor assembly to the middle frame using a spanner, then
remove the PF motor assembly.

The pinion gear on the PF Motor Assembly is highly precise and tends to rust easily. Therefore do
not touch it with your bare hand, or hit it with other objects.
WORK POINT
PF Motor Assembly
Sub Frame Assembly
Hexagon Nuts (M3)

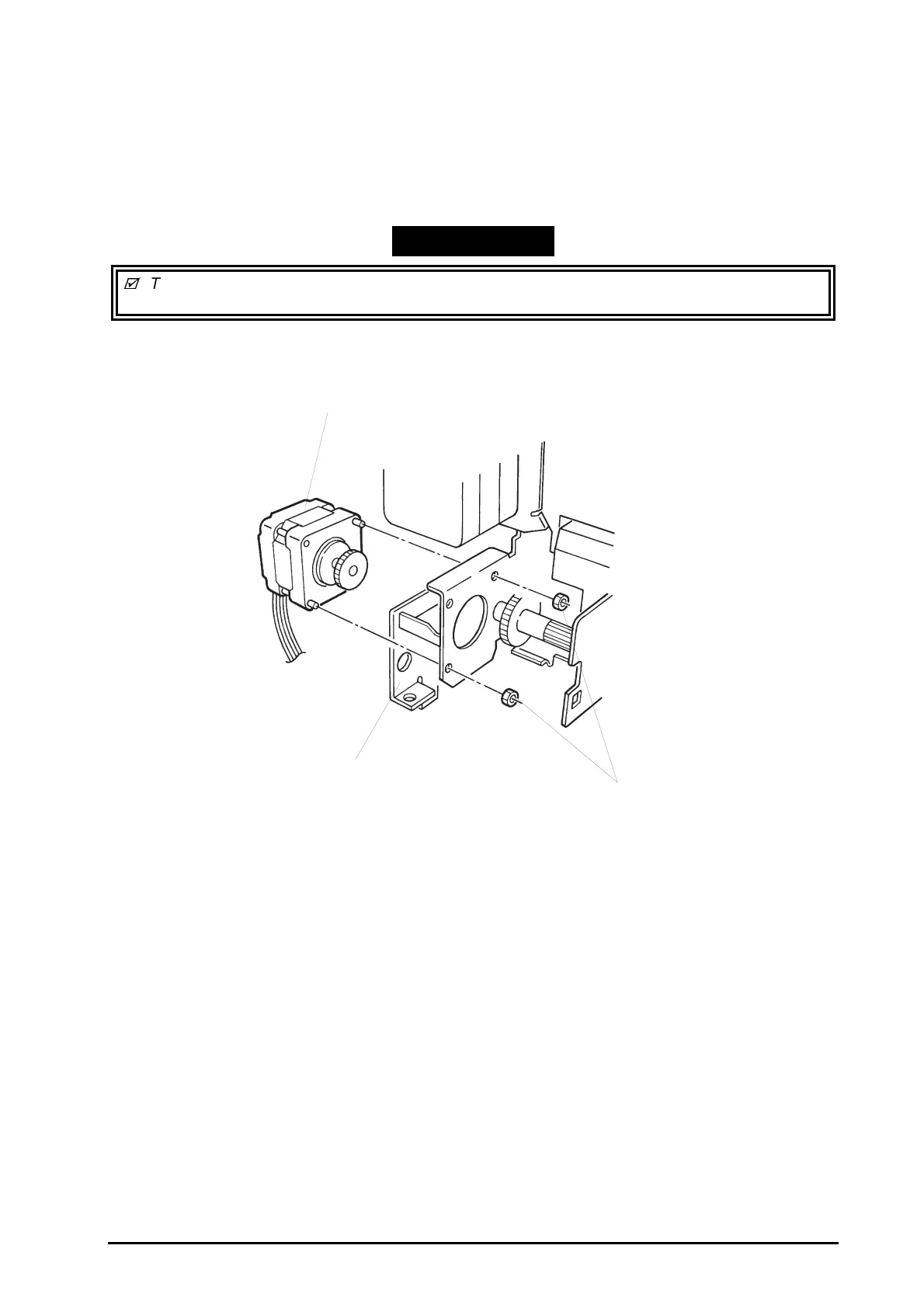

Figure 3-14. PF Motor Assembly Removal
