3.2.10.4 Front/Rear PE (Paper End) Sensor Removal
1. Remove the printer mechanism unit. (Refer to 3.2.6.)
2. Using the tweezers, release the tubs fixing the Front/Rear PE sensors to the rear paper guide at the
bottom of the printer mechanism unit.
3. Disconnect the connector cables for the PE sensor from the PE sensor connectors.
Rear Paper Guide Assembly
Connector Cable
for the Rear PE Sensor
Rear PE Sensor
Hooks
Front PE Sensor
Connector Cable
for the Front PE Sensor

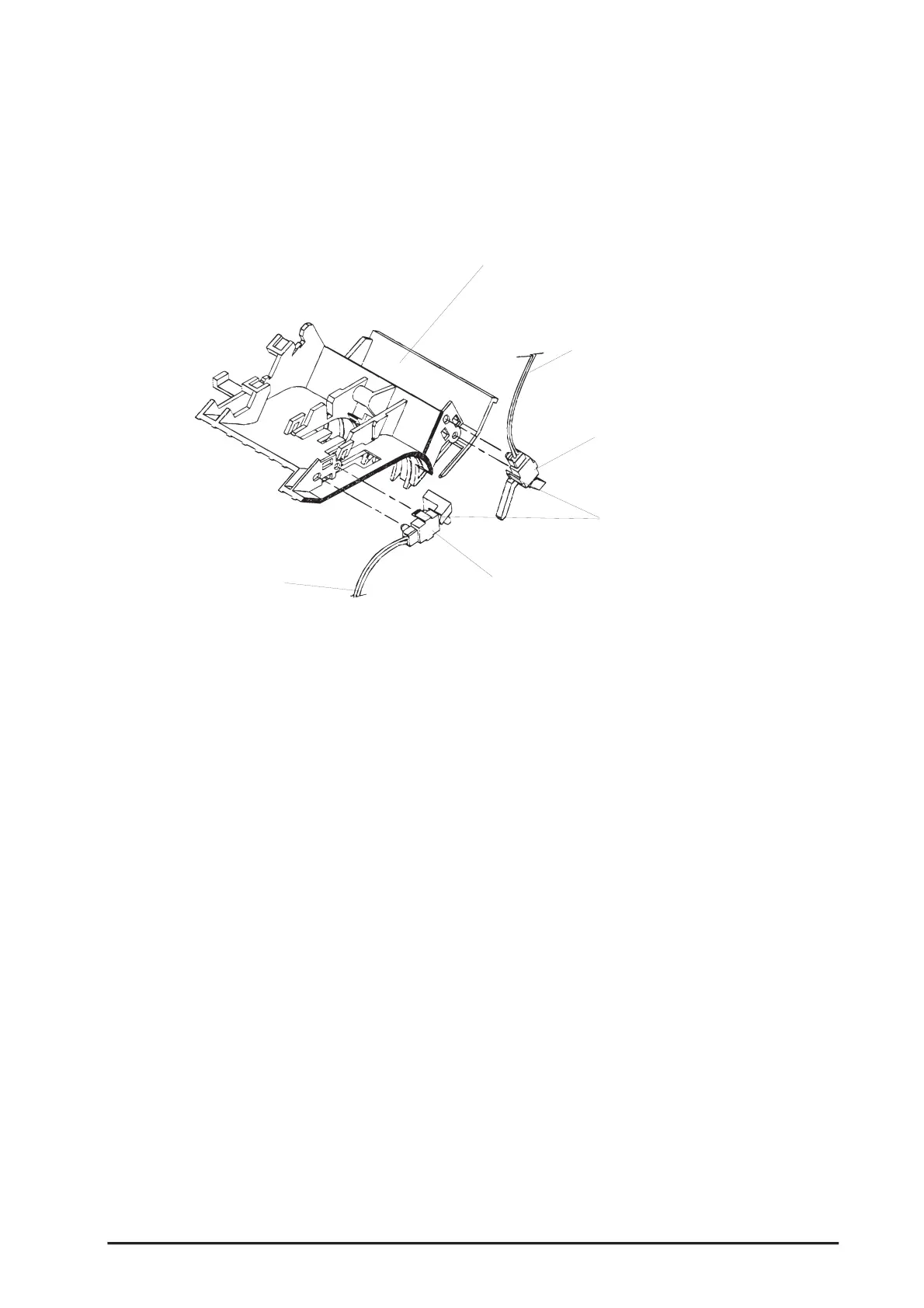

Figure 3-16. Front/Rear PE Sensor Removal
