Epson Stylus Color 1520 Service Manual

Operating Principles
Rev. A
2-1
2.1 Overview
This chapter describes the operating principle of the printer mechanism and electrical circuit.
2.2 Printer Mechanism Operating Principle
2.2.1.1 M-4I60 Printer Mechanism
This printer is composed of the printhead unit, paper feeding mechanism, CR mechanism and the pump
mechanism. The block chart for the printer mechanism is shown in Figure 2-1. The printer mechanism of
this printer has 2 motors: CR motor and PF motor. The torque from the CR motor moves the CR in the
column direction. The torque from the PF motor is transmitted to 2 ways: to the paper feeding
mechanism and to the pump mechanism. The direction is determined by the CR position. The release
lever transmits the torque from the PF motor to the tractor side to feed continuous paper.
Release Lever
Disengage Mechanism
PF Motor
CR Motor
Color
Push Tractor Mechanism
Paper Feed Mechanism
ASF Mechanism
(For Cut sheet only.)
`Pump Mechanism
CR Unit
Black

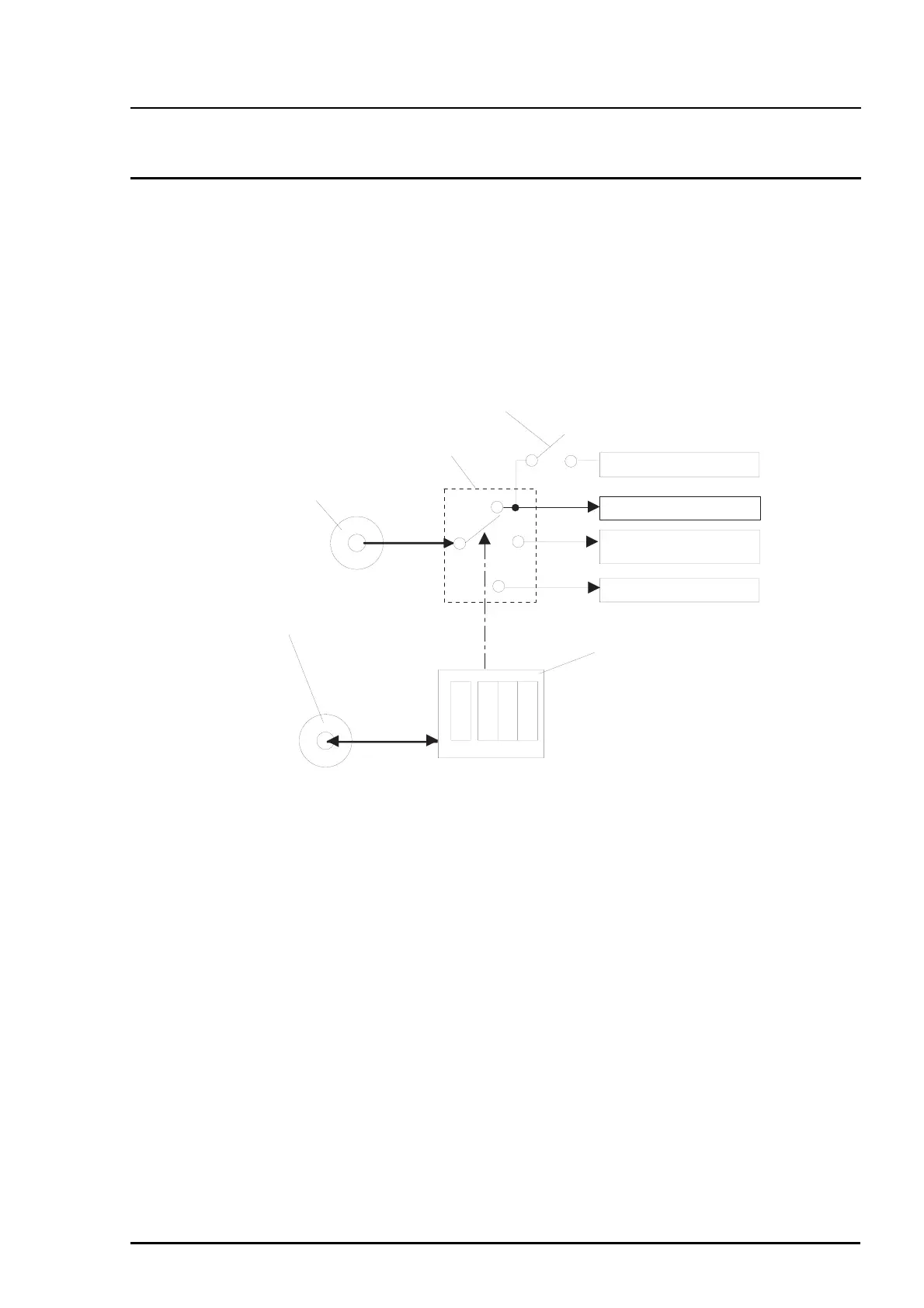

Figure 2-1. Printer Mechanism Block Diagram

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
