Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
3-1
6
3.2.10 Printer Mechanism Unit Disassembly
This section describes how to disassemble and reassemble the units and parts in the M-4160 printer
mechanism.
3.2.10.1 Carriage (CR) Motor Assembly Removal
1. Remove the printer mechanism unit. (Refer to 3.2.6.)
2. Release the timing belt by removing the extension spring.
3. Disengage the timing belt from the pulley on the CR motor assembly.
4. Turn the CR motor assembly counter clock wise in the order indicated with arrows to disengage the
joint with the base frame assembly. Then remove the CR motor assembly by moving it toward the
bottom edge of the motor frame.
5. Disconnect the CR motor assembly connector cable from the connector on the CR motor assembly.

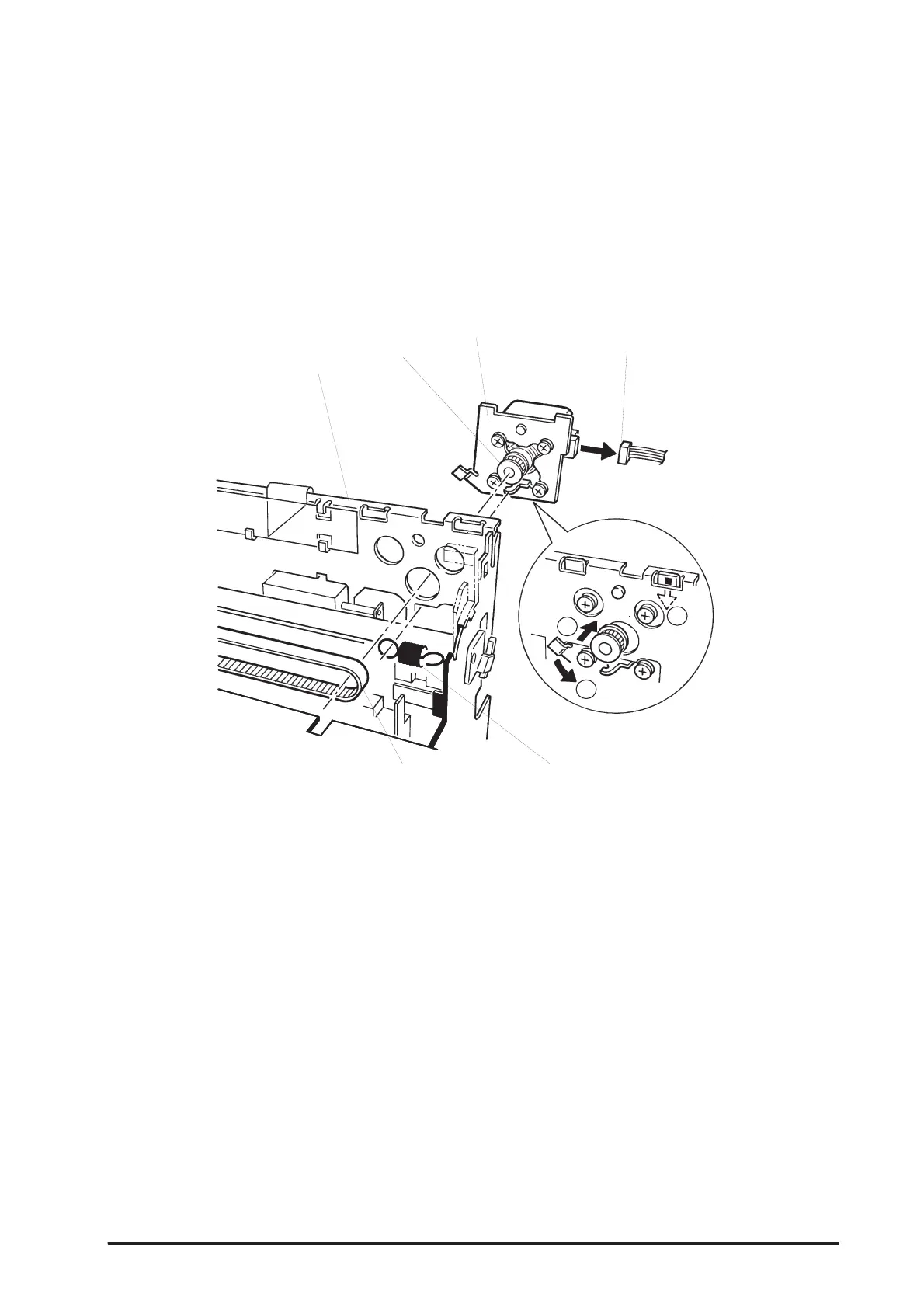

Connector Cable for the CR Motor
CR Motor
Drive Pulley
Base Frame Asssembly
Timing Belt
Extension Spring
A
B
C
Figure 3-12. CR Motor Assembly Removal

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
