Epson Stylus Color 1520 Service Manual

Product Description
Rev. A
1-1
1.1 Features
The EPSON Stylus COLOR 1520 is a business-use, high speed, and high-quality color ink jet printer.
The main features of this printer are:
 High Speed Printing
 400 cps for LQ mode
 800 cps for draft mode
 High print quality for color graphics
 High Resolution :1440 (H) X 720 (V) dpi printing
 Colors :Cyan, Magenta, Yellow, Black
 Printing Method :Traditional and new micro weave printing
 Smaller dot diameter for image improvement
 Built-in auto sheet feeder with a wide availability and high capacity
 This printer holds :Envelope up to A2 size portrait
:100 cut sheets (55 g/‡u)
:10 envelopes
:50 transparency films
:70 special paper
 Built-in 2 interfaces and 1 optional interface card
 Mac serial interface ( up to approximately 900 kbps)
 Bi-directional parallel interface (IEEE1284 level 1 device)
 Optional Type-B interface card
 4 scalable fonts and 5 LQ fonts
 Scalable fonts :Roman T, Sans Serif H, Roman, Sans Serif
 LQ fonts :Roman, Sans Serif, Courier, Prestige, Script
 Useful character tables :Italic, PC437, PC850, PC860, PC861, PC863, PC865, BRASCII,
Abicomp, Roman 8, ISO Latin 1
PC437 Greek, PC852, PC853, PC855, PC857, PC866, PC869,
MOZOAWIA, Code MJK, ISO 8559-7, Latin 1T, Bulgaria, PC774,
Estonia, ISO 8859-2, PC866 LAT

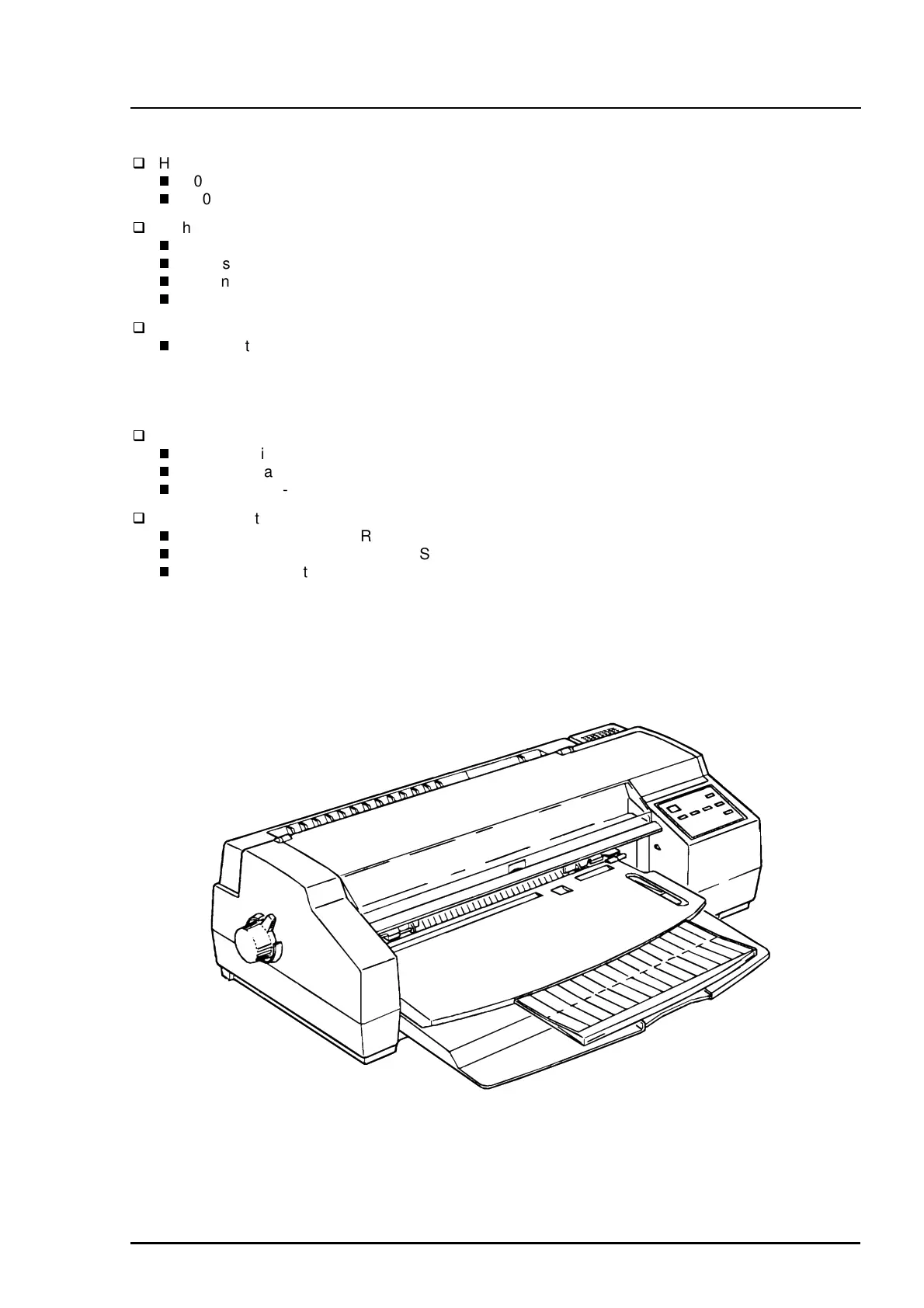

Figure 1-1. Exterior View of the EPSON Stylus COLOR 1520

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
