Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
3-1
2
3.2.7 PSB/PSE Board Assembly Removal
1. Remove the upper housing. (Refer to Section 3.2.1.)
2. Remove the printer mechanism unit. (Refer to Section 3.2.6.)
3. Disconnect the power cable connector from CN1, and the C211 MAIN board connector cable from
the CN2.
4. Remove 4 screws (CBP, 3X12) securing the PSB/PSE Board to the lower housing, and remove the
PSB/PSE Board.

Make sure that the AC power cable is unplugged before disconnecting the power cable
connector.
WARNING
Screws (CBP 3X12)
PSB/PSE Board
CN1
CN2
Lower Housing

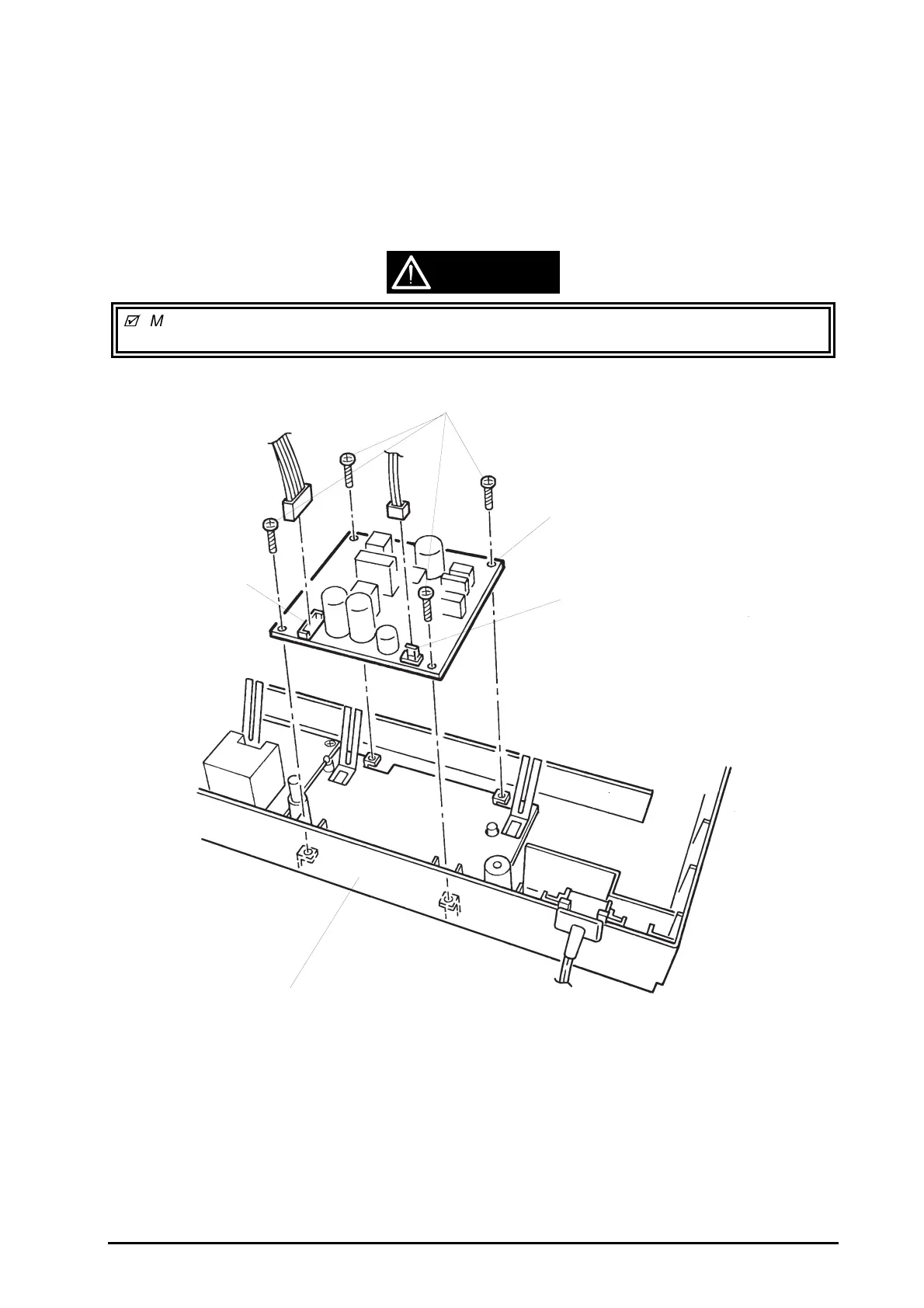

Figure 3-9. PSB/PSE Board Removal

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
