Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
2-1
2
2. Switching operation from the pump mechanism to the paper feeding mechanism
When the CR unit shifts from the right end to the left end, the switch lever in the CR unit pushes the
cam release. Then the disengage gear switches the torque from the pump mechanism to the paper
feed mechanism as a result. Figure 2-13 illustrates how the torque is transmitted from the pump
mechanism to the paper feed mechanism.

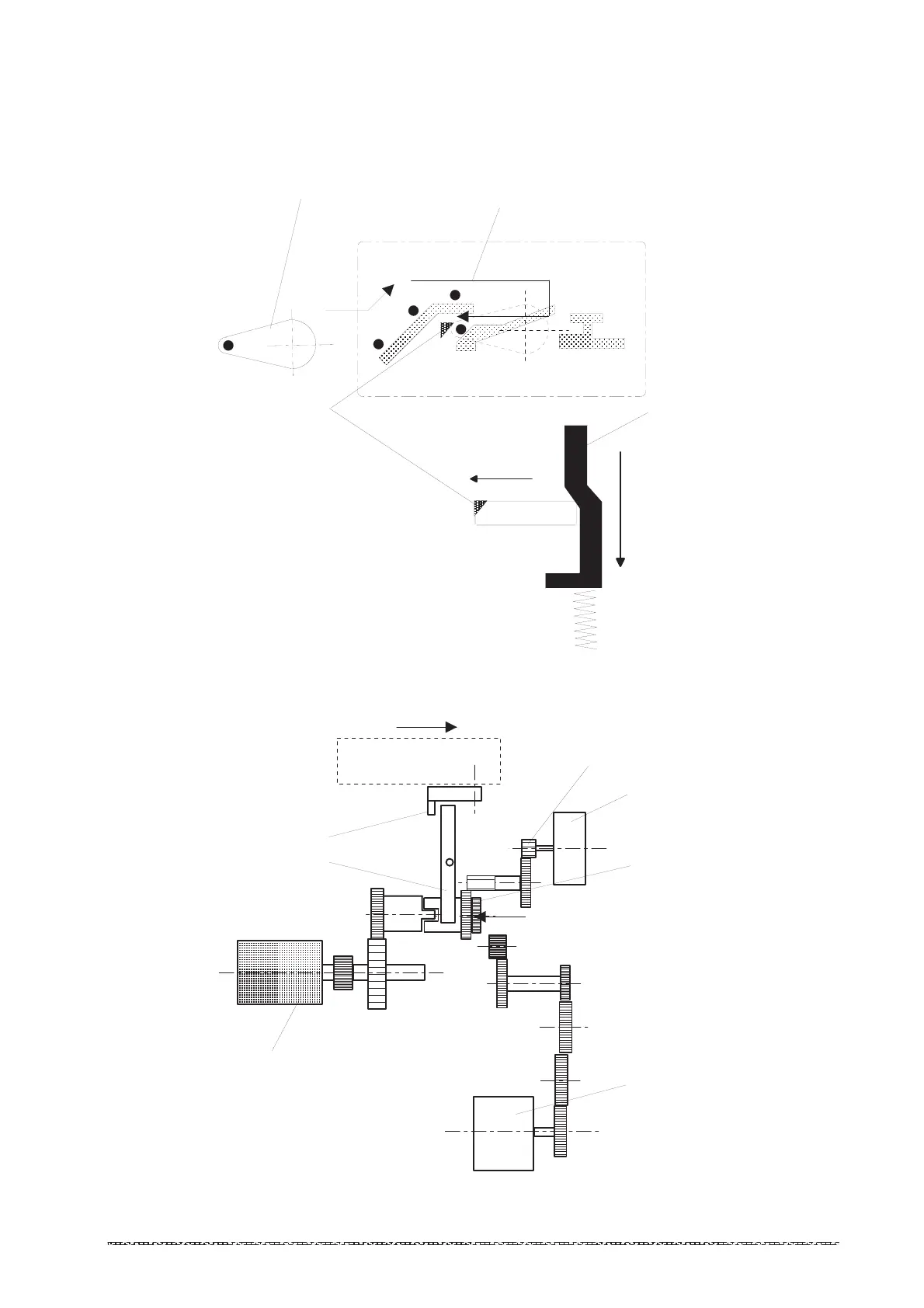

Switch Lever (CR)
Disengage Mechanism
Path of the CR
Release Lever
Release Cam
Figure 2-12. Release Cam Reset (2)
CR Unit
PF Motor Pinion Gear
PF Motor
Disengage Gear
Switch Lever
Release Cam
PF Roller
Pump Mechasnim
Figure 2-13. Paper Feed Mechanism Function (2)

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
