Epson Stylus Color 1520 Service Manual

Adjustment
Rev. A
4-
3
OK
NG
NO
YES
NO
YES
YES
YES
NO
NO
Start
Shift the CR to the left end.
Set the PG lever to "0".
Adjust the PG.
Is the left PG OK?
Set the PG lever to "+".
Shift t he CR to the right end.
PG Adjustment
Widen the PG.
Narrow the PG.
Returm to the main flow.
Is the right PG OK?
Set the PG lever to "+".
Shift the CR unit to the left end.
Set the PG lever to "0".
Adjust the PG.
Is the left PG OK?
END
Set the PG lever to "+".
Set the PG lever to "0".
Adjust the PG.
Does a
1.14-mm Gauge
fit?
Does a
1.18-mm Gauge
fit?

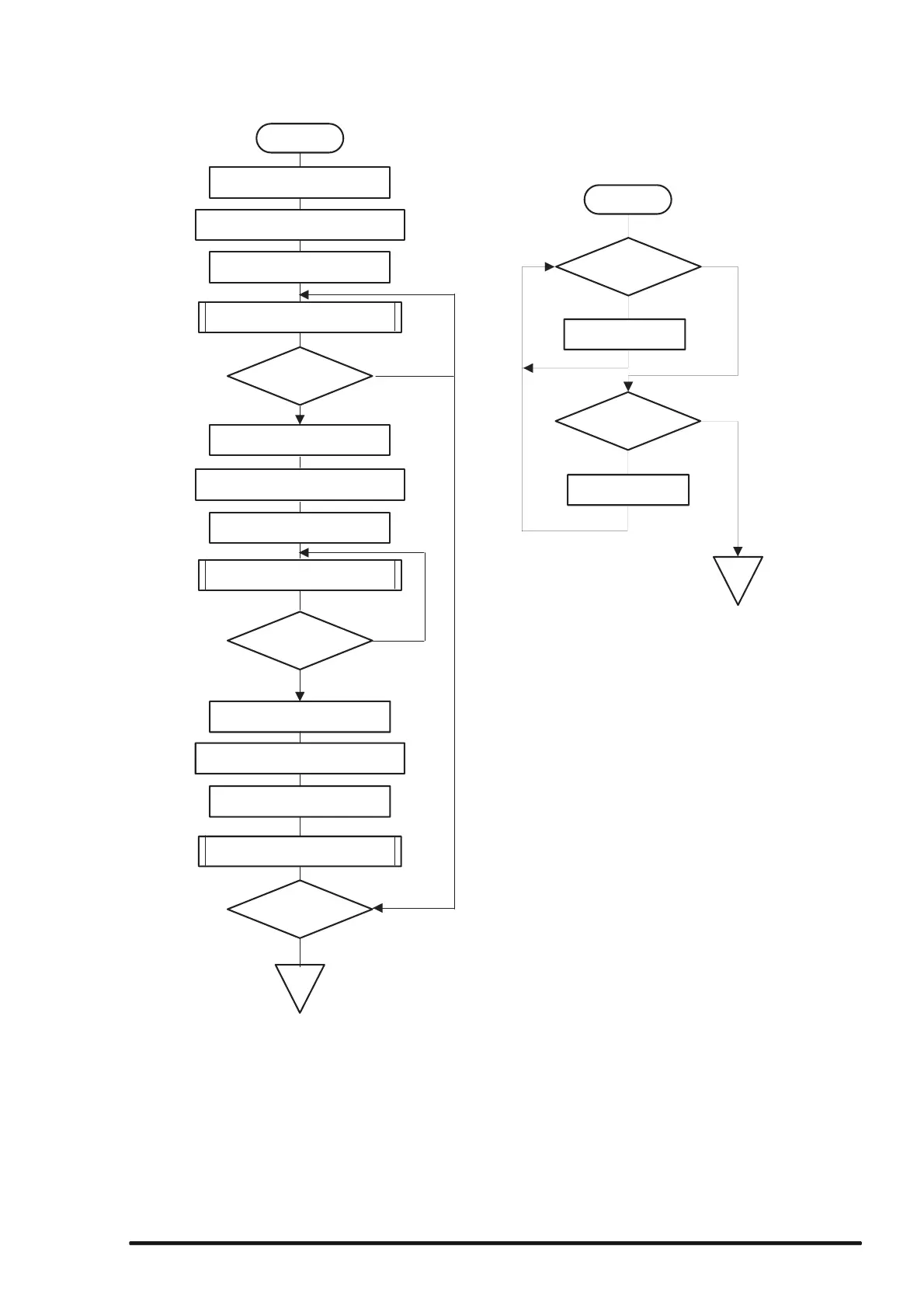

Figure 4-2. Platen Gap Adjustment Flow Chart
