Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
3-2
6
 After removing the CR unit, do not touch and damage the heads. Protect the heads from static
electricity, because the head drive circuit is directly attached to the head board.
 Pay attention to the oil pad when removing the CR guide shaft from the CR unit. It tends to
dislocate.
 When installing the CR guide shaft to the printer mechanism unit, be sure to fit the platen gap
adjust lever to the right frame assembly. (Refer to the figure below.)
 Perform platen gap adjustment, Bi-directional adjustment, and Uni-directional adjustment after
installing the CR unit and parallelism adjust bushings. (Refer to Chapter 4.)
 If the printheads are replaced along with the CR unit, be sure to write head data to the EEPROM.
(Refer to Chapter 4.)
 When engaging the timing belt to the CR unit, note 2 parts of the belt: flat part and tooth part. Be
sure to position the 2 parts of the timing belt as shown in the figure below.
WORK POINT
REQUIRED ADJUSTMENT
WORK POINT
CR Motor Assembly Side
Timing Belt
Flat
CR Assembly Side

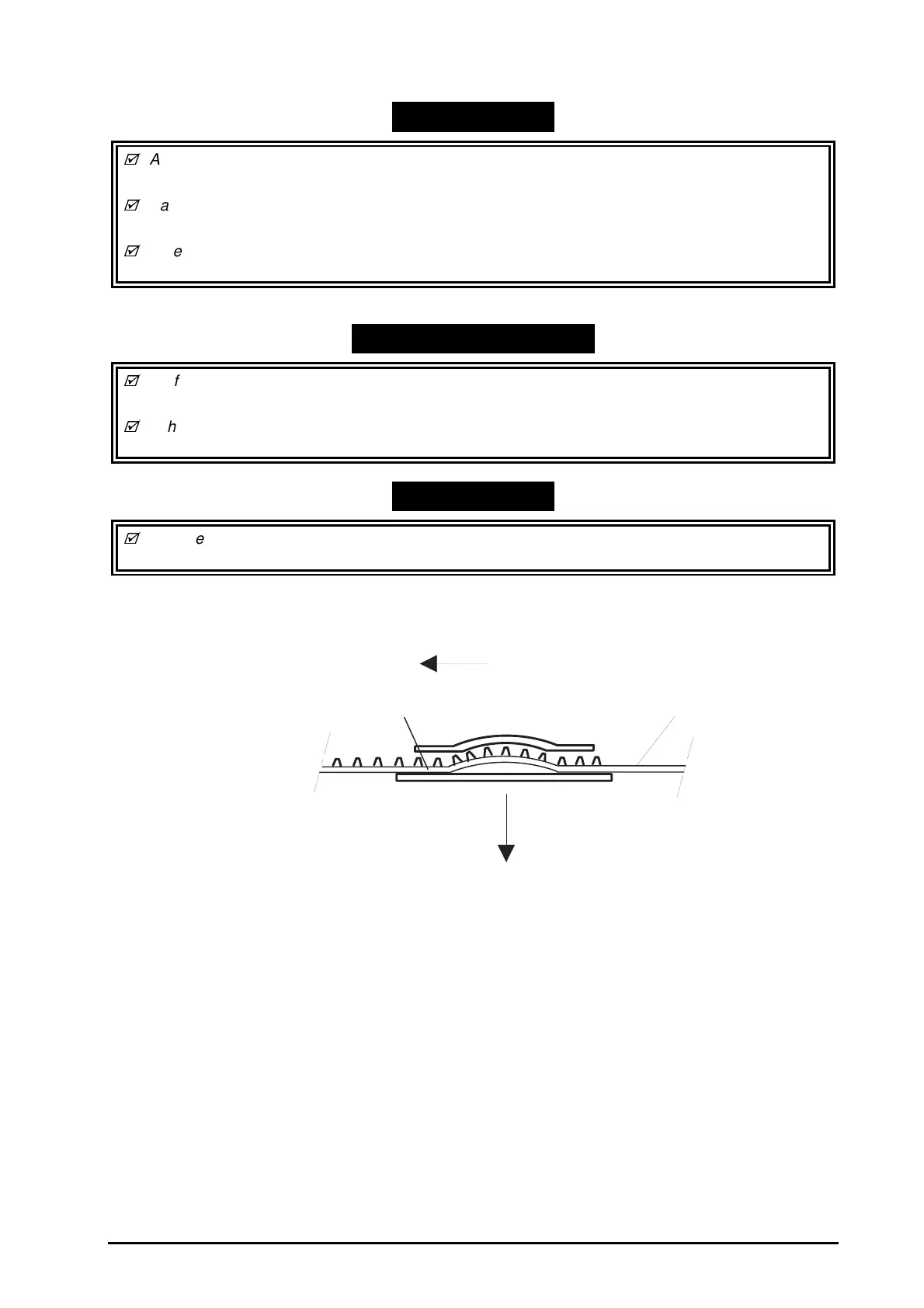

Figure 3-23. Timing Belt Installation
