EPSON Stylus COLOR 440, 640, and 740 Chapter 4 Disassembly and Assembly
104
4.2.4.5.2 Stylus COLOR 440 and 640
NOTE: These instructions apply to the Stylus COLOR 440 and
640. See the previous page for the 740.
1. Remove the housin
g
.
(
Refer to Section 4.2.1.
)
2. Remove the left front panel.
(
Refer to Section 4.2.3.
)
3. Remove the waste ink pad assembl
y
.
(
Refer to Section 4.2.4.2.
)
4. Remove the board assembl
y
(
see Section 4.2.2
)
. Then disconnect
the PF motor connector
(
CN7
)
from the main board.
5. Remove the 2 screws securin
g
the PF motor to the frame.
(
See
Fi
g
ure 4-14.
)
Slide the PF motor toward the front of the printer so
that the motor’s pinion
g
ear ali
g
ns with the lar
g
er hole in the frame,
and remove the PF motor.
(
See Fi
g
ure 4-13.
)

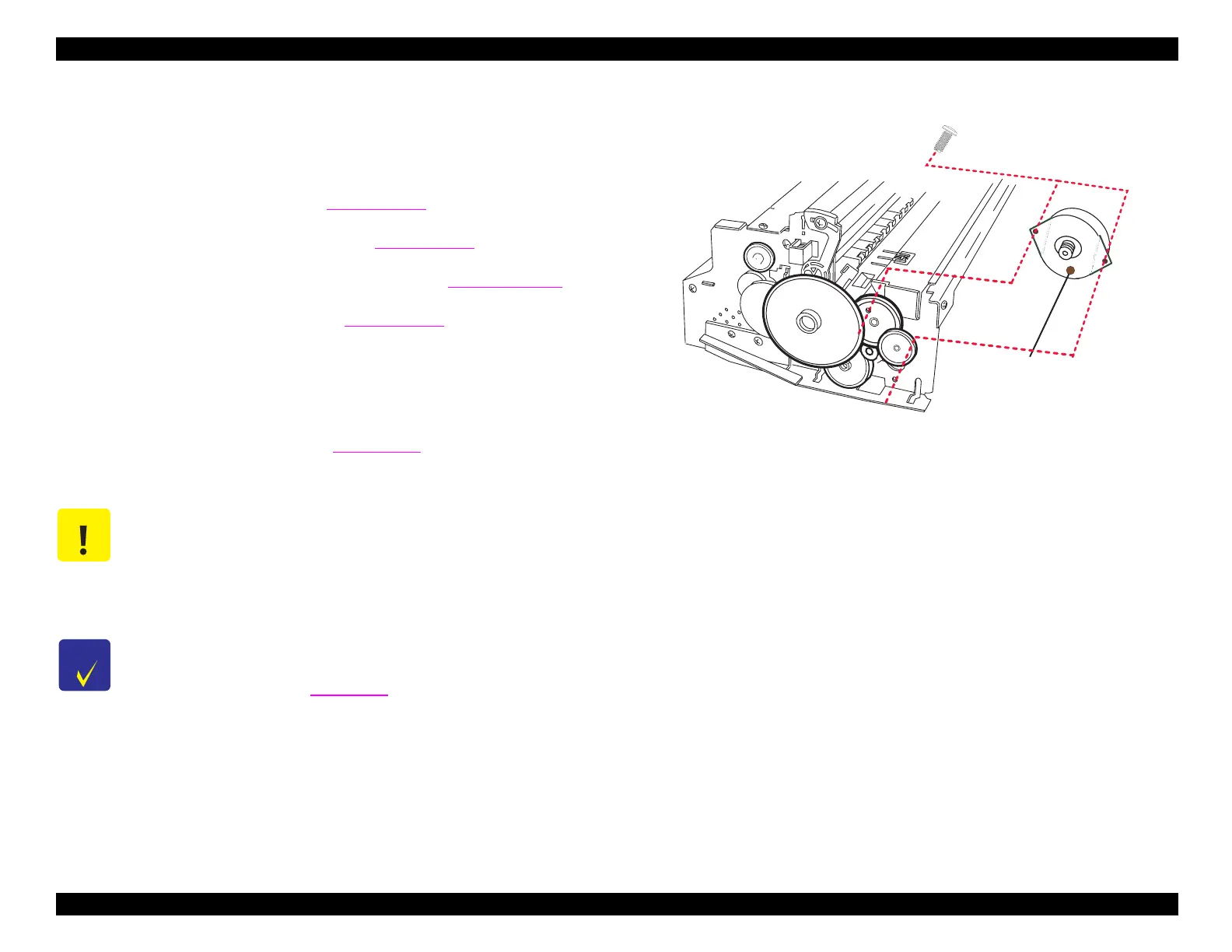

Figure 4-14. Removing the PF Motor Assembly
(Stylus COLOR 440, 640)
CAUTION
Handle all the gears carefully, as you would a bearing
surface; do not damage or mar the teeth and grooves of
the gears.
CHECK
POINT
During reassembly, be sure to route the PF motor cable
through the right cable hook and the right cable holder, as
seen from the rear (see
Fi
g
ure 4-3
).
PF M otor Assem bly
