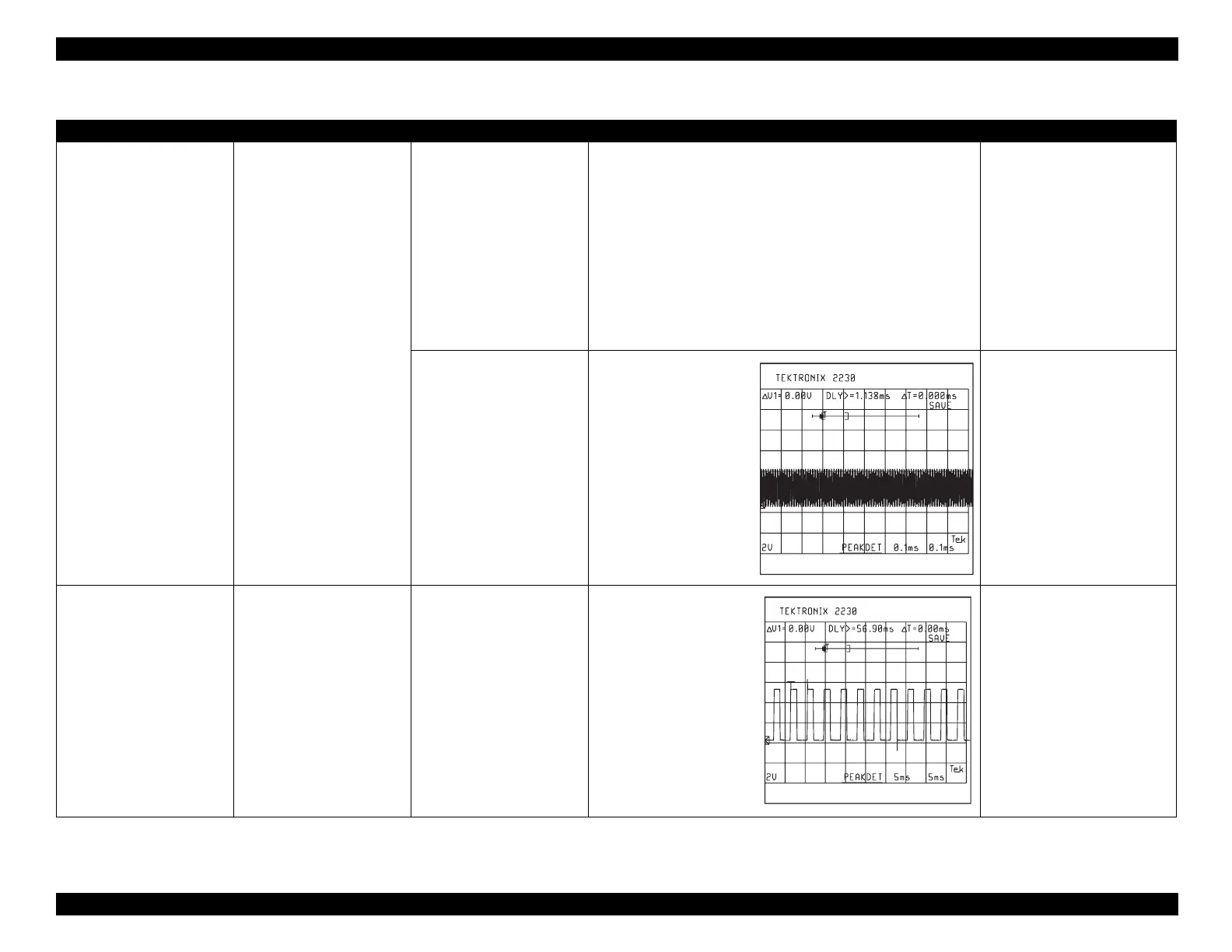

EPSON Stylus COLOR 440, 640, and 740 Chapter 3 Troubleshooting
79
(Continued)
The printer does not
operate at all.
(Continued)
CPU does not operate.
(Continued)
Control ROM, D-RAM,
and Mask ROM are
defective, or are not
being selected
correctly.
Stylus Color 740:
• If you cannot find a waveform at Pins 2, 128, and 127 of
IC1, the chip is defective.
• If you cannot find a waveform at Pin 85 of IC2, the chip is
defective.
• If you cannot find the waveform at 13-pin of IC3, the IC3 is
dead.
• If you cannot find a waveform at Pin 27 of IC4 or IC5, the
respective chip is defective.
• If you can not find a waveform at Pin 14 of IC6, the chip is
defective.
Stylus Color 740:
•Replace IC1.
•Replace IC2.
•Replace IC3.
• Replace IC4 or IC5.
•Replace IC6.
Stylus COLOR 440:
CRU2 is defective.
Stylus COLOR 640:
CR2 is defective.
Stylus COLOR 740:
CR1 or IC2 is defective.
Stylus COLOR 440,
640:
Check the waveform at
Pins 27 and 28 of IC1.
Stylus COLOR 740:
Check the waveform at
Pins 118 and 119 of IC2.
Also, check the output
waveform at Pin 91 of
IC2.
Stylus Color 440, 640:
Replace CRU2 or CR2.
Stylus Color 740:
Replace CR1 or IC2.
The carriage does not
operate normally.
(Continued on the next
page.)
The carriage motor does
not operate at all or it
produces an abnormal
noise.
(Continued on the next
page.)
IC2 is defective.
Stylus COLOR 440:
Check the waveform at
Pins 25 and 18 of IC14.
Stylus COLOR 640:
Check the waveform at
Pins 43 and 26 of IC14.
Stylus COLOR 740:
Check the waveform at
Pins 27 and 16 of IC11.
Replace IC2.
Table 3-6. Unit Repair of Main Board (continued)
Symptoms Condition Cause Check Point Solution
