DISASSEMBLY/ASSEMBLY Printer Section 129

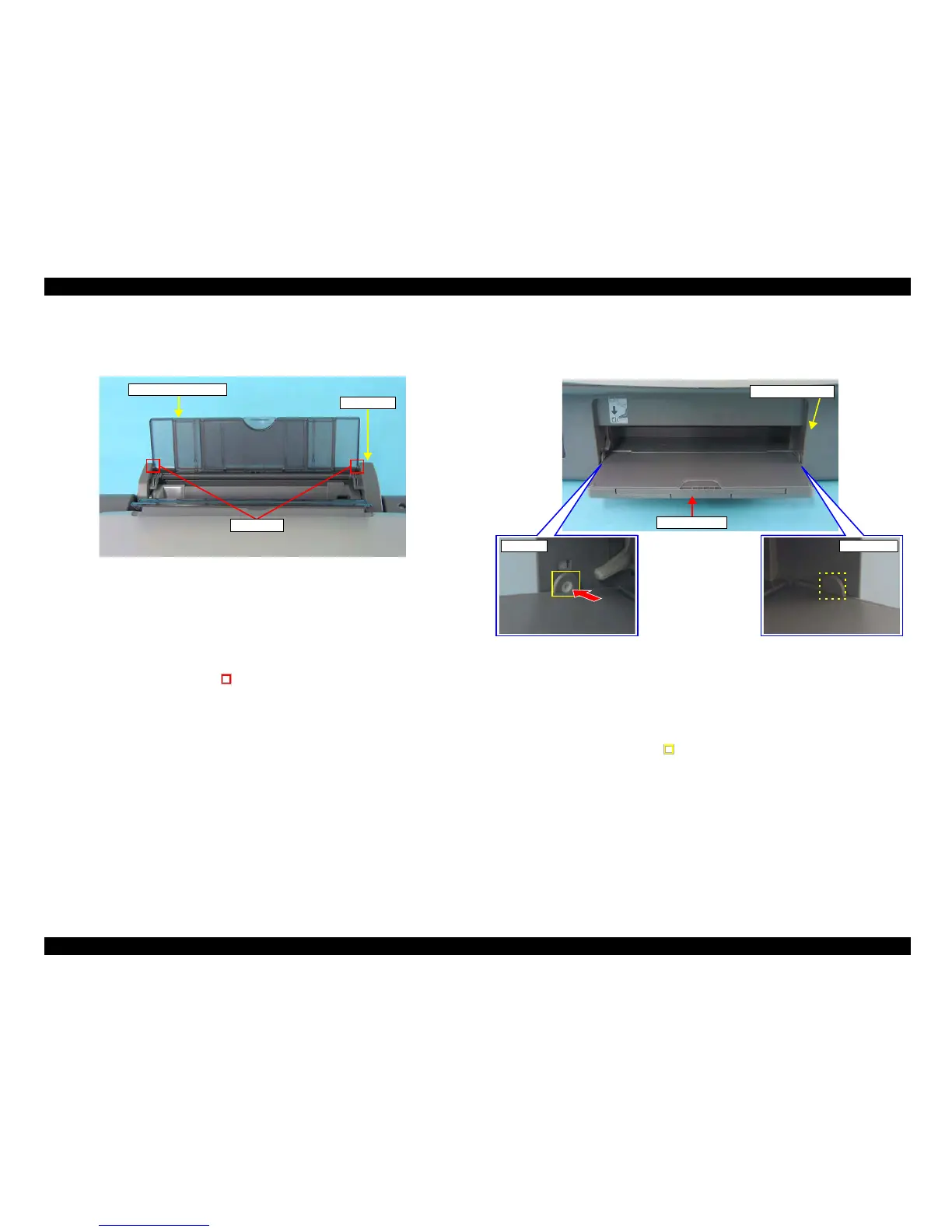

4.4.2 Paper Support Assy.
 External view
Figure 4-3. Removing Paper Support Assy.
 Part/
Unit that should be removed before removing Paper Support Assy.
None
 Removal procedure
1. Release the guide pins (x2, ) that secure the Paper Support Assy, and
remove the Paper Support Assy. from the Housing, Upper.
4.4.3 Stacker Assy.
 External view
Figure 4-4. Removing Stacker Assy.
 Part/Unit
that should be removed before removing Stacker Assy.
None
 Removal procedure
1. Open the Stacker Assy.
2. Release the guide pin (x1, ) that secures the Stacker Assy. with a precision
screwdriver (-), and remove Stacker Assy.
ASF Unit
Paper Support Assy.
Guide Pins
Stacker Assy.
Housing. Lower
Right Side
Left Side
